OP-EW32
OP-EW32
Hex Size (mm)：24,26,27,29,30,32
Torque：12~24 Nm
Free Speed：115 rpm
● Lightweight, ergonomic, and easy to service
● External torque adjustment :
Turn right to increase and left to decrease.
● One button for easily releasing
● Open ratchet style can be customized
● Adjust wrench gear set angle
Application :
● Gas ramps in hobs, Boiler pipes, Bicycle brake cable,
Automobile industry, Pump power cord, Coffee machine pipes.
● External torque adjustment :
Turn right to increase and left to decrease.
● One button for easily releasing
● Open ratchet style can be customized
● Adjust wrench gear set angle
Application :
● Gas ramps in hobs, Boiler pipes, Bicycle brake cable,
Automobile industry, Pump power cord, Coffee machine pipes.
SPECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2)
| MODEL | Hex Szie | MAX. Torque | Free | Air Consumption | Overall Length | Air Inlet | Net Weight | Sound Level | |||
| Spped | |||||||||||
| mm | Nm | rpm | l/min | cfm | mm | inch | P.T | kg | lb | dB(A) | |
| OP-EW32 | 24,26,27,29,30,32 | 12 ~ 24 | 115 | 198 | 7 | 461 | 18.14 | 1/4 | 2.09 | 4 | 87 |
Packing List:
Carton : 6 PCS , N.W .: 12.54 KGS , G.W. : 15.6 KGS , CUFT : 1.1 "

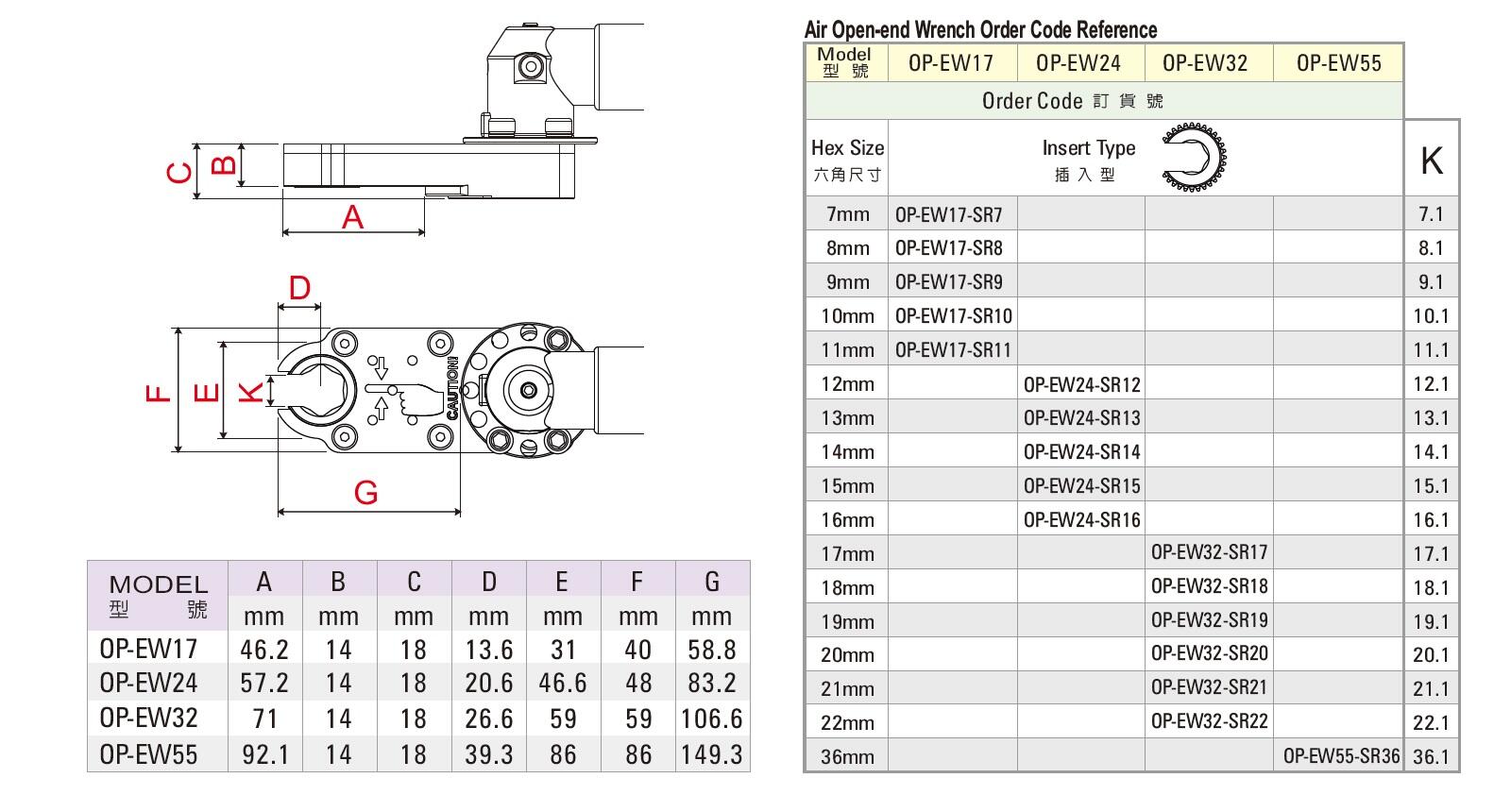

Product specifications and dimensions:
Applications:
Video Application:
