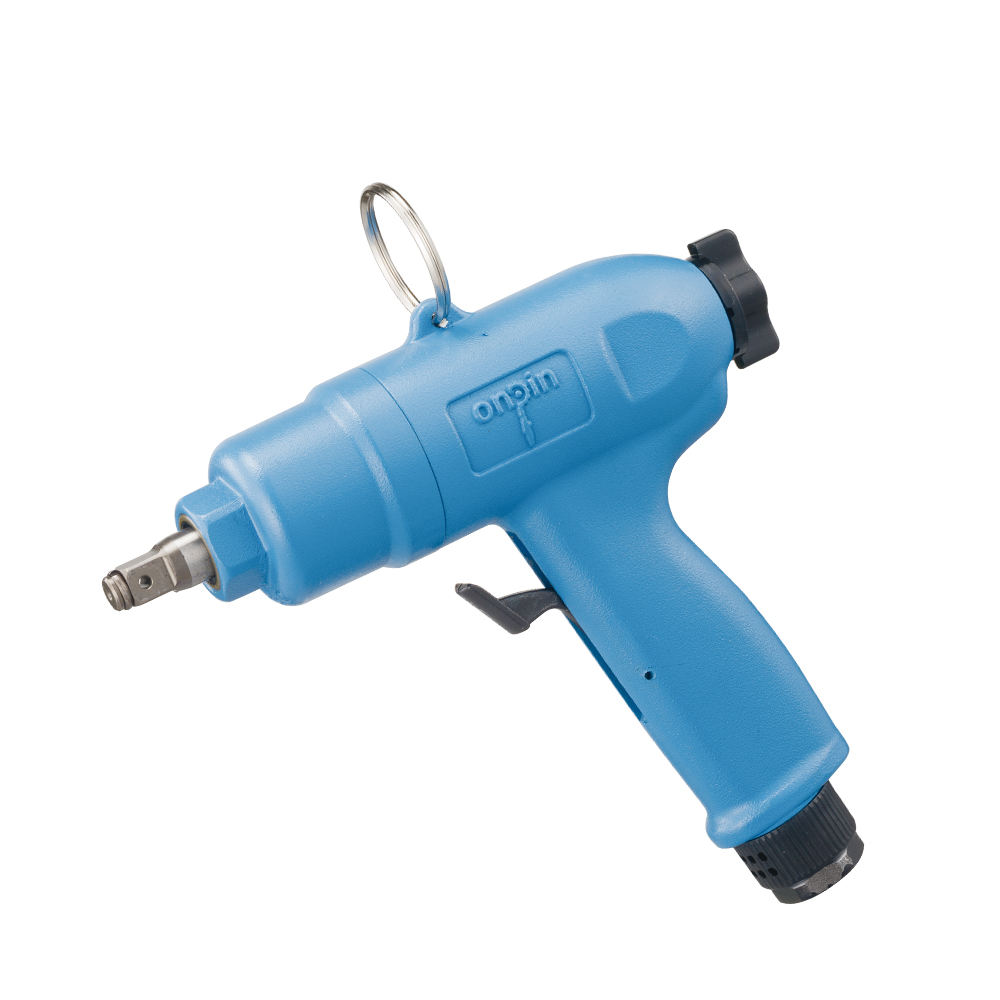

OP-328LB3
● High attack frequency.
● One hand operation,forward & reverse switch.
● Motor set is in alloy steel material.
● 360 degree rotate handle exhaust.
● Hook design can be used for spring balancer. More efficiency and more safe for the workers.
Application:
Especially in heavy-productive industries
(rattan, carpentry, electric, motor, aluminum, and hardware).
● One hand operation,forward & reverse switch.
● Motor set is in alloy steel material.
● 360 degree rotate handle exhaust.
● Hook design can be used for spring balancer. More efficiency and more safe for the workers.
Application:
Especially in heavy-productive industries
(rattan, carpentry, electric, motor, aluminum, and hardware).
SPECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2)
Packing List :
Carton : 10 Pcs / N.W : 12.4 KGS / G.W. : 15.82 KGS / CUFT : 1.1 "
| MODEL | Anvil Size |
Bolt Size Capacity |
Working Torque |
MAX. Torque |
Free Speed |
Air Consumption |
Overall Length |
Air Inlet |
Net Weight |
Sound Level |
|||||
| mm | Nm | ft-lb | Nm | ft-lb | rpm | l/min | cfm | mm | inch | P.T | kg | lb | dB(A) | ||
| OP-328LB3 | 3/8" | M12 | 110 | 81 | 240 | 177 | 8000 | 254 | 9 | 183 | 7.2 | 1/4 | 1.24 | 2.73 | 87 |
Packing List :
Carton : 10 Pcs / N.W : 12.4 KGS / G.W. : 15.82 KGS / CUFT : 1.1 "
