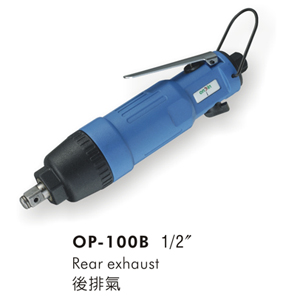

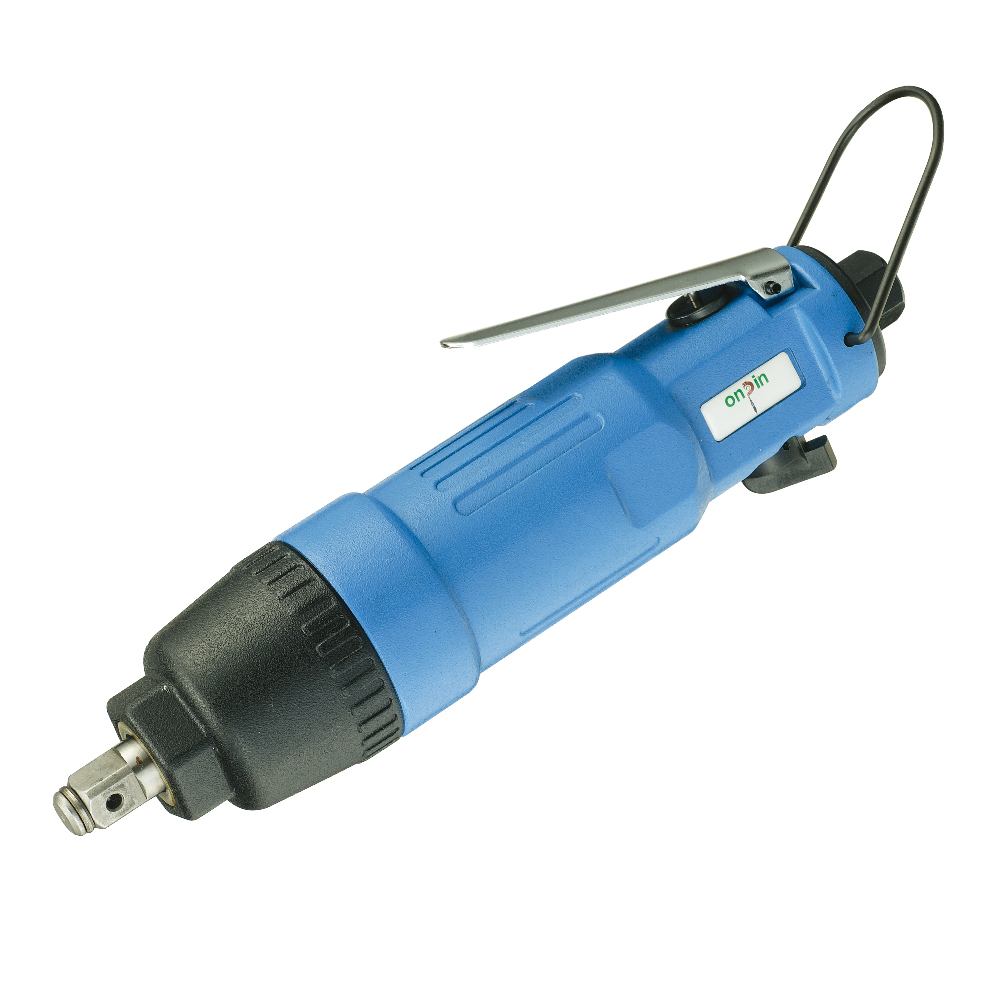

OP-100B
● Forward & Reversible knob .
● Oil in the front cap design for extended long performance life.
● Rear exhaust,to reduce oil stains at work pieces.
Application:
Especially in heavy-productive industries
(rattan, carpentry, electric, motor, aluminum, and hardware).
● Oil in the front cap design for extended long performance life.
● Rear exhaust,to reduce oil stains at work pieces.
Application:
Especially in heavy-productive industries
(rattan, carpentry, electric, motor, aluminum, and hardware).
SPECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2)
Packing List
Carton : 10 pcs / N.W.: 17.1 KGS / G.W.: 20.68 KGS / CUFT: 1.1"
| MODEL | Anvil Size |
Bolt Size Capacity |
Working Torque |
MAX. Torque |
Free Speed |
Air Consumption |
Overall Length |
Air Inlet |
Net Weight |
Sound Level |
|||||
| mm | Nm | ft-lb | Nm | ft-lb | rpm | l/min | cfm | mm | inch | P.T | kg | lb | dB(A) | ||
| OP-100B | 1/2" | M12~M14 | 160 | 118 | 280 | 207 | 5500 | 240 | 8.5 | 260 | 10.24 | 1/4 | 1.7 | 3.75 | 85 |
Packing List
Carton : 10 pcs / N.W.: 17.1 KGS / G.W.: 20.68 KGS / CUFT: 1.1"
