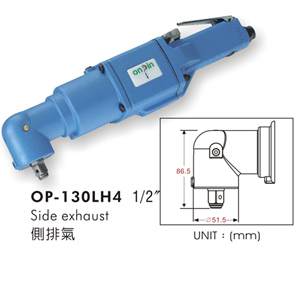

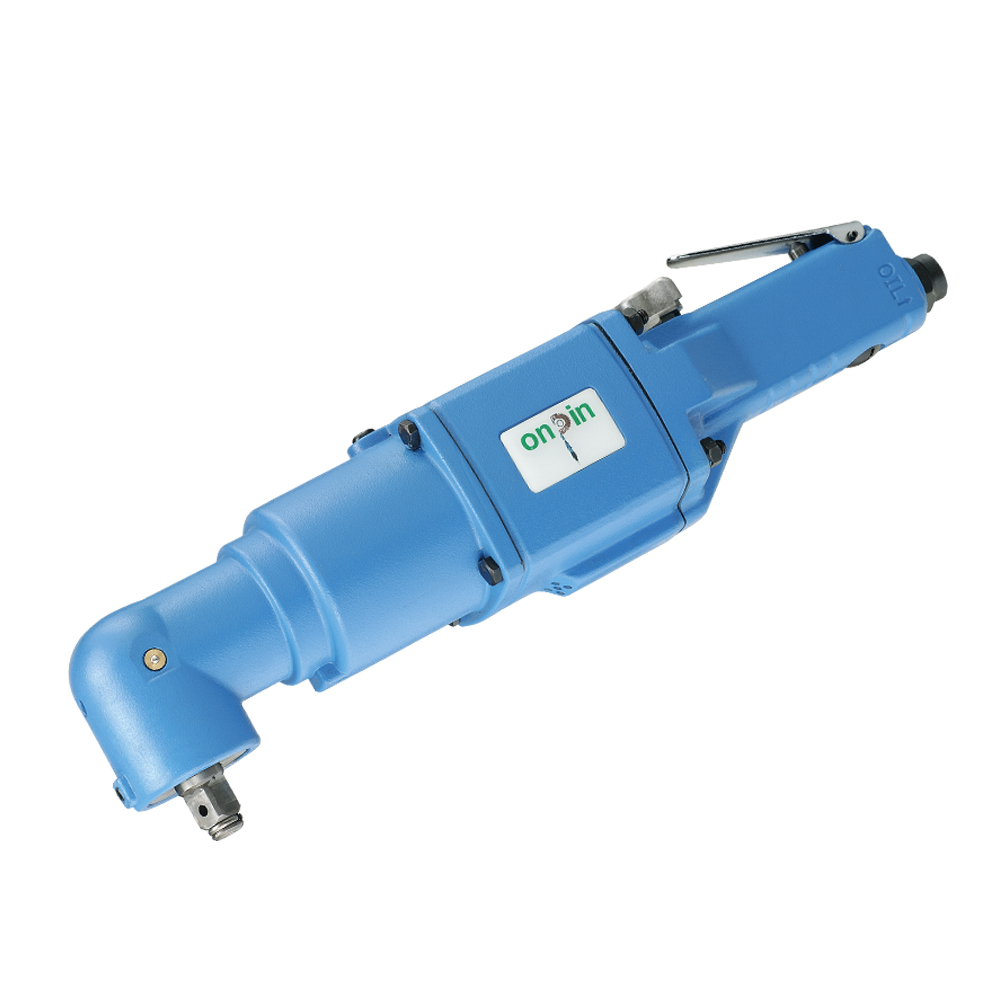

OP-130LH4
OP-130LH4● High torque, low reaction force

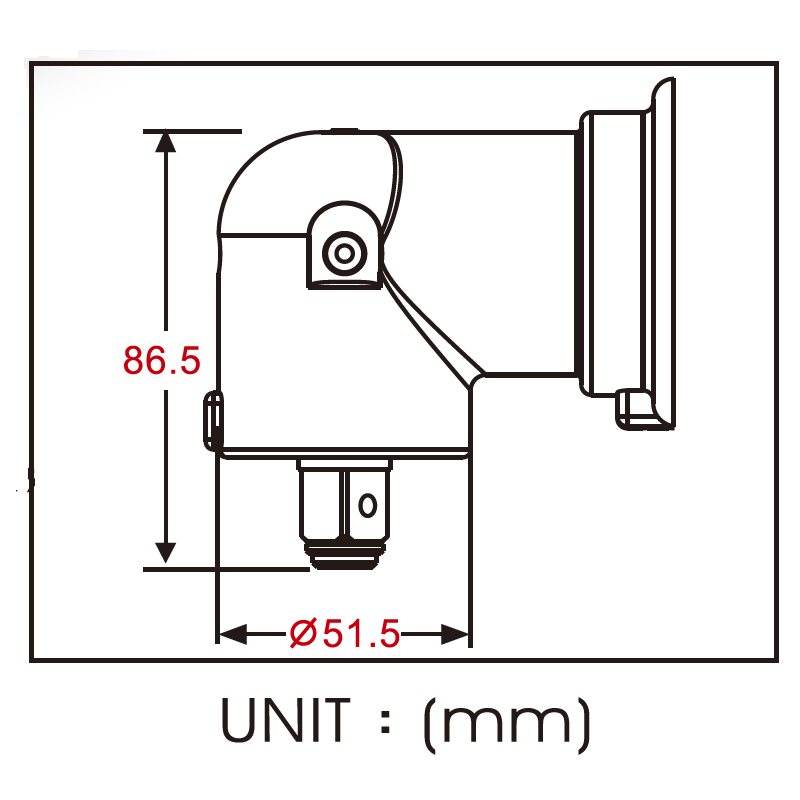

● Angle head design, ideal for confined spaces
● Forward/reverse switch knob design
● Front housing with an oil port for easy maintenance
● Side exhaust
Applications:
Ideal for high-volume industrial production, such as:
automotive engines, bicycles, motors, agricultural machinery maintenance, excavator rotators, hardware industries, etc.
● Angle head design, ideal for confined spaces
● Forward/reverse switch knob design
● Front housing with an oil port for easy maintenance
● Side exhaust
Applications:
Ideal for high-volume industrial production, such as:
automotive engines, bicycles, motors, agricultural machinery maintenance, excavator rotators, hardware industries, etc.
SPECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2)
Packing List
Carton : 4 pcs / N.W.: 19.9 KGS / G.W.: 22.08 KGS / CUFT: 0.8"
| MODEL | Bolt Size Capacity |
Working Torque |
MAX. Torque |
Free Speed |
Air Consumption |
Overall Length |
Air Inlet |
Net Weight |
Sound Level |
|||||
| mm | Nm | ft-lb | Nm | ft-lb | rpm | l/min | cfm | mm | inch | P.T | kg | lb | dB(A) | |
| OP-130LH4 | M14~M16 | 220 | 162 | 270 | 200 | 4000 | 283 | 10 | 375 | 14.76 | 1/4 | 5 | 11.02 | 96 |
Packing List
Carton : 4 pcs / N.W.: 19.9 KGS / G.W.: 22.08 KGS / CUFT: 0.8"
