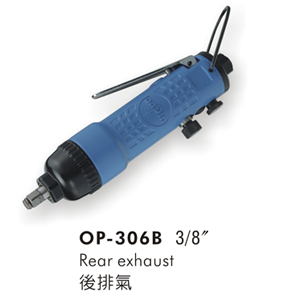

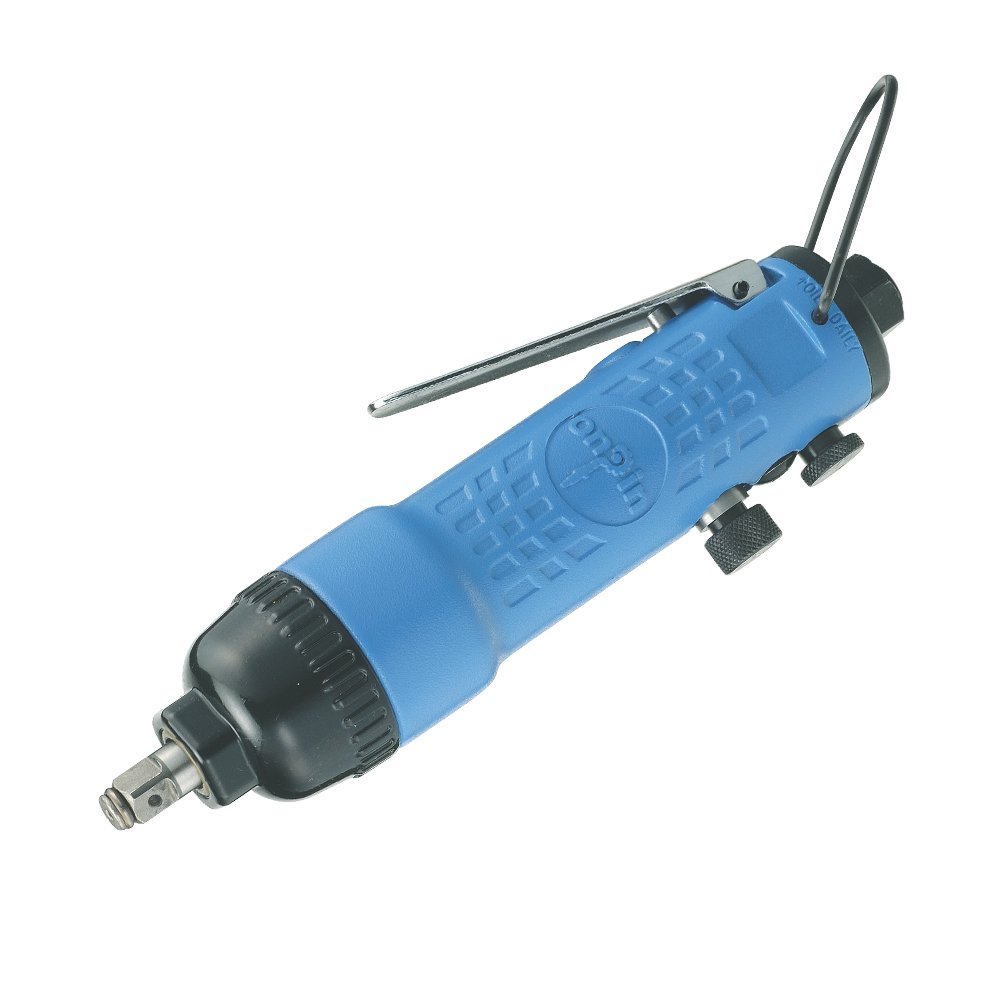

OP-306B
● High attack frequency.
● Low counteraction.
● One hand operation forward and reverse
● reverse button has self locking function
● oil-in-the-front cap design for extended long performance life
Application:
Especially in heavy-productive industries
(rattan, carpentry, electric, motor, aluminum, and hardware).
● Low counteraction.
● One hand operation forward and reverse
● reverse button has self locking function
● oil-in-the-front cap design for extended long performance life
Application:
Especially in heavy-productive industries
(rattan, carpentry, electric, motor, aluminum, and hardware).
SPECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2)
Packing :
Carton : 20 pcs / N.W. : 20.6 kg / G.W : 24.94 kg / Cuft : 1.1 "
| MODEL | Anvil Size |
Bolt Size Capacity |
Working Torque |
MAX. Torque |
Free Speed |
Air Consumption |
Overall Length |
Air Inlet |
Net Weight |
Sound Level |
|||||
| mm | Nm | ft-lb | Nm | ft-lb | rpm | l/min | cfm | mm | inch | P.T | kg | lb | dB(A) | ||
| OP-306B | 3/8" | M10 | 80 | 59 | 200 | 148 | 8000 | 212 | 7.5 | 225 | 8.86 | 1/4 | 1.07 | 2.36 | 90 |
Packing :
Carton : 20 pcs / N.W. : 20.6 kg / G.W : 24.94 kg / Cuft : 1.1 "
