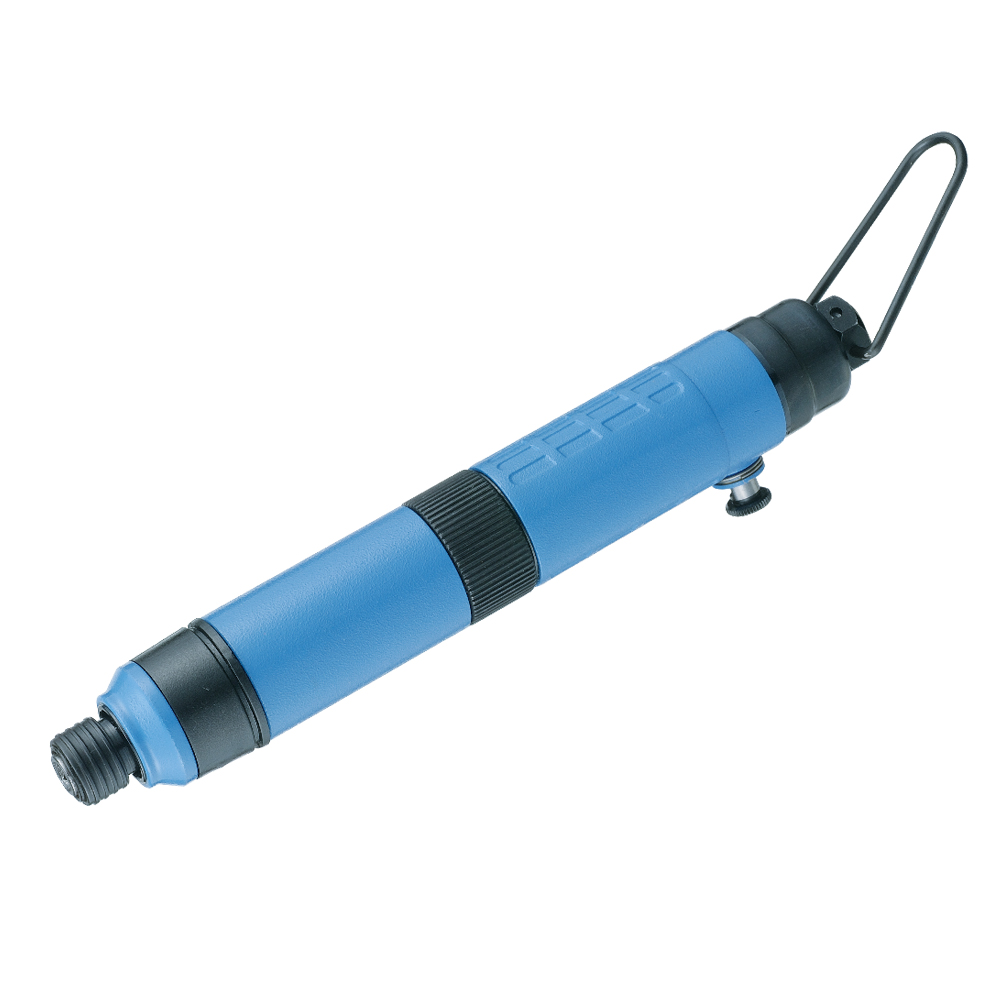

OP-2S2110
● Low air consumption , light weight and energy saving
● Accuracy : ± 3%
● One hand operation forward and reverse
● reverse button has self locking function

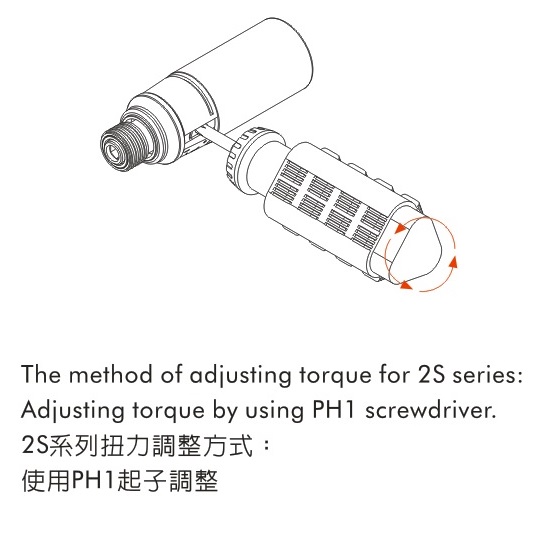

● Adjusting torque by using PH1 scrwdriver.

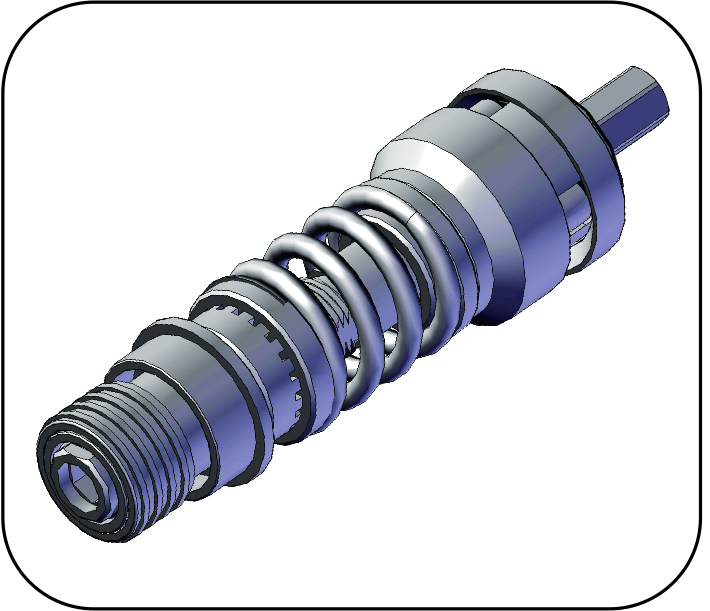

● With Push to start device, all parts stop working automatically while reaching the torque.
Application :
● Apply to release or fasten heavy-precise screws.
● Apply especially to industry assembly lines such as computer, instrument, and electric
● Accuracy : ± 3%
● One hand operation forward and reverse
● reverse button has self locking function
● Adjusting torque by using PH1 scrwdriver.
● With Push to start device, all parts stop working automatically while reaching the torque.
Application :
● Apply to release or fasten heavy-precise screws.
● Apply especially to industry assembly lines such as computer, instrument, and electric
SPECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2)
Packing List:
Carton : 20 Pcs / N.W.: 14.2 KGS / G.W.: 19.79 KGS / Cuft : 1.1"
| MODEL | Screw Size Capacity |
MAX. Torque |
Free Speed |
Air Consumption |
Overall Length |
Air Inlet |
Net Weight |
Sound Level |
Bits Type |
|||
| mm | Nm | rpm | l/min | cfm | mm | inch | P.T | kg | lb | dB(A) | Type | |
| OP-2S2110 | 3.5 | 1.2~2.2 | 1000 | 127 | 4.5 | 229 | 9.01 | 1/4 | 0.71 | 1.56 | 75 | F |
Packing List:
Carton : 20 Pcs / N.W.: 14.2 KGS / G.W.: 19.79 KGS / Cuft : 1.1"
