Blind Rivet Setting Capacity = d
| MODEL | Blind Rivet Setting Capaacity | Traction Power |
Stroke Length |
Air Consumption |
Overall Length |
Air | Weight | |||
| Inlet | ||||||||||
| For Aluminum & Steel | LBS | mm | l/min | cfm | mm | inch | P.T | kg | lb | |

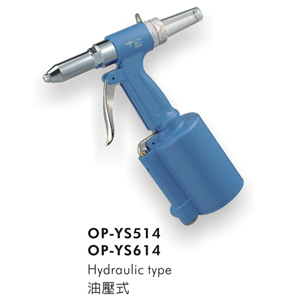

| OP-YS514 | 2.4, 3.2, 4, 4.8, 3/32",1/8",5/32",3/16" |
2680 | 14 | 170 | 6 | 230 | 9.05 | 1/4 | 1.7 | 3.75 |
| OP-YS614 | 2.4, 3.2, 4, 4.8, 5.6, 6, 6.4 3/32",1/8",5/32",3/16",7/32",1/4" |
4166 | 19 | 99 | 3.5 | 250 | 9.84 | 1/4 | 2.2 | 4.85 |
