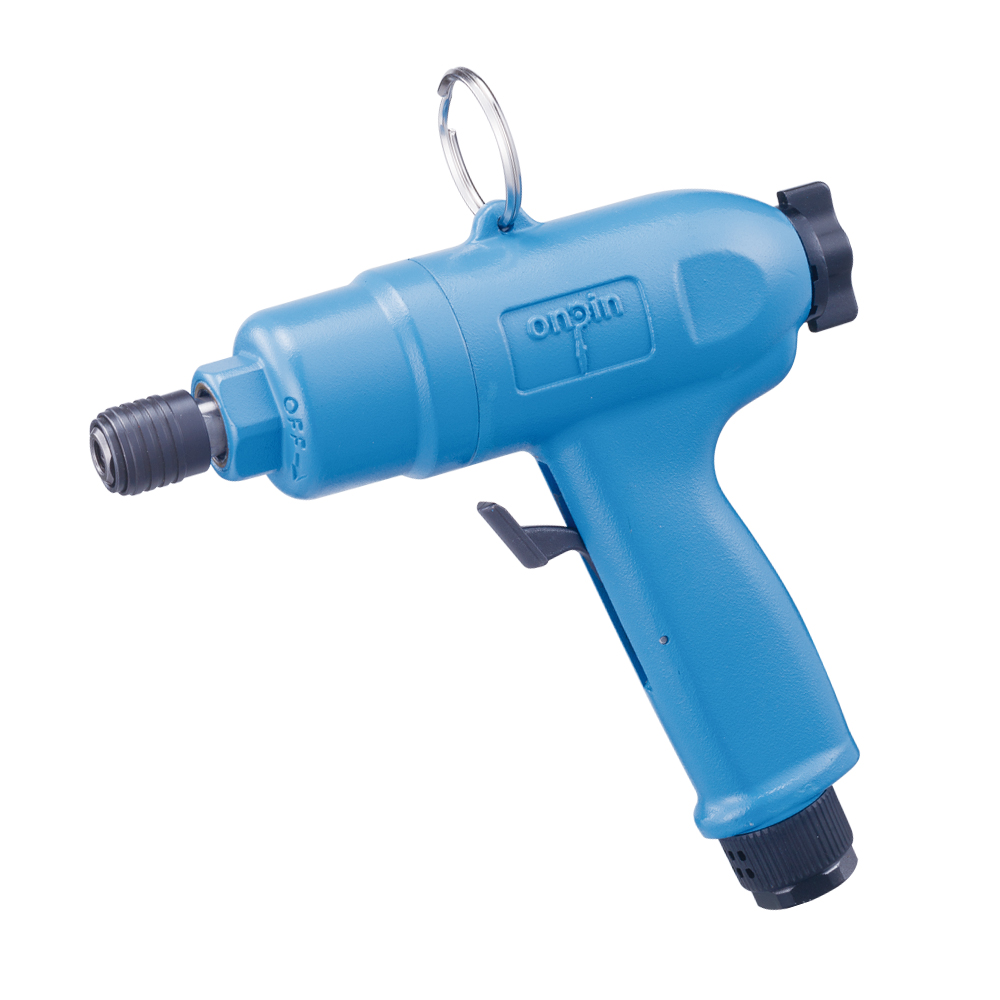

OP-328LQ , OP-328LF
● High attack frequency.
● One hand operation,forward & reverse switch.
● Motor set is in alloy steel material.
● 360 degree rotate handle exhaust.
● Hook design can be used for spring balancer. More efficiency and more safe for the workers.
Application:
Especially in heavy-productive industries
(rattan, carpentry, electric, motor, aluminum, and hardware).
● One hand operation,forward & reverse switch.
● Motor set is in alloy steel material.
● 360 degree rotate handle exhaust.
● Hook design can be used for spring balancer. More efficiency and more safe for the workers.
Application:
Especially in heavy-productive industries
(rattan, carpentry, electric, motor, aluminum, and hardware).
SPECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2)
Packing List :
Carton : 10 Pcs / N.W : 13.7 KGS / G.W. : 16.84 KGS / CUFT : 1.1 "
| MODEL | Screw Size Capacity |
Working Torque |
MAX. Torque |
Free Speed |
Air Consumption |
Overall Length |
Air Inlet |
Net Weight |
Sound Level |
Bits Type |
||||||
| mm | Nm | ft-lb | Nm | ft-lb | rpm | l/min | cfm | mm | inch | P.T | kg | lb | dB(A) | Type | ||
| OP-310LQ | 6~8 | 60 | 44 | 240 | 177 | 7700 | 240 | 8.5 | 195 | 7.68 | 1/4 | 1.38 | 3.04 | 93 | Q | |
| OP-310LF | 6~8 | 60 | 44 | 240 | 177 | 7700 | 240 | 8.5 | 195 | 7.68 | 1/4 | 1.38 | 3.04 | 93 | F | |
Carton : 10 Pcs / N.W : 13.7 KGS / G.W. : 16.84 KGS / CUFT : 1.1 "
