OP-101K

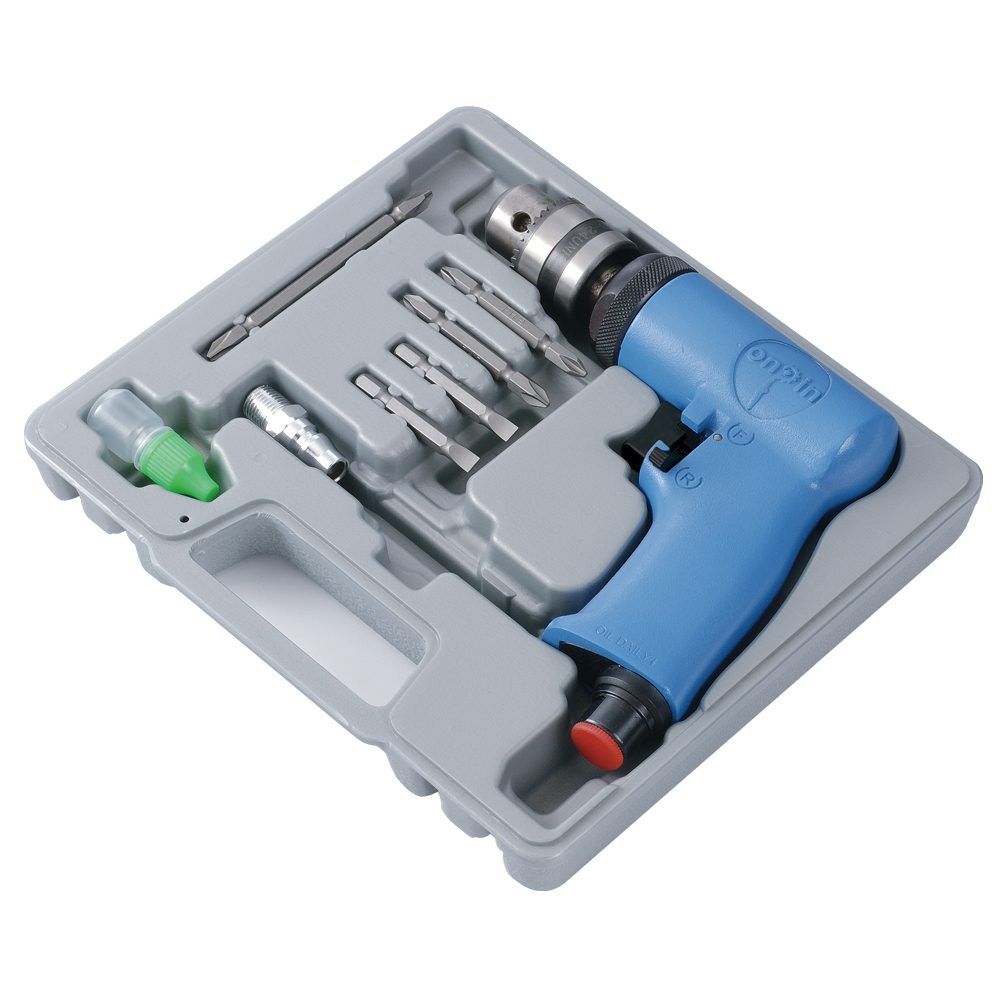

9PCS 3/8" Air Drill Kit
●1PC 3/8" Air Drill (OP-101)
●1PC Phillips: PH2 x 100mm
●2PCS Phillips: PH2 x 65mm
●2PCS Slotted: 6mm x 50mm
●1PC 1/4" PT Air Quick Coupler (JAPANESE STYLE)
●1PC Oil pot
●1PC Blow case
●1PC 3/8" Air Drill (OP-101)
●1PC Phillips: PH2 x 100mm
●2PCS Phillips: PH2 x 65mm
●2PCS Slotted: 6mm x 50mm
●1PC 1/4" PT Air Quick Coupler (JAPANESE STYLE)
●1PC Oil pot
●1PC Blow case
SPECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2)
| MODEL | Chuck Size |
Stall Torque |
Free Speed |
Air Consumption |
Overall Length |
Air Inlet |
Net Weight |
Reversible | Sound Level |
|||||
| mm | inch | Nm | ft-lb | rpm | l/min | cfm | mm | inch | P.T | kg | lb | - | dB(A) | |
| OP-101 | 10 | 3/8 | 2.1 | 1.5 | 2500 | 226 | 8 | 185 | 7.28 | 1/4 | 1.07 | 2.36 | O | 88 |
Packing List
Carton : 10 Set / N.W. : 10.46 KGS / G.W. : 15.6 KGS / CUFT : 1.2"
