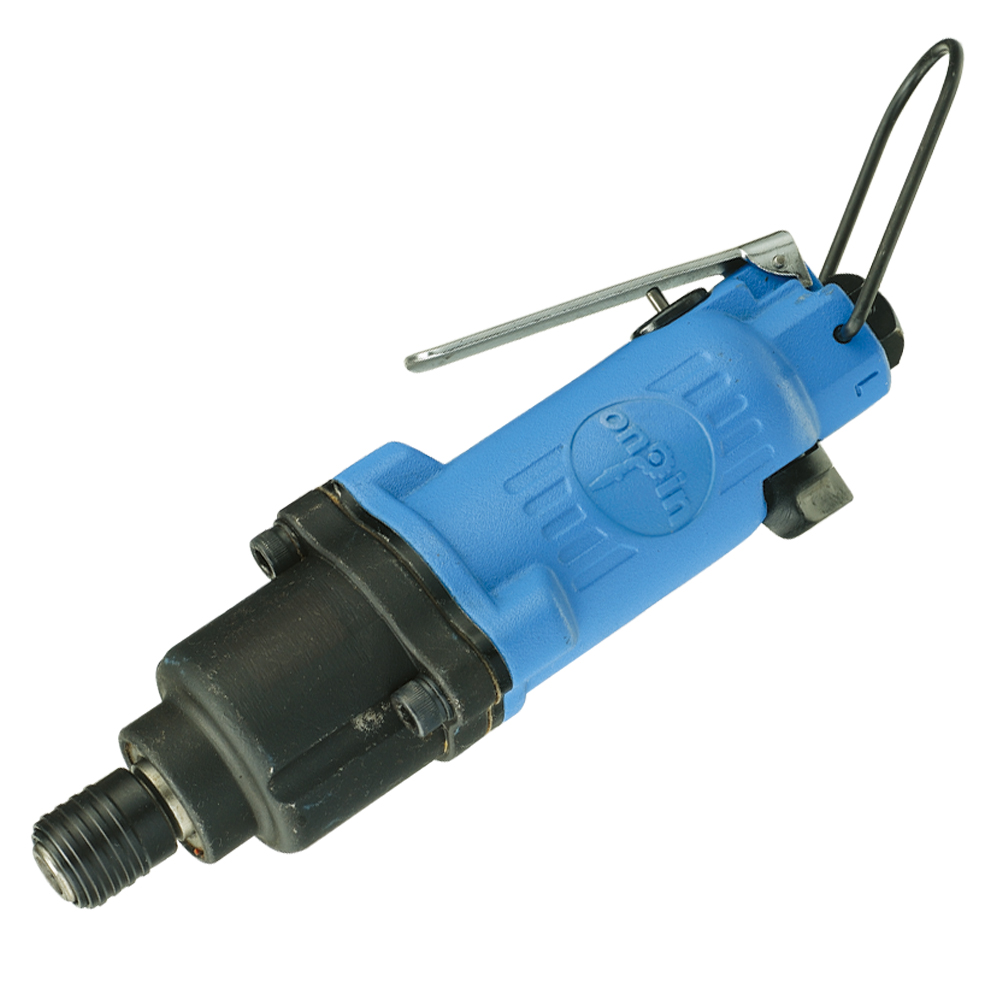

OP-310DAQ,OP-310DA
● Forward & Reversible knob.

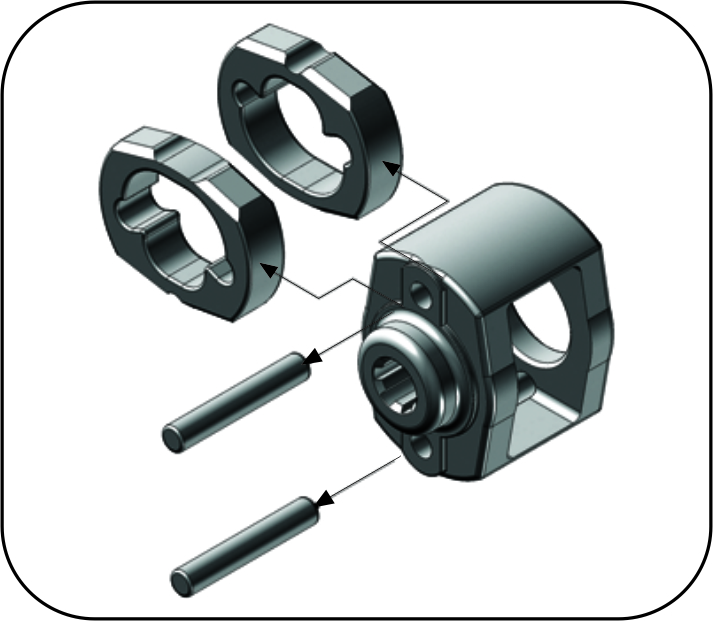

● Motor set is in alloy steel material.
● 2 step push start trigger
● Anvil have 2 different type Q & F
● The front cap & the body are fixed by screws, suitable for long working time,and not easy loose the front cap.
Application:
Apply to heavy-productive assembly line of car and motor.
● Motor set is in alloy steel material.
● 2 step push start trigger
● Anvil have 2 different type Q & F
● The front cap & the body are fixed by screws, suitable for long working time,and not easy loose the front cap.
Application:
Apply to heavy-productive assembly line of car and motor.
SPECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2)
|
MODEL |
Screw Size Capacity |
Working |
MAX. |
Free |
Air |
Overall |
Air |
Net |
Sound |
Bits Type |
|||||
|
Speed |
|||||||||||||||
|
mm |
Nm |
ft-lb |
Nm |
ft-lb |
rpm |
l/min |
cfm |
mm |
inch |
P.T |
kg |
lb |
dB(A) |
Type | |
|
OP-310DA |
8 |
68 |
50 |
300 |
221 |
8000 |
254 |
9 |
200 |
7.87 |
1/4 |
1.2 |
2.65 |
96 |
Q |
|
OP-310DAQ |
8 |
68 |
50 |
300 |
221 |
8000 |
254 |
9 |
200 |
7.87 |
1/4 |
1.2 |
2.65 |
96 |
F |
Packing List :
Carton : 20 Pcs / N.W : 23.5 KGS / G.W. : 28.3 KGS / CUFT : 1.1"
