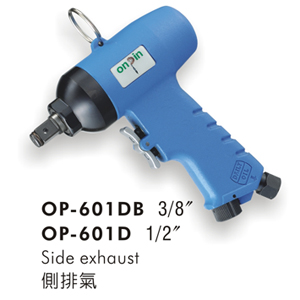

Specifications: OP-601DB / OP-601D: Side exhaust
| MODEL | Bolt Size Capacity |
Working Torgue |
MAX. Torgue |
Free Speed |
Air Consumption |
Overall Length |
Air Inlet |
Net Weight |
Sound Level |
|||||
| mm |
Nm | ft-lb | Nm | ft-lb | rpm | l/min | cfm | mm |
inch | P.T |
kg | lb | dB(A) | |
| OP-601DB | M12 | 120 | 86 | 270 | 200 | 8500 | 240 | 8.5 | 155 | 6.1 | 1/4 | 1.54 | 3.4 | 94 |
| OP-601D | M12 | 120 | 86 | 270 | 200 | 8500 | 240 | 8.5 | 155 | 6.1 | 1/4 | 1.54 | 3.4 | 94 |
