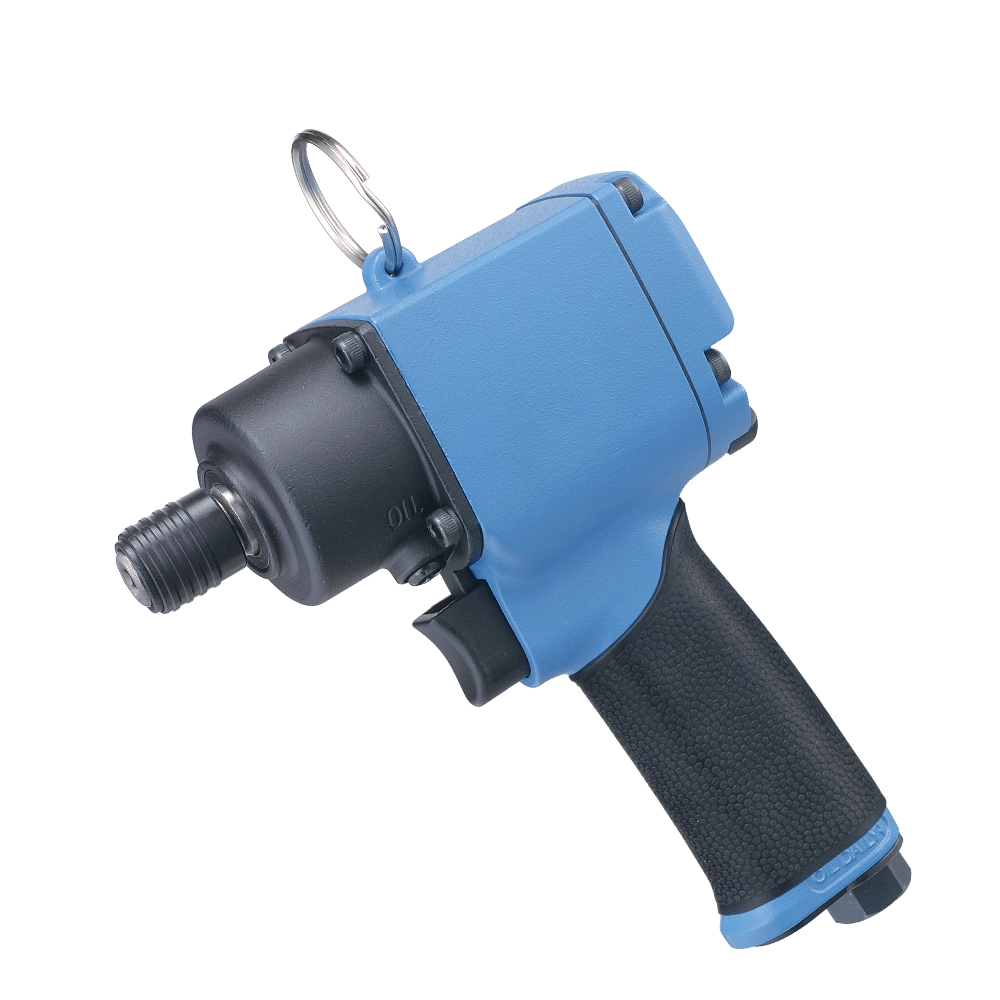

OP-906DAF
● Forward knob: 3 stages of torque power.

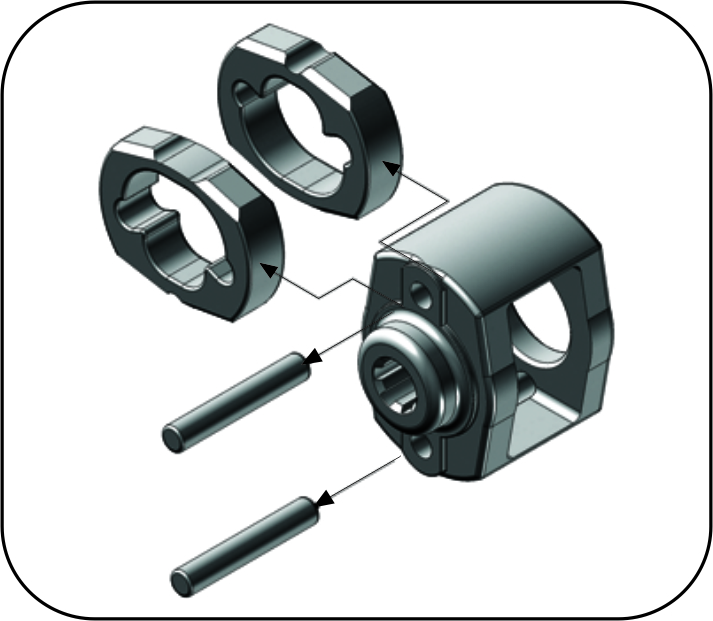

● Twin Ring Type.
● Motor set is in alloy steel material.
● Oil-in-the-front cap design for extended long performance life
● Built-in Comfort Grip
● Handle exhaust, to reduce oil stains at work pieces.
Application:
Apply to heavy-productive assembly line of car and motor.
● Twin Ring Type.
● Motor set is in alloy steel material.
● Oil-in-the-front cap design for extended long performance life
● Built-in Comfort Grip
● Handle exhaust, to reduce oil stains at work pieces.
Application:
Apply to heavy-productive assembly line of car and motor.
SPECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2)
Packing List :
| MODEL | Screw Size Capacity | Working Torque |
MAX. Torque |
Free Speed | Air Consumption |
Overall Length |
Air Inlet |
Net Weight |
Sound Level |
Bits type |
|||||
| mm | Nm | ft-lb | Nm | ft-lb | rpm | l/min | cfm | mm | inch | P.T | kg | lb | dB(A) | type | |
| OP-906DAQ | 8 | 95 | 70 | 400 | 295 | 10000 | 311 | 11 | 144 | 5.66 | 1/4 | 1.6 | 3.52 | 98 | Q |
| OP-906DAF | 8 | 95 | 70 | 400 | 295 | 10000 | 311 | 11 | 144 | 5.66 | 1/4 | 1.6 | 3.52 | 98 | F |
Packing List :
Carton : 12 Pcs / N.W : 19.1 KGS / G.W. : 22.05 KGS / CUFT : 1.1"
