OP-PS6107
● Gear Type
● Nut Size : 3,4,5,6 mm , 3/16",1/4"
● Quick of forward & backward trigger

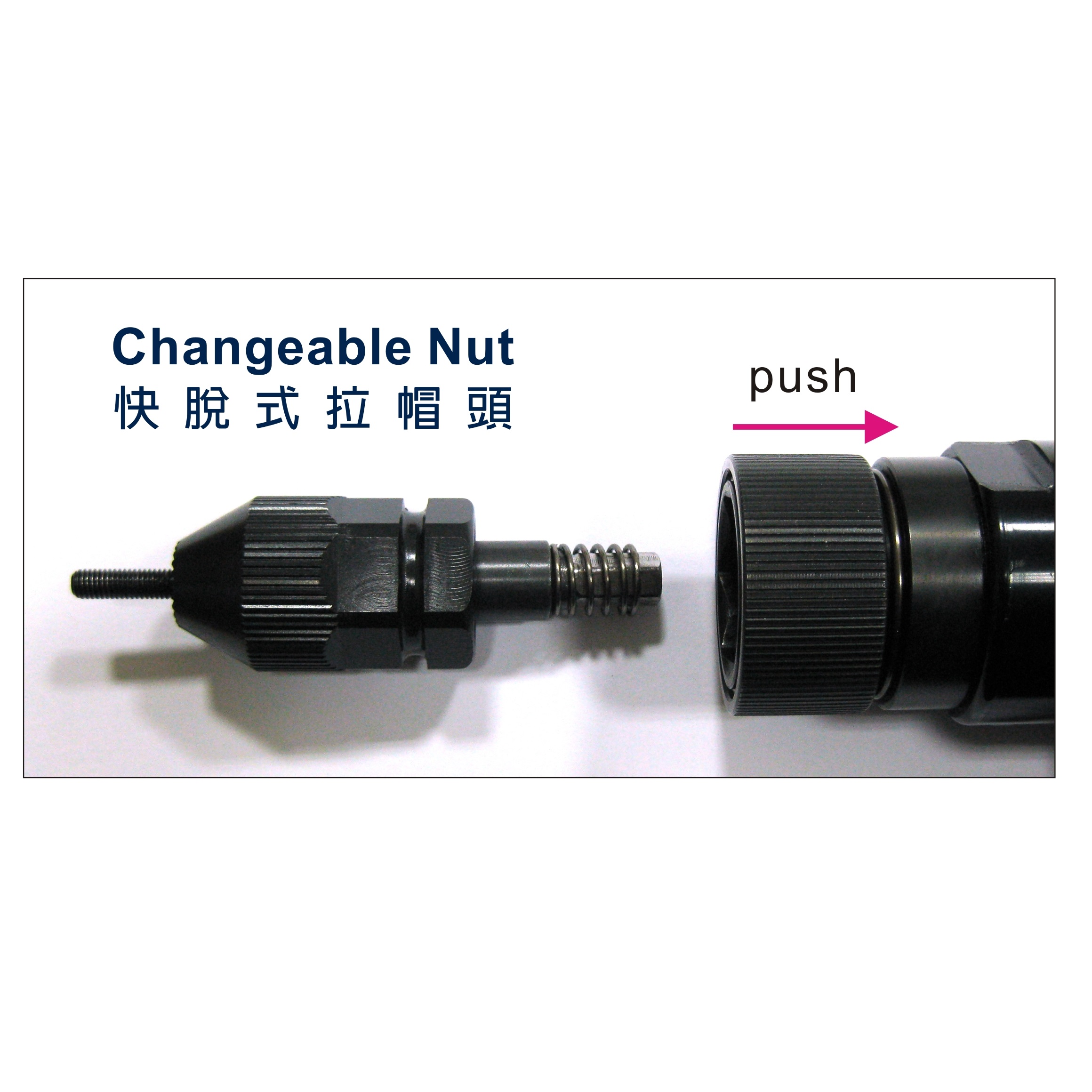

● The type of quick-changing
● Applicable material : Alu. and Steel , can't be use stainless.
● Handle exhaust
● Nut Size : 3,4,5,6 mm , 3/16",1/4"
● Quick of forward & backward trigger
● The type of quick-changing
● Applicable material : Alu. and Steel , can't be use stainless.
● Handle exhaust
SPECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2)
| MODEL | Structure |  |
 |
Free Speed | Air Cousumption | Overall Length | Air Inlet | Net Weight | |||
| mm | mm | rpm | l/min | cfm | mm | inch | P.T | kg | lb | ||
| OP-PS6107 | Gear | 3,4,5,6,3/16",1/4" | 3,4,5,3/16" | 700 | 198 | 7 | 200 | 7.87 | 1/4 | 1.26 | 2.77 |
Nut Tools with order code number reference
| Model | OP-PS6107 |
| Size | Order Code |
| M3 | OP-PS6107-3 |
| M4 | OP-PS6107-4 |
| M5 | OP-PS6107-5 |
| M6 | OP-PS6107-6 |
| 3/16" | OP-PS6107-3/16" |
| 1/4" | OP-PS6107-1/4" |
Packing List:
Carton : 10 Pcs / N.W. : 12.6 KGS / G.W. : 15.42 KGS / CUFT : 1.1"
