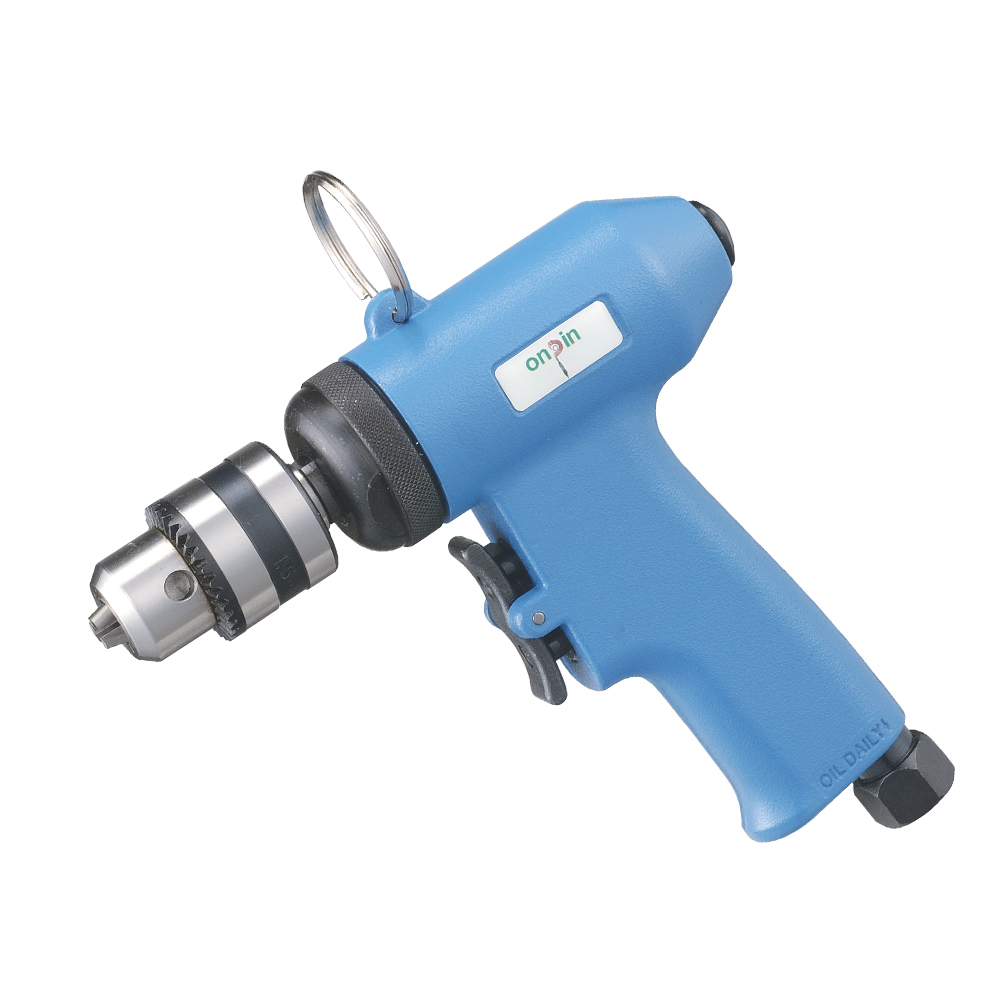

OP-601C
● Gear Type.
● Chuck Size : 3/8" (10mm)
● Low counteraction.
● Handle exhaust
● Light weight , high speed.
● Quick of forward & backward trigger
Application:
●Especially in heavy-productive industries (rattan, carpentry, eletric, motor, aluminum, and hardware).
● Chuck Size : 3/8" (10mm)
● Low counteraction.
● Handle exhaust
● Light weight , high speed.
● Quick of forward & backward trigger
Application:
●Especially in heavy-productive industries (rattan, carpentry, eletric, motor, aluminum, and hardware).
SPECIFICATION( air pressure at 90 PSI、6.2bar、6.3kg/cm2)
| MODEL | Chuck Size | Spindle Thread |
Stall Torque | Free Speed | Air Consumption | Overall Length | Air Inlet | Net Weight | Reversible | Sound Level | ||||||
| mm | inch | Nm | ft-lb | rpm | l/min | cfm | mm | inch | P.T | kg | lb | - | dB(A) | |||
| OP-601C | 10 | 3/8 | 3/8-24UNF | 2.1 | 1.5 | 2500 | 184 | 6.5 | 170 | 6.69 | 1/4 | 1.02 | 2.25 | o | 82 | |
Packing List :
Carton : 10 Pcs / N.W.: 10.2 KGS / G.W.: 12.8 KGS / Cuft : 1.1"
