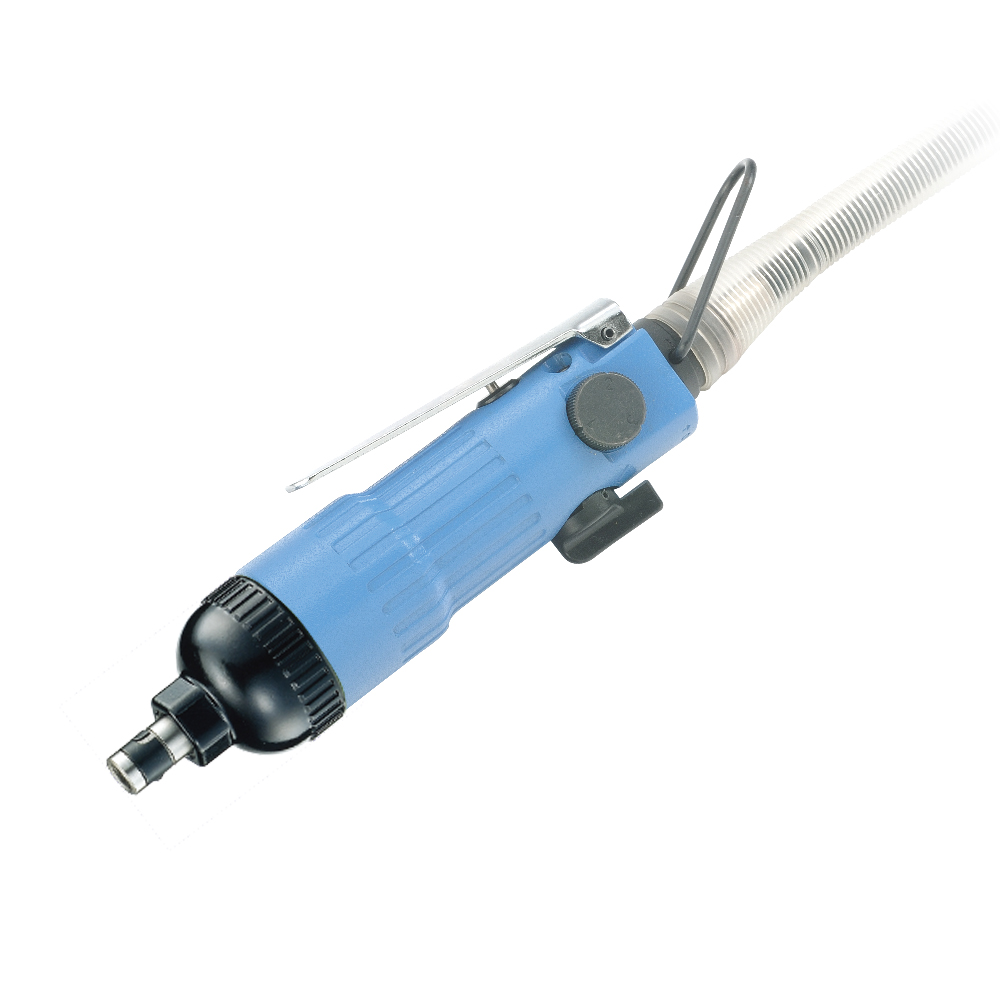

OP-808
● High attack frequency.
● Low counteraction.
● Rear exhaust with muffler
● three different speed choose
Application:
Especially in heavy-productive industries
(rattan, carpentry, electric, motor, aluminum, and hardware).
● Low counteraction.
● Rear exhaust with muffler
● three different speed choose
Application:
Especially in heavy-productive industries
(rattan, carpentry, electric, motor, aluminum, and hardware).
SPECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2)
| MODEL | Screw Size Capacity | Working Torque |
MAX. Torque |
Free Speed | Air Consumption |
Overall Length |
Air Inlet |
Net Weight |
Sound Level |
Bit Type |
|||||
| mm | Nm | ft-lb | Nm | ft-lb | rpm | l/min | cfm | mm | inch | P.T | kg | lb | dB(A) | type | |
| OP-808 | 4~5 | 20 | 15 | 35 | 26 | 10000 | 127 | 4.5 | 190 | 7.48 | 1/4 | 0.76 | 1.68 | 71 | Q |
Packing :
OP-808 Carton : 20 pcs / N.W. : 15.2 kg / G.W : 20.1 kg / Cuft : 2.3 "
