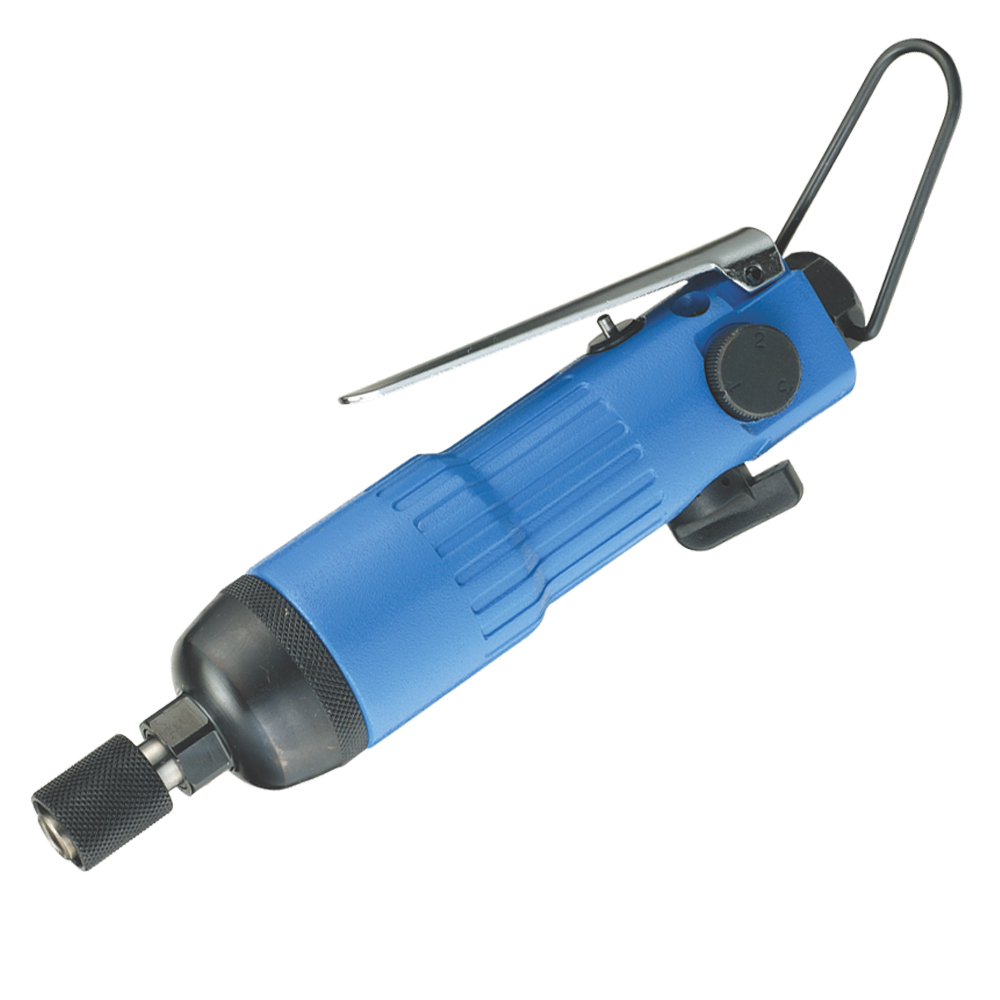

OP-301AH
● High attack frequency.
● Suitable for production line, long service life
● Low counteraction.
● 3 different speed can choose
● Hook design can be used for spring balancer. More efficiency and more safe for the workers.
Application:
●Especially in heavy-productive industries
(rattan, carpentry, electric, motor, aluminum, and hardware).
● Suitable for production line, long service life
● Low counteraction.
● 3 different speed can choose
● Hook design can be used for spring balancer. More efficiency and more safe for the workers.
Application:
●Especially in heavy-productive industries
(rattan, carpentry, electric, motor, aluminum, and hardware).
SPECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2)
| MODEL | Screw Size Capacity | Working Torque |
MAX. Torque |
Free Speed | Air Consumption |
Overall Length |
Air Inlet |
Net Weight |
Sound Level |
BIT Type |
|||||
| mm | Nm | ft-lb | Nm | ft-lb | rpm | l/min | cfm | mm | inch | P.T | kg | lb | dB(A) | ||
| OP-301AH | 4~5 | 25 | 18 | 40 | 30 | 10,000 | 141 | 5 | 200 | 7.87 | 1/4 | 0.79 | 1.74 | 85 | Q |
Packing List
Cartoon : 20 Pcs / N.W.: 16.5 KGS / G.W.: 20 KGS / Cuft : 1.1"
