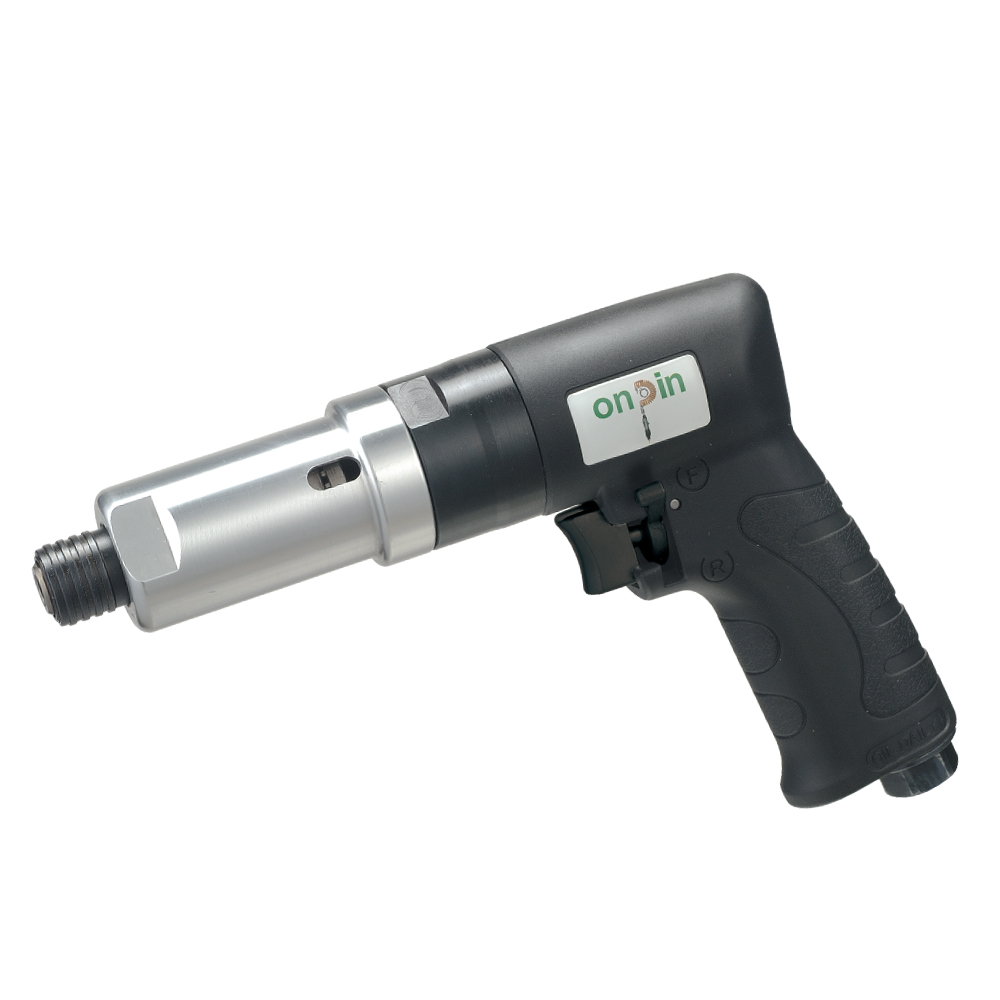

OP-2C8425
● Clutch type with high torque.
● Level power control : Can be adjusted to fit any app;ication
● Handle exhaust design to reduce the noise and dust rebound.

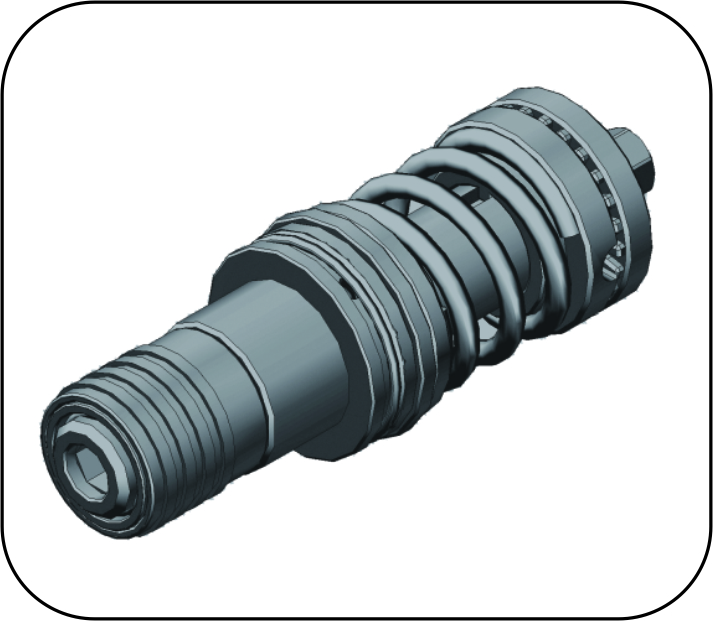

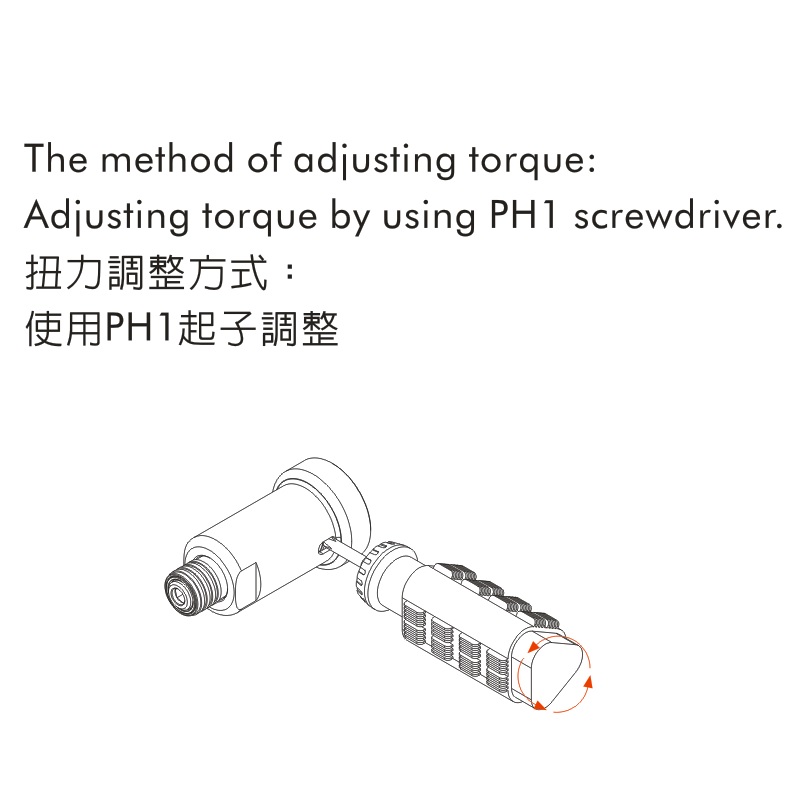

● Using screwdriver to adjust torque. Easy to adjust toque and prevent worker adjust random.
● Composite of material for the tools. Body part and weigh is light. eliminate the cold feeling、Variety of Design for operation of handle..
● Level power control : Can be adjusted to fit any app;ication
● Handle exhaust design to reduce the noise and dust rebound.
● Using screwdriver to adjust torque. Easy to adjust toque and prevent worker adjust random.
● Composite of material for the tools. Body part and weigh is light. eliminate the cold feeling、Variety of Design for operation of handle..
SPECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2)
| MODEL | Screw Size Capacity |
MAX. Torque |
Free Speed |
Air Consumption |
Overall Length |
Air Inlet |
Net Weight |
Sound Level |

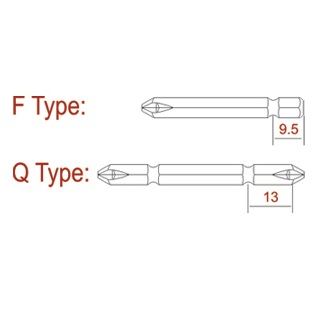

Bits type |
||||
| mm | Nm | ft-lb | rpm | l/min | cfm | mm | inch | P.T | kg | lb | dB(A) | type | |
| OP-2C8425 | 6 | 17 | 12.5 | 2500 | 283 | 10 | 212 | 8.34 | 1/4 | 1.08 | 2.38 | 88 | F |
Packing list:
Carton : 10 pcs / N.W. : 13.22 KGS / G.W. : 14.81 KGS / CUFT : 1.1"
