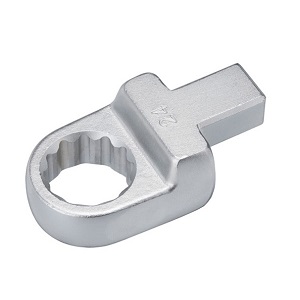

Ring Spanner Head

Ring Spanner Head
Add to inquiry
Share to：





MODEL B W H L L1 L2 Net Weight
mm mm　 mm mm mm mm mm g
OP-T7A 7 9 x 12 24.9 5.0 42.4 17.5 11.5 42
OP-T8A 8 24.9 5.0 42.4 17.5 11.5 42
OP-T9A 9 24.9 5.5 43.9 17.5 11.5  42
OP-T10A 10 26.5 5.5 45.1 17.5 11.5  52
OP-T11A 11 26.5 6.0 45.2 17.5 11.5  50
OP-T12A 12 26.7 6.0 45.5 17.5 11.5 48
OP-T13A 13 27.2 7.0 49.0 20 11.5 60
OP-T14A 14 27.0 7.0 50.0 20 11.5 64
OP-T15A 15 27.0 8.0 50.2 20 11.5 64
OP-T16A 16 27.0 8.0 50.3 20 11.5 62
OP-T17A 17 28.6 9.0 53.9 22 11.5 74
OP-T18A 18 28.6 9.0 53.9 22 11.5 74
OP-T19A 19 38.0 9.0 72.3 22 11.5 68
OP-K13A 13 14 x 18 38.0 11.5 72.3 32  15 200
OP-K14A 14 38.0 11.5 72.3 32 15 200
OP-K15A 15 38.0 11.5 72.5 32 15 194
OP-K16A 16 38.0 12.0 72.5 32 15 204
OP-K17A 17 38.0 12.0 72.5 32 15 198
OP-K18A 18 44.0 13.5 74.5 32 15 234
OP-K19A 19 44.0 13.5 74.5 32 15 230
OP-K21A 21 41.0 14.5 75.6 32 15 236
OP-K22A 22 42.0 16.0 77.0 32 15 250
OP-K24A 24 42.0 16.0 78.0 32 15 254
OP-K26A 26 42.0 16.0 78.0 32 15 240
OP-K27A 27 43.4 17.0 81.5 34 15 280
OP-K29A 29 43.4 19.0 84.5 36 15 306
OP-K30A 30 47.3 19.0 86.7 36 15 328
OP-K32A 32 47.3 19.0 86.7 36 15 312
