OP-306GA

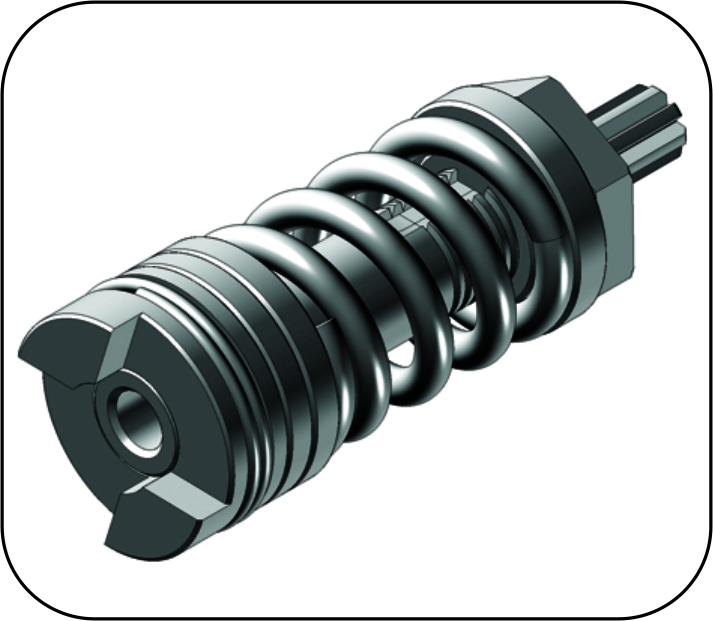

● While reaching the fixed torque, clutch will run automatically and Protect the workpiece from being damaged.

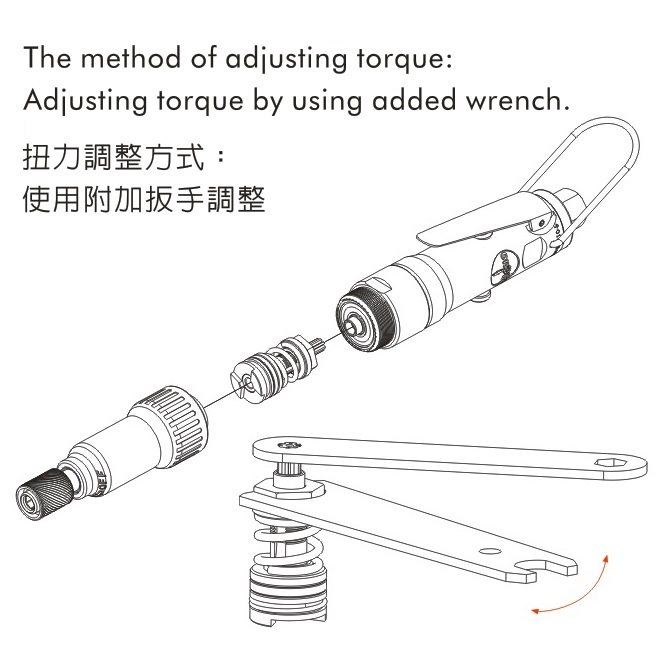

● With torque regulator.
● One hand operation forward and reverse
● Reverse button has self locking function
● Rear exhaust with muffler
● Hook design can be used for spring balancer. More efficiency and more safe for the workers.
Application:
Apply to release or fasten the high-precise screw, especially for outside box setting in industries such as toy, electric, carpentry, and plastic.
● With torque regulator.
● One hand operation forward and reverse
● Reverse button has self locking function
● Rear exhaust with muffler
● Hook design can be used for spring balancer. More efficiency and more safe for the workers.
Application:
Apply to release or fasten the high-precise screw, especially for outside box setting in industries such as toy, electric, carpentry, and plastic.
SPECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2)
| MODEL | Screw Size Capacity | MAX. Torque |
Free | Air Consumption |
Overall Length |
Air Inlet |
Net Weight |
Sound Level |
Bits Type |
||||
| Speed | |||||||||||||
| mm | Nm | ft-lb | rpm | l/min | cfm | mm | inch | P.T | kg | lb | dB(A) | type | |
| OP-306GA | 5 | 7 | 5.1 | 500 | 198 | 7 | 300 | 11.81 | 1/4 | 1.4 | 3.09 | 77 | Q |
Packing list:
Carton : 20 pcs / N.W. : 26.7 KGS / G.W. : 33.4 KGS / CUFT : 2.3"
