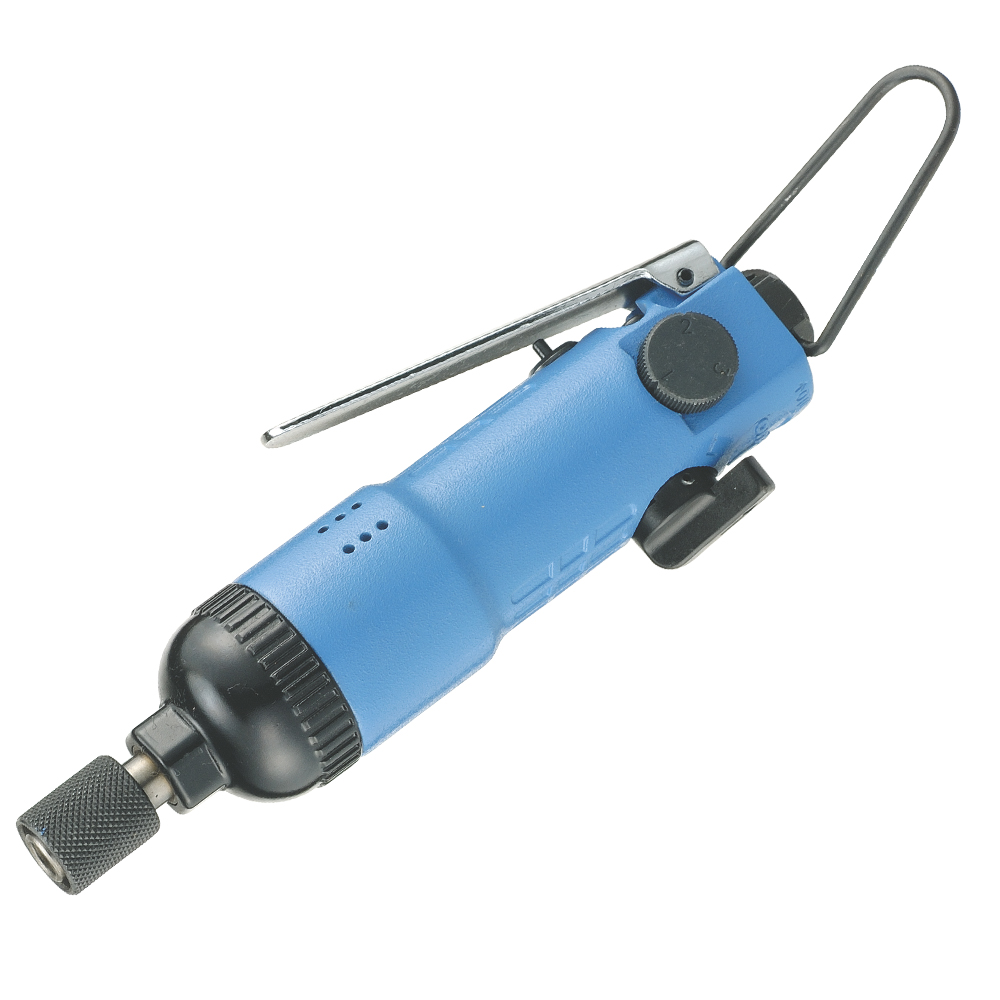

OP-301A1
● High attack frequency.
● Low counteraction.
● Rear exhaust
● Three different speed choose
● Hook design can be used for spring balancer. More efficiency and more safe for the workers.
Application:
Especially in heavy-productive industries
(rattan, carpentry, electric, motor, aluminum, and hardware).
● Low counteraction.
● Rear exhaust
● Three different speed choose
● Hook design can be used for spring balancer. More efficiency and more safe for the workers.
Application:
Especially in heavy-productive industries
(rattan, carpentry, electric, motor, aluminum, and hardware).
SPECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2)
| MODEL | Screw Size Capacity |
Working Torque |
MAX. Torque |
Free Speed |
Air Consumption |
Overall Length |
Air Inlet |
Net Weight |
Sound Level |
Bit Type |
|||||
| mm | Nm | ft-lb | Nm | ft-lb | rpm | l/min | cfm | mm | inch | P.T | kg | lb | dB(A) | type | |
| OP-301A1 | 4~5 | 25 | 18 | 35 | 26 | 12000 | 127 | 4.5 | 185 | 7.28 | 1/4 | 0.7 | 1.54 | 89 | Q |
Packing :
Carton : 20 pcs / N.W. : 13.9 kg / G.W : 18.3 kg / Cuft : 1.1 "
