OP-AN711044

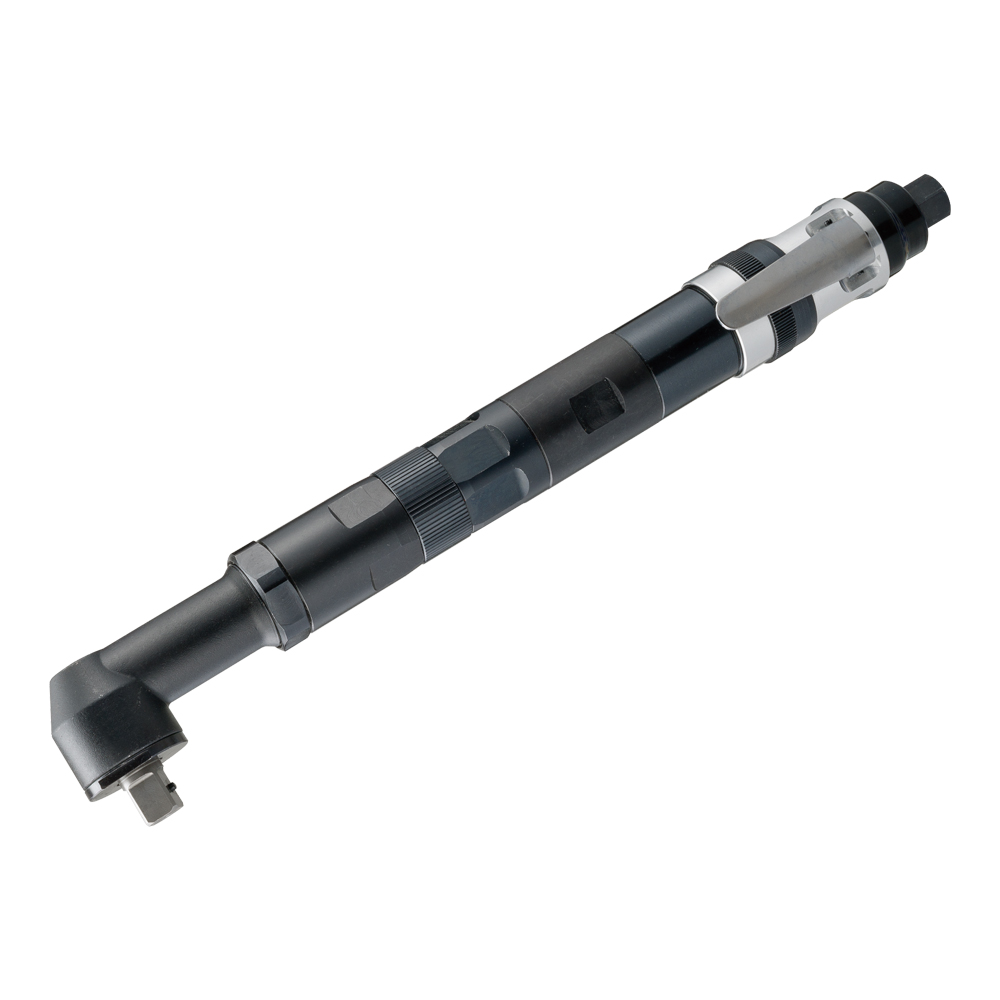

● Air Angle Nutrunner Wrench
● Low air consumption , high torque and energy saving

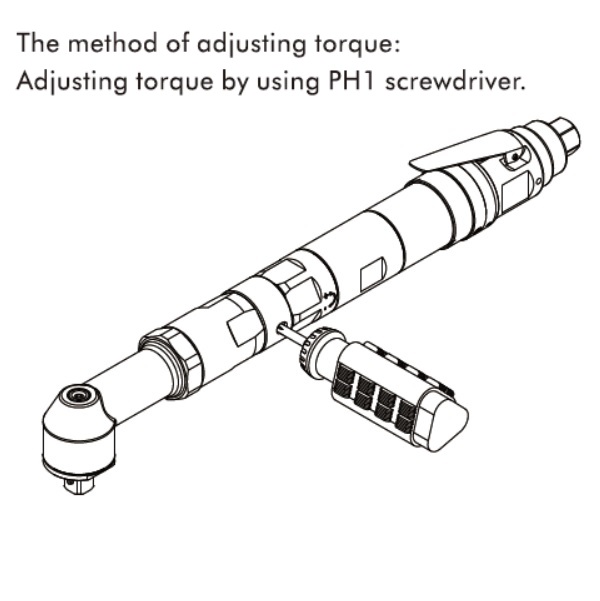

● Adjustable torque design
● With lever to start device, all parts stop working automatically while reaching the torque.

Application :

● Apply to release or fasten heavy nut.
● Apply especially to industry assembly lines such as car、bicycle、electric car
Share to:
SPECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2)
MODEL Bolt Size
Capacity
MAX.
Torque
Free
Speed
Air
Consumption
Overall
Length
Air
Inlet
Net
Weight
Sound
Level
Bolt
Size
mm Nm rpm l/min cfm mm inch P.T  kg lb dB(A) inch
OP-AN711024 M8 17~30 450 240 8.5 402 15.83 1/4 2.21 4.87 90 1/2"

Packing List:
Carton : 6 Pcs / N.W.: 13.2 KGS / G.W.: 17.6 KGS / Cuft : 1.1"
