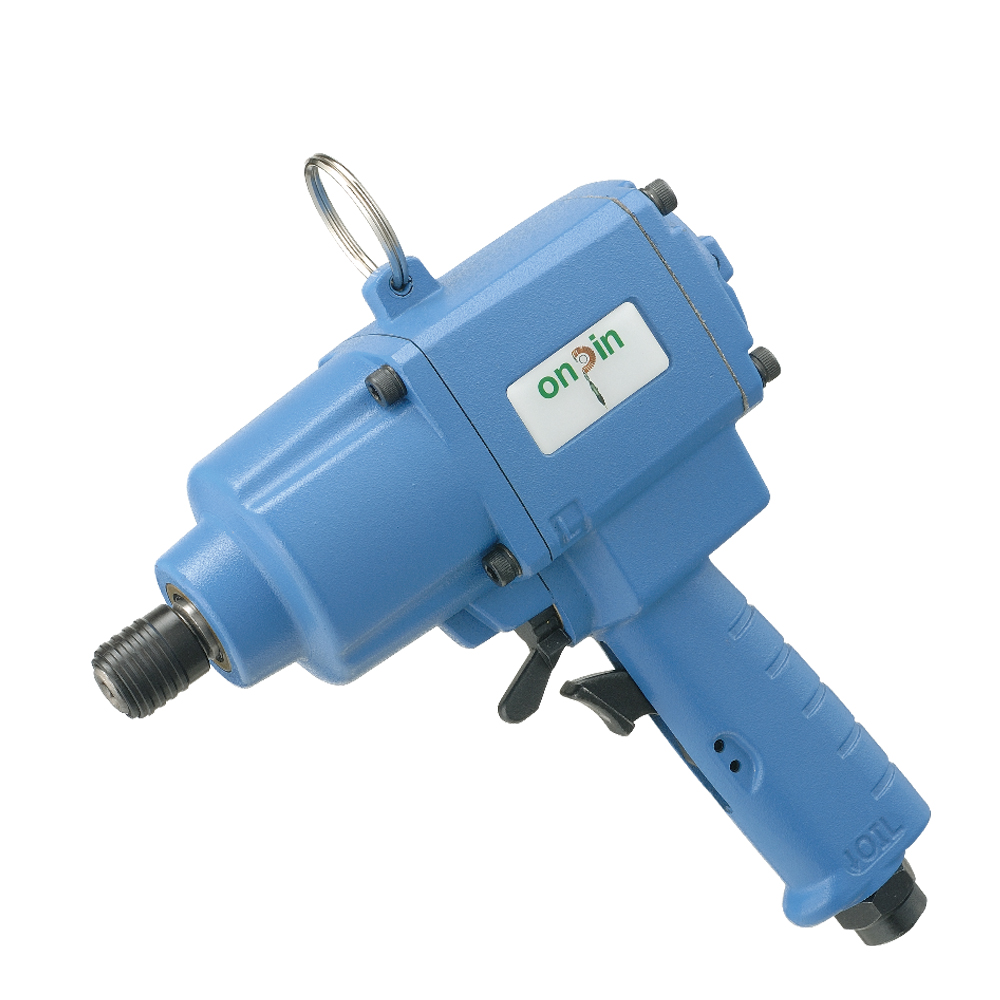

OP-100LA1
● One hand operation,forward & reverse switch.
● Cylinder is in alloy steel material.
● oil-in-the-front cap design for extended long performance life
● The front cap & the body are fixed by screws, suitable for long working time.And not easy loose the front cap.
● Side exhaust
Application:
Especially in heavy-productive industries
(rattan, carpentry, electric, motor, aluminum, and hardware).
● Cylinder is in alloy steel material.
● oil-in-the-front cap design for extended long performance life
● The front cap & the body are fixed by screws, suitable for long working time.And not easy loose the front cap.
● Side exhaust
Application:
Especially in heavy-productive industries
(rattan, carpentry, electric, motor, aluminum, and hardware).
SPECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2)
Packing List :
Carton : 4 Pcs / N.W : 7 KGS / G.W. : 8.69 KGS / CUFT : 0.8"
| MODEL | Screw Size Capacity | Working Torque |
MAX. Torque |
Free | Air Consumption |
Overall Length |
Air Inlet |
Net Weight |
Sound Level |
Bits Type |
|||||
| Speed | |||||||||||||||
| mm | Nm | ft-lb | Nm | ft-lb | rpm | l/min | cfm | mm | inch | P.T | kg | lb | dB(A) | Type | |
| OP-100LA1 | 8 | 95 | 70 | 300 | 221 | 4800 | 240 | 8.5 | 185 | 7 | 1/4 | 2.24 | 4.94 | 92 | Q |
Packing List :
Carton : 4 Pcs / N.W : 7 KGS / G.W. : 8.69 KGS / CUFT : 0.8"
