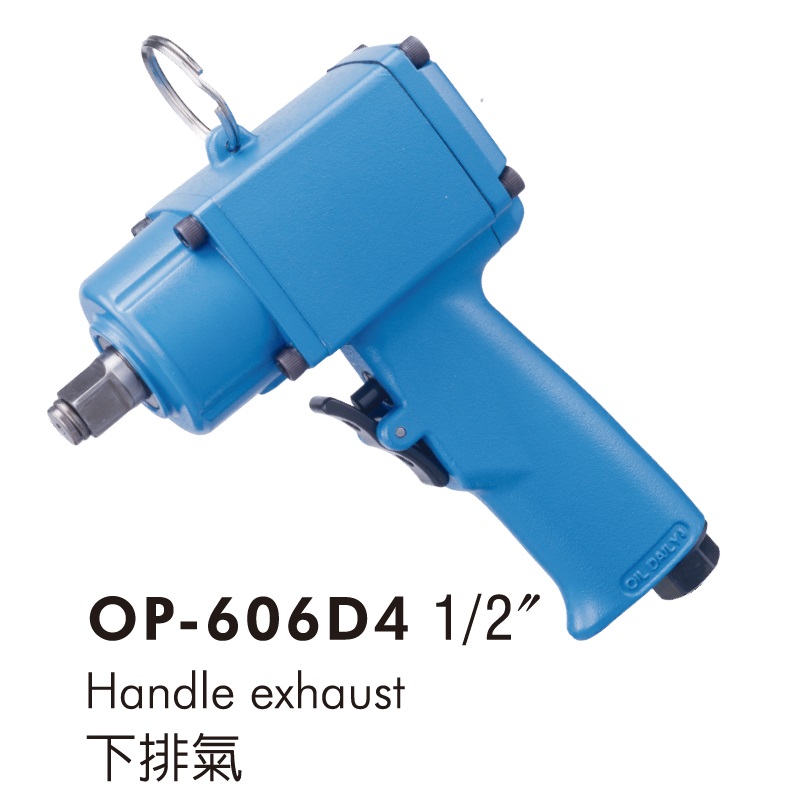

OP-606D4

● Large torque.
● Long Lasting.

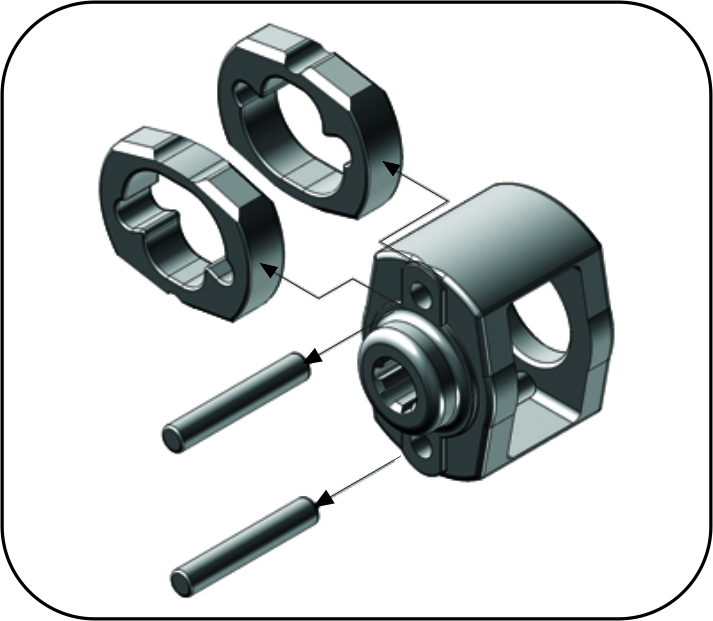

● Less vibration than single ring type.
● Overall Length : 136 mm (5.35 inch)
● Industrial Tools
● quickly forward and reverse trigger design

Application:
Especially in heavy-productive industries rattan, motor.
Share to:
SPECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2 )
MODEL Bolt Size
Capacity
Working
Torque
MAX.
Torque
Free
Speed
Air
Consumption
Overall
Length
Air
Inelt
Net
Weight
Sound
Level
mm Nm ft-lb Nm ft-lb rpm l/min cfm mm inch P.T kg lb dB(A)
OP-606D4 M16 300 221 480 354 9000 296 10.5 136 5.35 1/4 1.47 3.24 98

Packing :

Full Carton : 12 PCS / N.W.: 17.64 KGS / G.W.: 20.5 KGS / CUFT: 1.1 "
