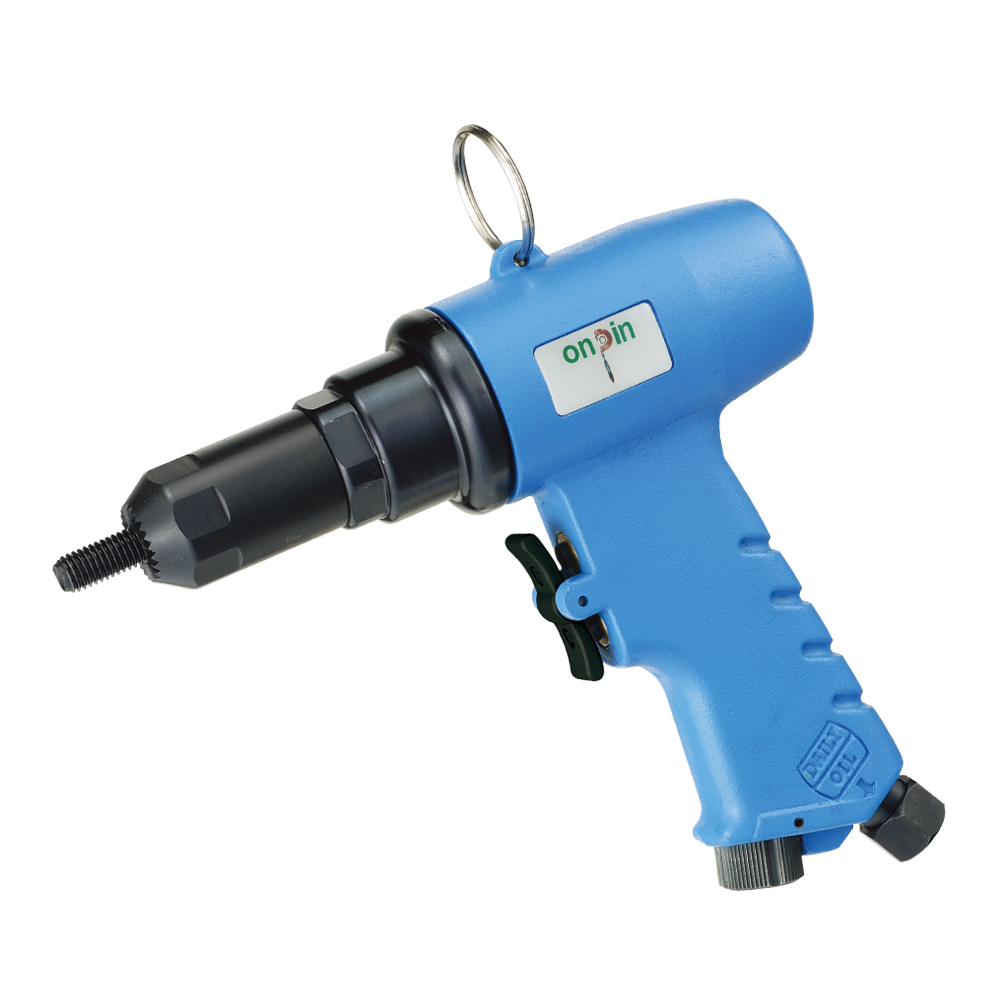

OP-PS10-G51
● Gear Type
● Nut Size : 6,8,10 mm ,1/4",5/16",3/8"
● Quick of forward & backward trigger
● 4-stages of Air Regulator knob
● Applicable material : Alu. and Steel , can't be use stainless.
● Handle exhaust
● Nut Size : 6,8,10 mm ,1/4",5/16",3/8"
● Quick of forward & backward trigger
● 4-stages of Air Regulator knob
● Applicable material : Alu. and Steel , can't be use stainless.
● Handle exhaust
SPECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2)
| MODEL | Structure |  |
 |
Free Speed | Air Cousumption | Overall Length | Air Inlet | Net Weight | |||
| mm | mm | rpm | l/min | cfm | mm | inch | P.T | kg | lb | ||
| OP-PS10-G51 | Gear | 6,8,10,1/4",5/16",3/8" | 6,8,1/4",5/16" | 450 | 226 | 8 | 210 | 8.27 | 1/4 | 1.8 | 3.97 |
Nut Tools with order code number reference
| Model | OP-PS10-G1 |
| Size | Order Code |
| M6 | OP-PS10-G1-6 |
| M8 | OP-PS10-G1-8 |
| M10 | OP-PS10-G1-10 |
| 1/4" | OP-PS10-G1-1/4" |
| 5/16" | OP-PS10-G1-5/16" |
| 3/8" | OP-PS10-G1-3/8" |
Packing List:
Carton : 10 Pcs / N.W. : 17.8 KGS / G.W. : 20.8 KGS / CUFT : 1.7"
