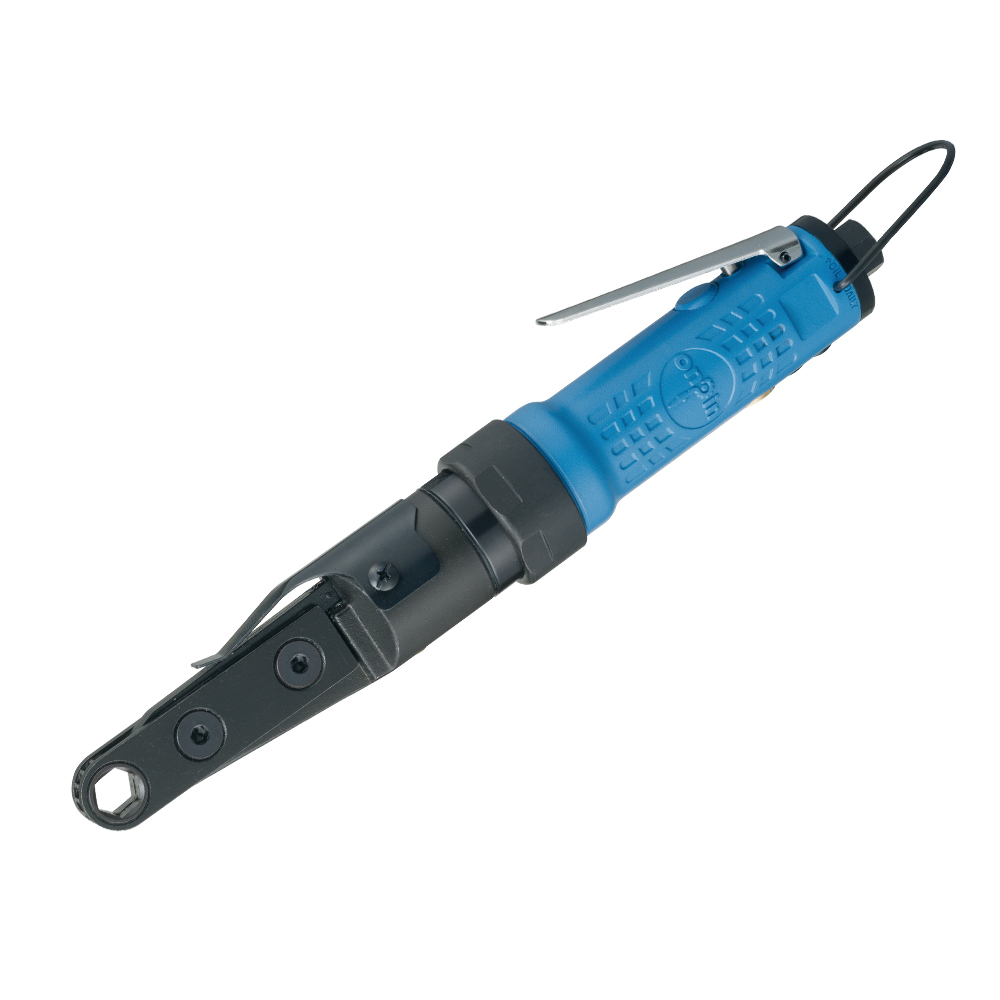

OP-814LS
●The ratchet wrench can be used in narrow working spaces and can fasten bolts and nuts easily. This special tool can be reached tight place that other air tools can not.
●Remove: First , loosen nut by wrench then take nut out with air ratchet.
●Fasten: Push trigger to polisher the nut then lock it with torque wrench
Application :
● Apply to heavy-productive assembly lines such as motor-vehicles, bike and motor.
●Remove: First , loosen nut by wrench then take nut out with air ratchet.
●Fasten: Push trigger to polisher the nut then lock it with torque wrench
Application :
● Apply to heavy-productive assembly lines such as motor-vehicles, bike and motor.
SPECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2 )
| MODEL | Hex Size |
Working Torque |
MAX. Torque |
Free Speed |
Air Consumption |
Overall Length |
Air Inlet |
Net Weight |
Sound Level |
|||||
| mm | Nm | ft-lb | Nm | ft-lb | rpm | l/min | cfm | mm | inch | P.T | kg | lb | dB(A) | |
| OP-814LS | 10,11,12,13,14 (7/16",1/2",9/16") |
15 | 11 | 25 | 18 | 220 | 212 | 7.5 | 332 | 13.07 | 1/4 | 1.92 | 4.23 | 87 |
Packing
Full Carton :10 PCS , N.W.: 19.2 KGS , G.W.: 22.18 KGS , CUFT : 1.4 "
