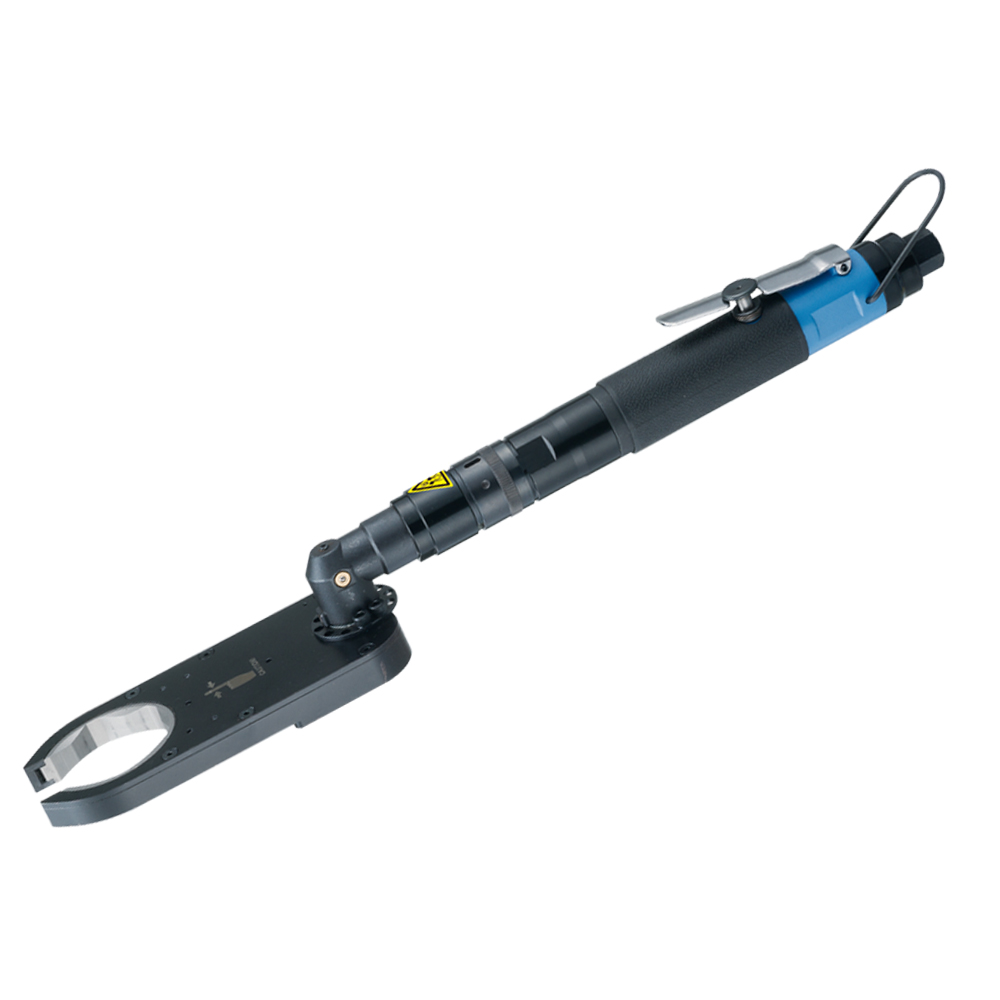

OP-EW55
● Lightweight, ergonomic, and easy to service

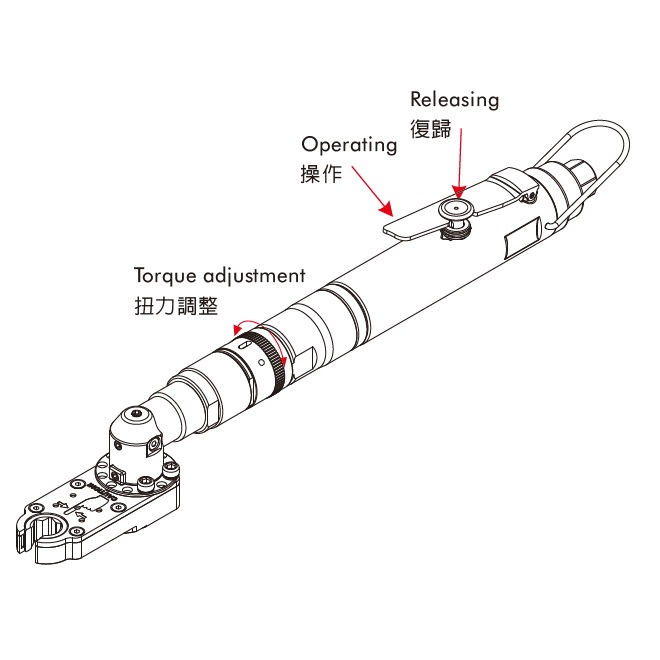

● External torque adjustment :
Turn right to increase and left to decrease.
● One button for easily releasing

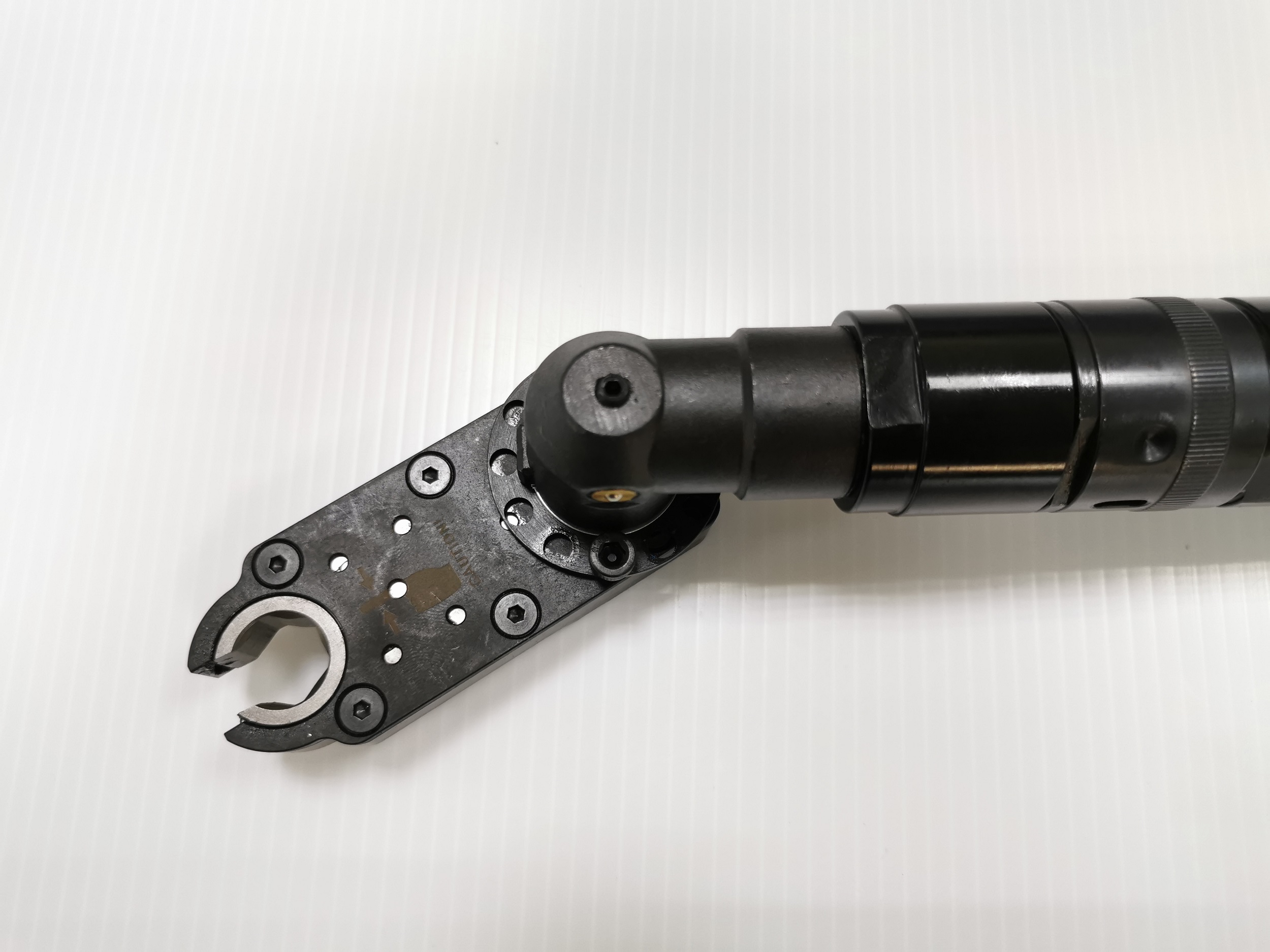

● Open ratchet style can be customized
● Adjust wrench gear set angle
Application :
● Gas ramps in hobs, Boiler pipes, Bicycle brake cable,
Automobile industry, Pump power cord, Coffee machine pipes.
● External torque adjustment :
Turn right to increase and left to decrease.
● One button for easily releasing
● Open ratchet style can be customized
● Adjust wrench gear set angle
Application :
● Gas ramps in hobs, Boiler pipes, Bicycle brake cable,
Automobile industry, Pump power cord, Coffee machine pipes.
SPECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2 )
Packing List:
Carton : 6 PCS , N.W .: 15.12 KGS , G.W. : 18.4 KGS , CUFT : 1.6 "
-5.jpg)
Applications
Video
| MODEL | Hex Szie | MAX. Torque |
Free Spped |
Air Consumption |
Overall Length |
Air Inlet |
Net Weight |
Sound Level |
||||
| mm | Nm | rpm | l/min | cfm | mm | inch | P.T | kg | lb | dB(A) | ||
| OP-EW55 | 36,38,40,41, 46,50,55 |
14 ~ 28 | 100 | 198 | 7 | 504 | 19.84 | 1/4 | 2.52 | 5.55 | 87 | |
Packing List:
Carton : 6 PCS , N.W .: 15.12 KGS , G.W. : 18.4 KGS , CUFT : 1.6 "
