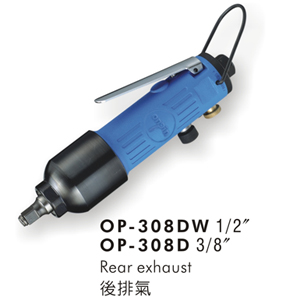

Specifications: OP-308DW / OP-308D: Rear exhaust
| MODEL | Bolt Size Capacity | Working Torque |
MAX. Torque |
Free Speed | Air Consumption |
Overall Length |
Air Inlet |
Net Weight |
Sound Level |
|||||
| mm | Nm | ft-lb | Nm | ft-lb | rpm | l/min | cfm | mm | inch | P.T | kg | lb | dB(A) | |
| OP-308DW |
M12 | 120 | 86 | 200 | 148 | 8100 | 240 | 8.5 | 220 | 8.66 | 1/4 | 1.32 | 2.91 | 85 |
| OP-308D | M12 | 120 | 86 | 200 | 148 | 8100 | 240 | 8.5 | 220 | 8.66 | 1/4 | 1.32 | 2.91 | 85 |
