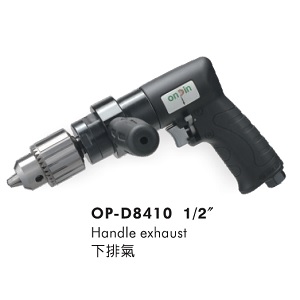

OP-D8410 & OP-D8406
(1).Gear type.
(2).Composite of material Boby. Less weight. eliminate the cold feeling.Variety of Design for operation of handle..
(3).Variable Spped trigger design and easy to press the lever. Pressing switch lever to control the speed.
(4).Handle exhaust design to reduce the noise and dust rebound.
(5). Motor Power : 0.6 HP
(2).Composite of material Boby. Less weight. eliminate the cold feeling.Variety of Design for operation of handle..
(3).Variable Spped trigger design and easy to press the lever. Pressing switch lever to control the speed.
(4).Handle exhaust design to reduce the noise and dust rebound.
(5). Motor Power : 0.6 HP
SPECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2)
| MODEL | Chuck Size | Stall Torque | Free Speed | Air Consumption | Overall Length | Air Inlet | Net Weigh | Reversible | Sound Level | |||||
| mm | inch | Nm | ft-lb | rpm | l/min | cfm | mm | inch | P.T | kg | lb | - | dB(A) | |
| OP-D8410 | 13 | 1/2 | 14.9 | 10.9 | 1000 | 283 | 10 | 230 | 9.05 | 1/4 | 1.62 | 3.57 | O | 88 |
| OP-D8406 | 13 | 1/2 | 22.5 | 16.6 | 660 | 283 | 10 | 230 | 9.05 | 1/4 | 1.62 | 3.57 | O | 88 |
