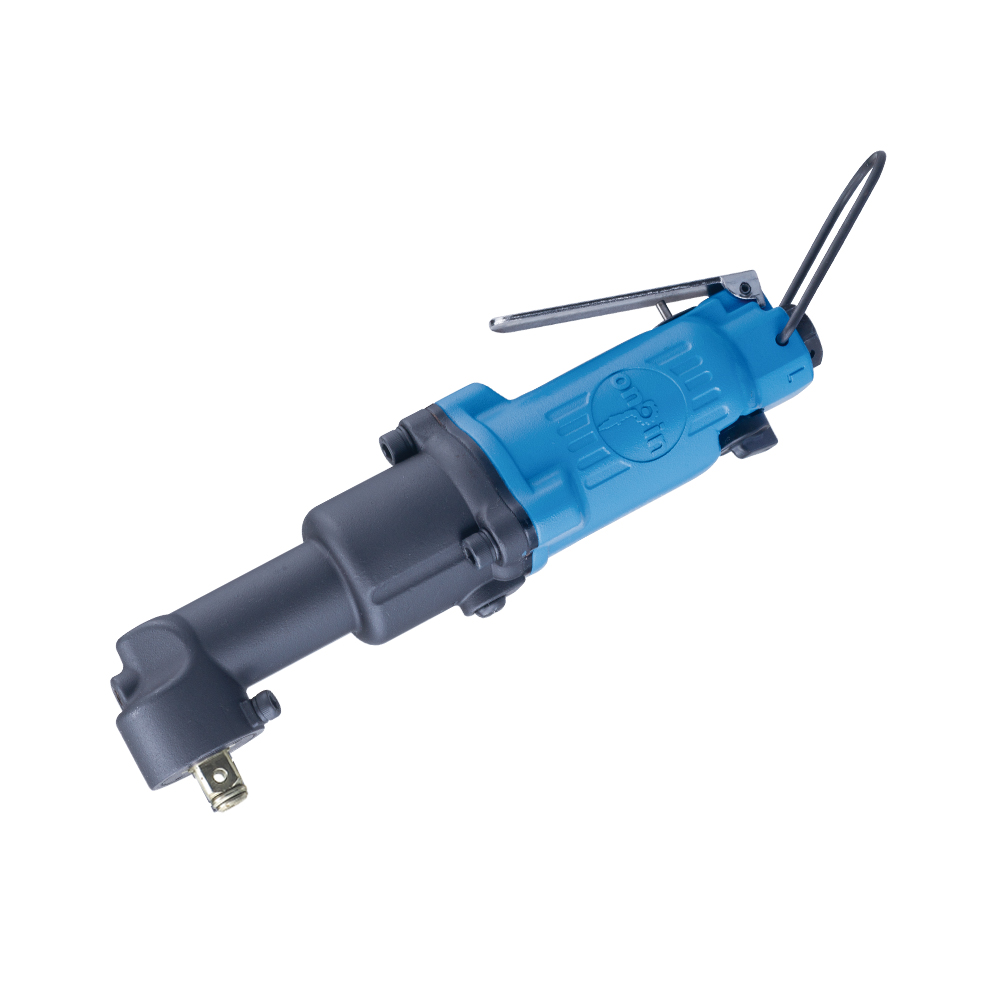

OP-310LH4
● High attack frequency.
● Low counteraction.
● Angle housing can using in small spaces
● Anvil Size have 3/8" and 1/2" can choose
Application:
●Especially in heavy-productive industries
(rattan, carpentry, electric, motor, aluminum, and hardware).
● Low counteraction.
● Angle housing can using in small spaces
● Anvil Size have 3/8" and 1/2" can choose
Application:
●Especially in heavy-productive industries
(rattan, carpentry, electric, motor, aluminum, and hardware).
SPECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2)
| MODEL | Anvil Size |
Bolt Szie |
Working Torque |
MAX Torque |
Free Speed | Air Consumption | Overall Length | Air Inlet | Net Weight | Sound Level | |||||
| mm | Nm | ft-lb | Nm | ft-lb | rpm | l/min | cfm | mm | inch | P.T | kg | lb | dB(A) | ||
| OP-310LH4 | 1/2" | M10 | 60 | 44 | 130 | 96 | 7000 | 198 | 7 | 240 | 9.45 | 1/4 | 1.62 | 3.57 | 92 |
Packing List:
Carton : 10 Pcs / N.W. : 16.1 KGS / G.W : 19.24 KGS / CUFT : 1.1"
Similar Tool:
| MODEL | Anvil Size |
Bolt Szie |
Working Torque |
MAX Torque |
Free Speed | Air Consumption | Overall Length | Air Inlet | Net Weight | Sound Level | |||||
| mm | Nm | ft-lb | Nm | ft-lb | rpm | l/min | cfm | mm | inch | P.T | kg | lb | dB(A) | ||
| OP-310LH3 | 3/8" | M10 | 60 | 44 | 130 | 96 | 7000 | 198 | 7 | 240 | 9.45 | 1/4 | 1.62 | 3.57 | 92 |
