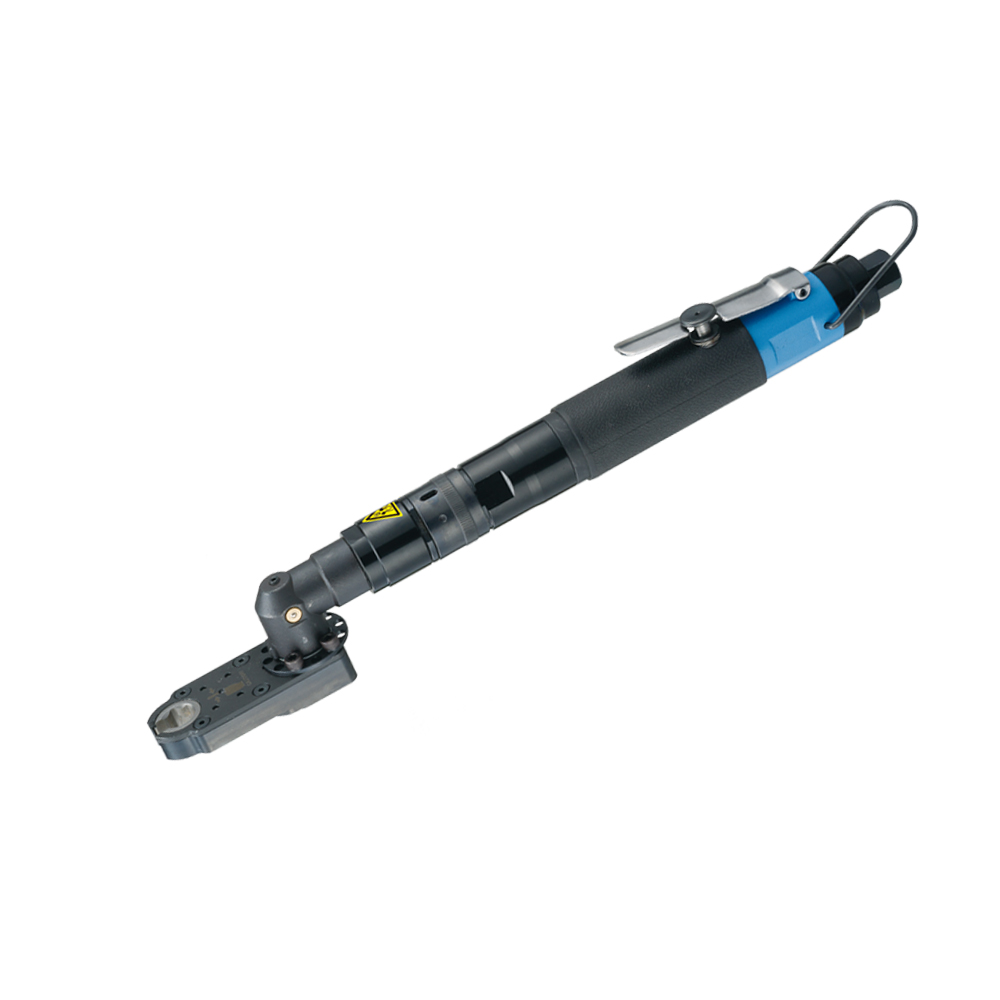

OP-EW17
● Lightweight, ergonomic, and easy to service

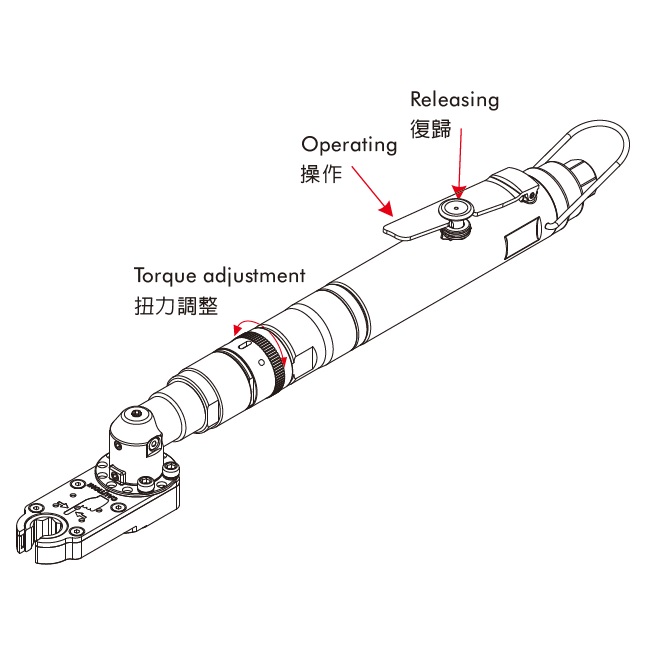

● External torque adjustment :
Turn right to increase and left to decrease.
● One button for easily releasing

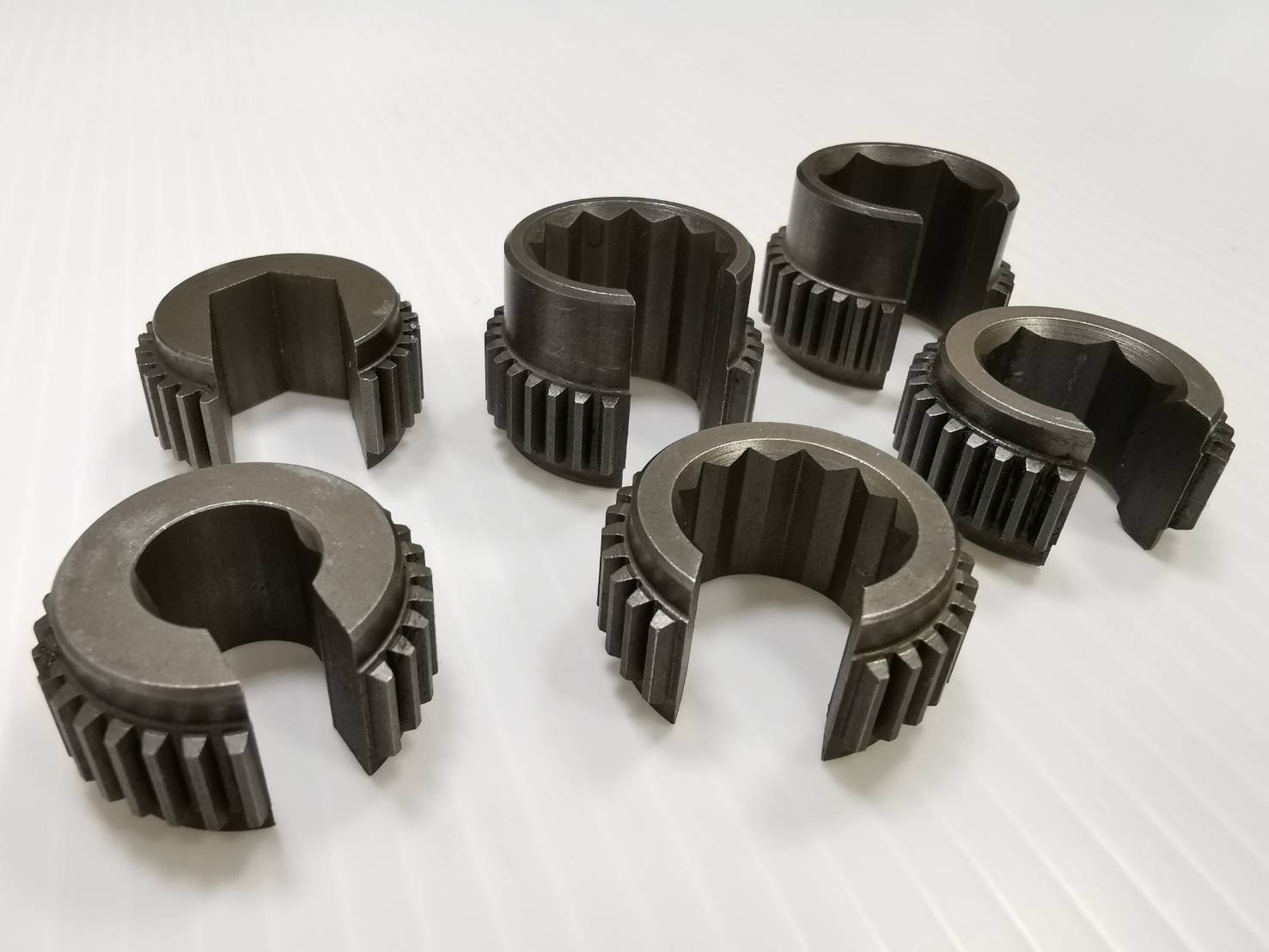

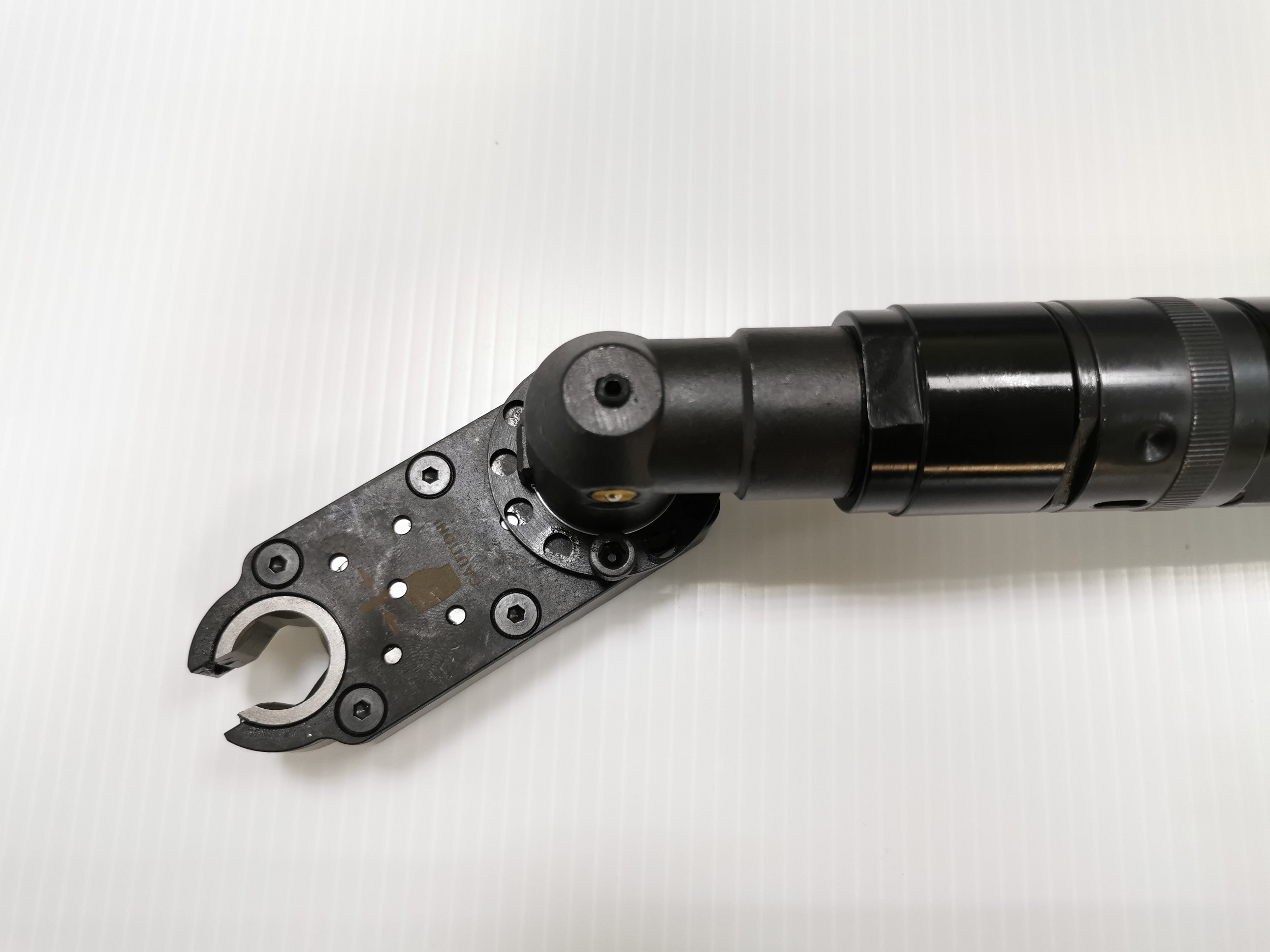

● Open ratchet style can be customized
● Adjust wrench gear set angle
Application :
● Gas ramps in hobs, Boiler pipes, Bicycle brake cable,
Automobile industry, Pump power cord, Coffee machine pipes.
● External torque adjustment :
Turn right to increase and left to decrease.
● One button for easily releasing
● Open ratchet style can be customized
● Adjust wrench gear set angle
Application :
● Gas ramps in hobs, Boiler pipes, Bicycle brake cable,
Automobile industry, Pump power cord, Coffee machine pipes.
SPECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2 )
Packing List
Carton : 6 PCS , N.W .: 9.6 KGS , G.W. : 12.8 KGS , CUFT : 1.1 "
-5.jpg)
Applications
Video
| MODEL | Hex Szie | MAX. Torque |
Free Spped |
Air Consumption |
Overall Length |
Air Inlet |
Net Weight |
Sound Level |
||||
| mm | Nm | rpm | l/min | cfm | mm | inch | P.T | kg | lb | dB(A) | ||
| OP-EW17 | 7,8,9,10,11,12,13, 14,15,16,17,1/2" |
7.5 ~ 15 | 230 | 198 | 7 | 413 | 16.25 | 1/4 | 1.67 | 3.68 | 87 | |
Packing List
Carton : 6 PCS , N.W .: 9.6 KGS , G.W. : 12.8 KGS , CUFT : 1.1 "
