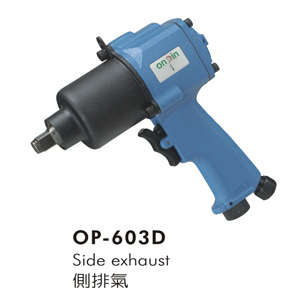

Specifications: OP-603D: Side exhaust
(1) Large torque.
(2) Long Lasting.
(3) Less vibration than single ring type.
Application: Especially in heavy-productive industries rattan, motor.
| MODEL | Bolt Size Capacity |
Working Torque |
MAX. Torque |
Free Speed |
Air Consumption |
Overall Length |
Air Inlet |
Net Weight |
Sound Level |
|||||
| mm |
Nm | ft-lb | Nm | ft-lb | rpm | l/min | cfm | mm |
inch | P.T |
kg | lb | dB(A) | |
| OP-603D | M18~M20 | 450 | 332 | 560 | 413 | 6000 | 325 | 11.5 | 180 | 7.09 | 1/4 | 2.57 | 5.67 | 95 |
