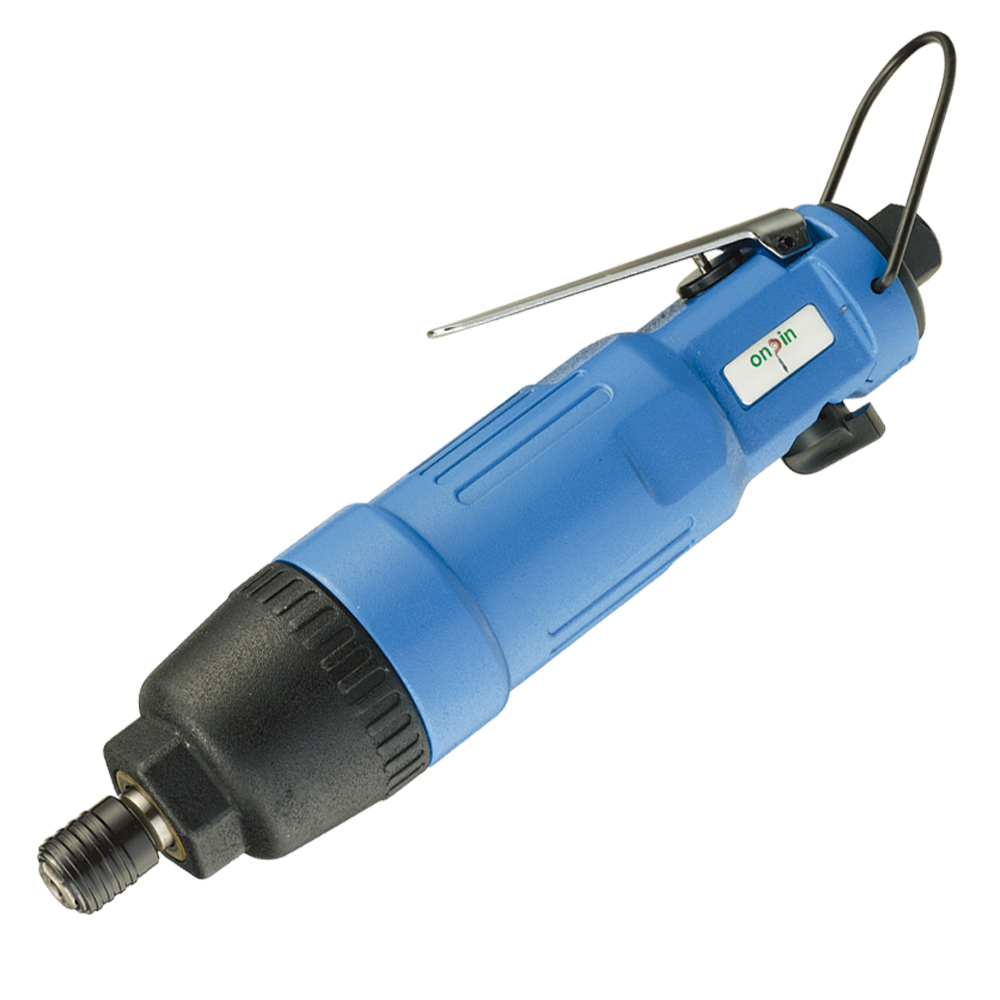

OP-100A1
● Forward & Reversible knob .
● 2 steps push start trigger
● Oil in the front cap design for extended long performance life.
● Rear exhaust,to reduce oil stains at work pieces.
Application:
Especially in heavy-productive industries
(rattan, carpentry, electric, motor, aluminum, and hardware).
● 2 steps push start trigger
● Oil in the front cap design for extended long performance life.
● Rear exhaust,to reduce oil stains at work pieces.
Application:
Especially in heavy-productive industries
(rattan, carpentry, electric, motor, aluminum, and hardware).
SPECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2)
| MODEL | Screw Size Capacity | Working Torque |
MAX. Torque |
Free | Air Consumption |
Overall Length |
Air Inlet |
Net Weight |
Sound Level |
Bit Type |
|||||
| Speed | |||||||||||||||
| mm | Nm | ft-lb | Nm | ft-lb | rpm | l/min | cfm | mm | inch | P.T | kg | lb | dB(A) | type | |
| OP-100A1 | 8 | 75 | 55 | 280 | 207 | 5500 | 240 | 8.5 | 265 | 10.43 | 1/4 | 1.7 | 3.75 | 85 | Q |
Packing List
Carton : 10 pcs / N.W.: 17.3 KGS / G.W.: 20.4 KGS / CUFT: 1.1"
