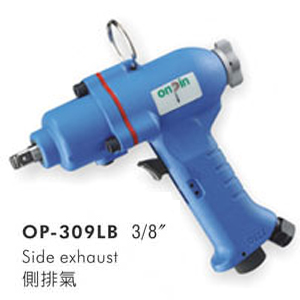

Specifications: OP-309LB: Side exhaust
| MODEL | Bolt Size Capacity |
Working Torque |
MAX. Torque |
Free Speed |
Air Consumption |
Overall Length |
Air Inlet |
Net Weight |
Sound Level |
|||||
| mm |
Nm | ft-lb | Nm | ft-lb | rpm | l/min | cfm | mm |
inch | P.T |
kg | lb | dB(A) | |
| OP-309LB | M10 | 80 | 59 | 200 | 148 | 7700 | 198 | 7 | 185 | 7.28 | 1/4 | 1.3 | 2.87 | 89 |
