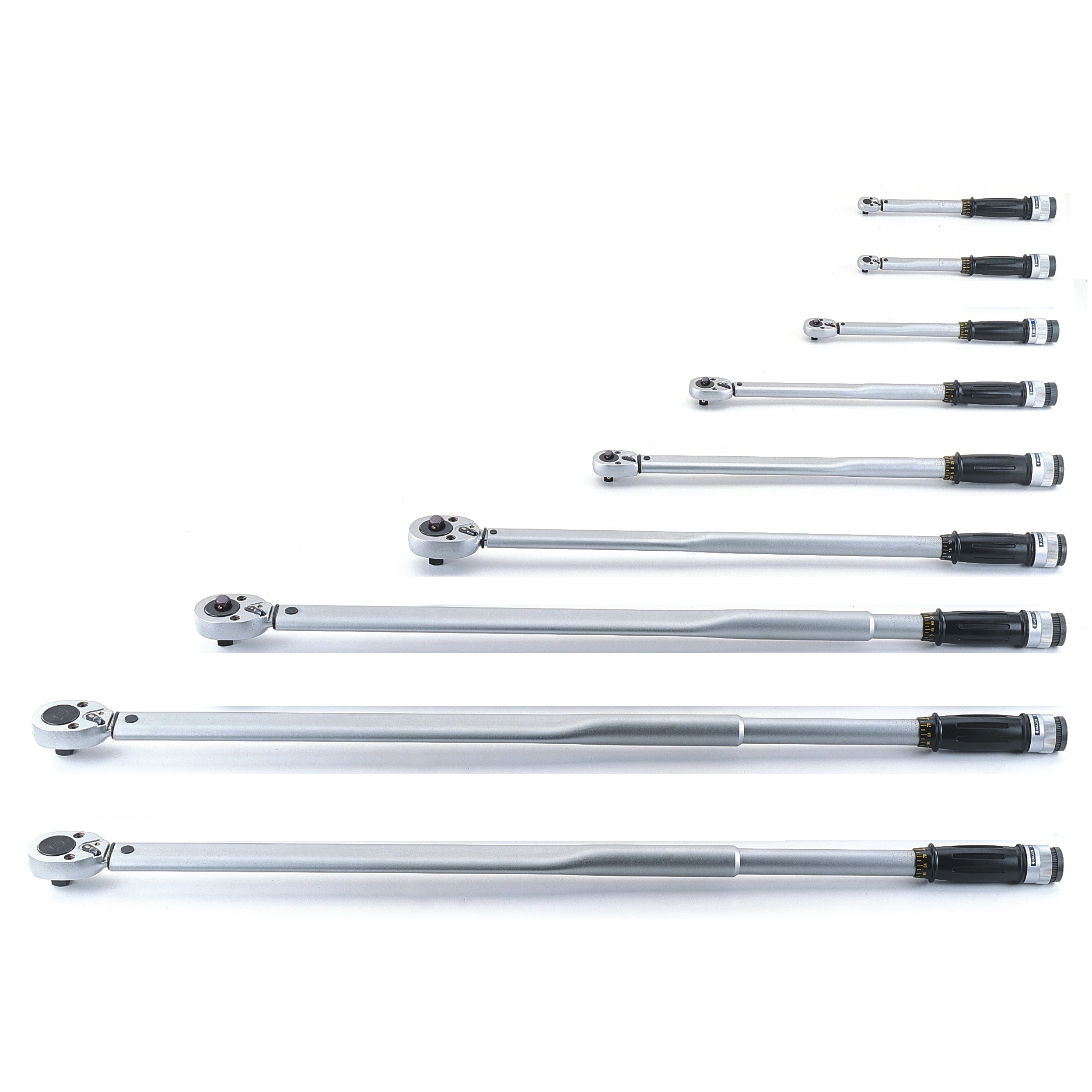

OP-1313K2 Series
Accuracy : ± 4%
OP-1313K2、OP-1313K3、
OP1314K、OP-1315K、
OP-1316K、OP-1317K、
OP-1318K、OP-1319K6、
OP-1319K8
OP-1313K2、OP-1313K3、
OP1314K、OP-1315K、
OP-1316K、OP-1317K、
OP-1318K、OP-1319K6、
OP-1319K8
Accuracy : ± 4%
MODEL | Driver | Capacity | Length | Net Weight | |||
inch | Nm | ft-lb | mm | kg | |||
OP-1313K2 | 1/4 | 6-30 | 40-250inhch-lb | 305 | 0.74 | × | |
OP-1313K3 | 3/8 | 6-30 | 40-250inhch-lb | 305 | 0.74 | × | |
OP-1314K | 3/8 | 19-110 | 15-80 | 380 | 0.95 | ○ | |
OP-1315K | 1/2 | 40-210 | 30-150 | 535 | 1.65 | ○ | |
OP-1316K | 1/2 | 70-350 | 50-250 | 640 | 3 | ○ | |
OP-1317K | 3/4 | 100-500 | 50-300 | 865 | 3.7 | ○ | |
OP-1318K | 3/4 | 140-700 | 100-500 | 1090 | 6.25 | ○ | |
OP-1319K6 | 3/4 | 140-980 | 100-700 | 1230 | 6.8 | × | |
OP-1319K8 | 1 | 140-980 | 100-700 | 1230 | 6.8 | × |
