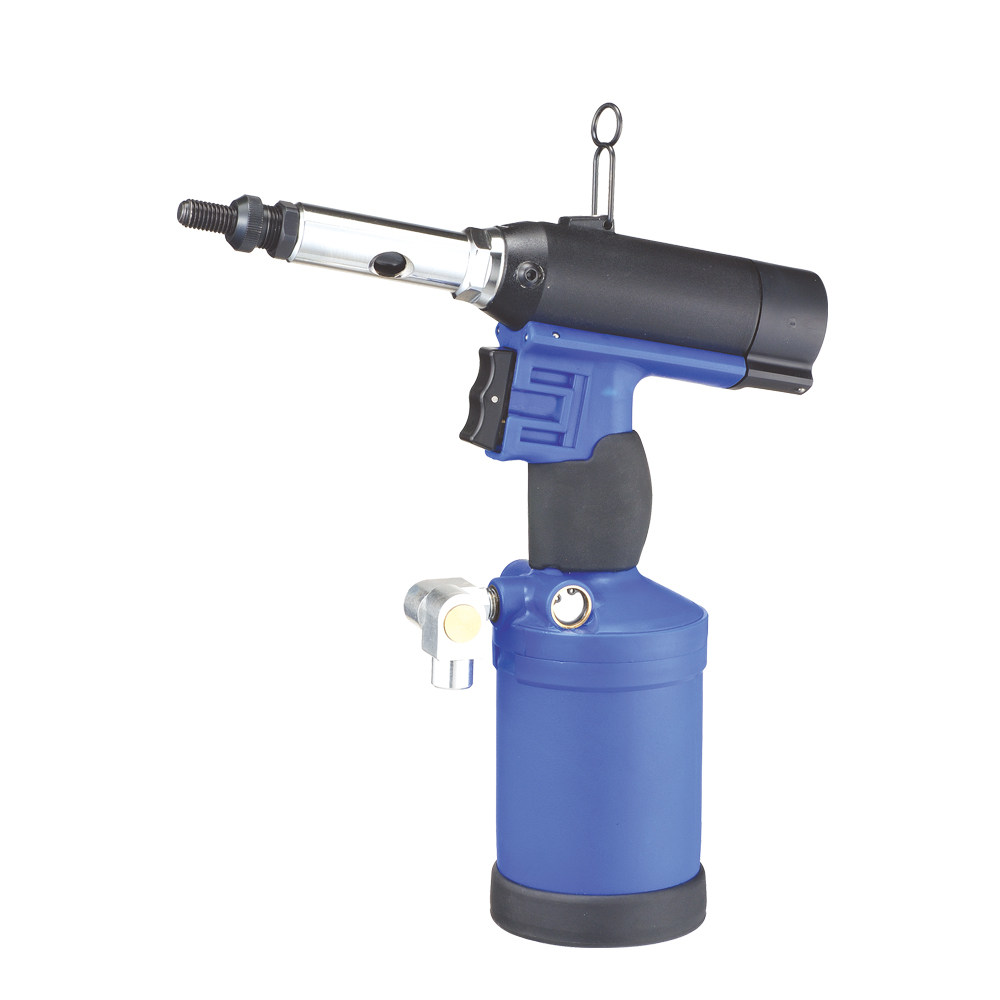

OP-PS12-O1
● Air hydraulic rivet nut tool
● Traction Power : 2180 kg ( 4800 lbs)
● Nut Size : M3~M12。
● Applicable material : Alu. , Steel , Stainless.
● Max Stroke 7 mm
● Traction Power : 2180 kg ( 4800 lbs)
● Nut Size : M3~M12。
● Applicable material : Alu. , Steel , Stainless.
● Max Stroke 7 mm
SPECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2)
Packing List :
Carton : 5 Pcs / N.W. : 21 KGS / G.W. : 22 KGS / CUFT : 2.8"
| MODEL | Structure |  |
 |
Free Speed | Overall Length | Air Inlet | Net Weight | ||
| mm | mm | rpm | mm | inch | P.T | kg | lb | ||
| OP-PS12-O1 | Hydraulic Type | 3,4,5,6,8,10,12 | 3,4,5,6,8,10,12 | 1200 | 205 | 8.07 | 1/4 | 2.5 | 5.51 |
Packing List :
Carton : 5 Pcs / N.W. : 21 KGS / G.W. : 22 KGS / CUFT : 2.8"
Safety Guidelines
1. Read this manual and understand all safety instructions before operating the tool.
2. Do not exceed maximum permissible operating pressure of the tool (100 psi or 7.6 bars ) .
3. Repairing and cleaning operations must be done when the tool is not fed.
4. Never allow the use of flammable gases(oxygen) as a power source for the tool. Use filtered, lubricated, and regulated compressed air only.
5. Never use gasoline or other flammable liquids to clean the tool. Vapors in the tool will ignite by a spark and cause the tools to explode.
