OP-103

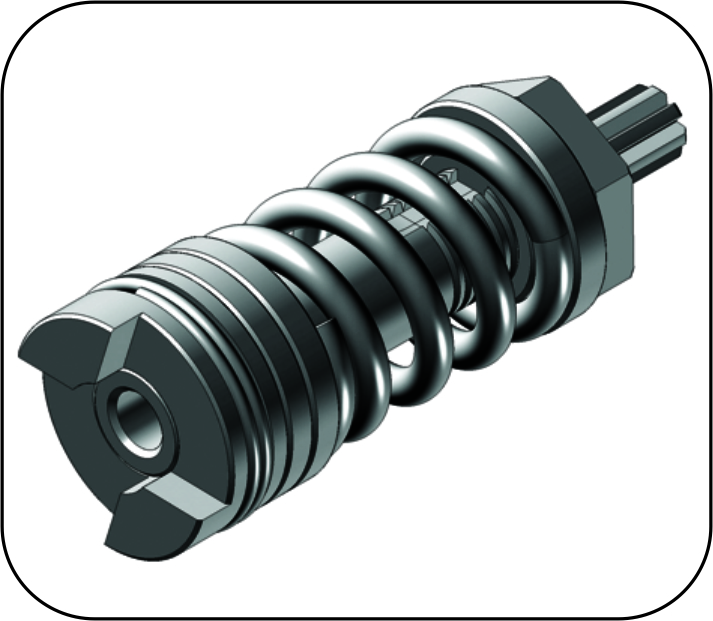

● While reaching the fixed torque, clutch will run automatically and Protect the workpiece from being damaged.

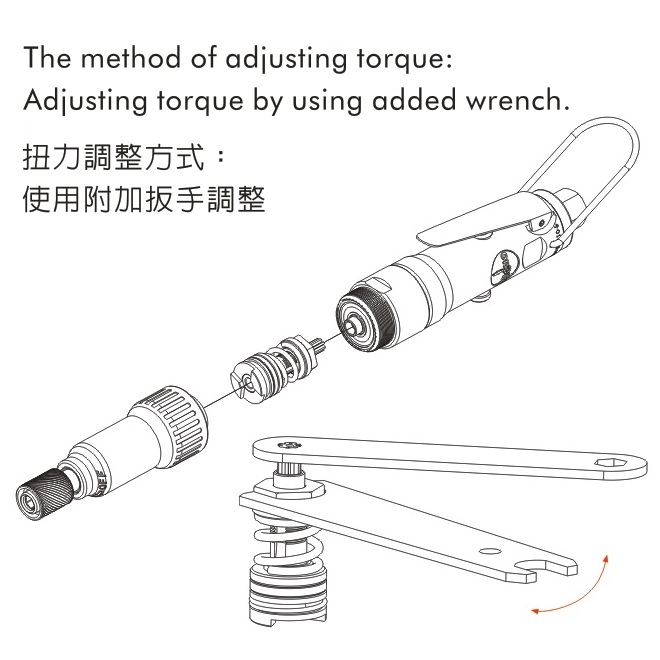

● With torque regulator.
● One hand operation forward and reverse
● Hook design can be used for spring balancer. More efficiency and more safe for the workers.
Application:
Apply to release or fasten the high-precise screw, especially for outside box setting in industries such as toy, electric, carpentry, and plastic.
● With torque regulator.
● One hand operation forward and reverse
● Hook design can be used for spring balancer. More efficiency and more safe for the workers.
Application:
Apply to release or fasten the high-precise screw, especially for outside box setting in industries such as toy, electric, carpentry, and plastic.
SPECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2)
Packing list:
Carton : 20 pcs / N.W. : 16 KGS / G.W. : 21.3 KGS / CUFT : 1.1 "
| MODEL | Screw Size Capacity | MAX. Torque |
Free | Air Consumption |
Overall Length |
Air Inlet |
Net Weight |
Sound Level |
Bits Type |
||||
| Speed | |||||||||||||
| mm | Nm | ft-lb | rpm | l/min | cfm | mm | inch | P.T | kg | lb | dB(A) | ||
| OP-103 | 4 | 2 | 1.4 | 2200 | 170 | 6 | 235 | 9.25 | 1/4 | 0.8 | 1.76 | 91 | F |
Packing list:
Carton : 20 pcs / N.W. : 16 KGS / G.W. : 21.3 KGS / CUFT : 1.1 "
