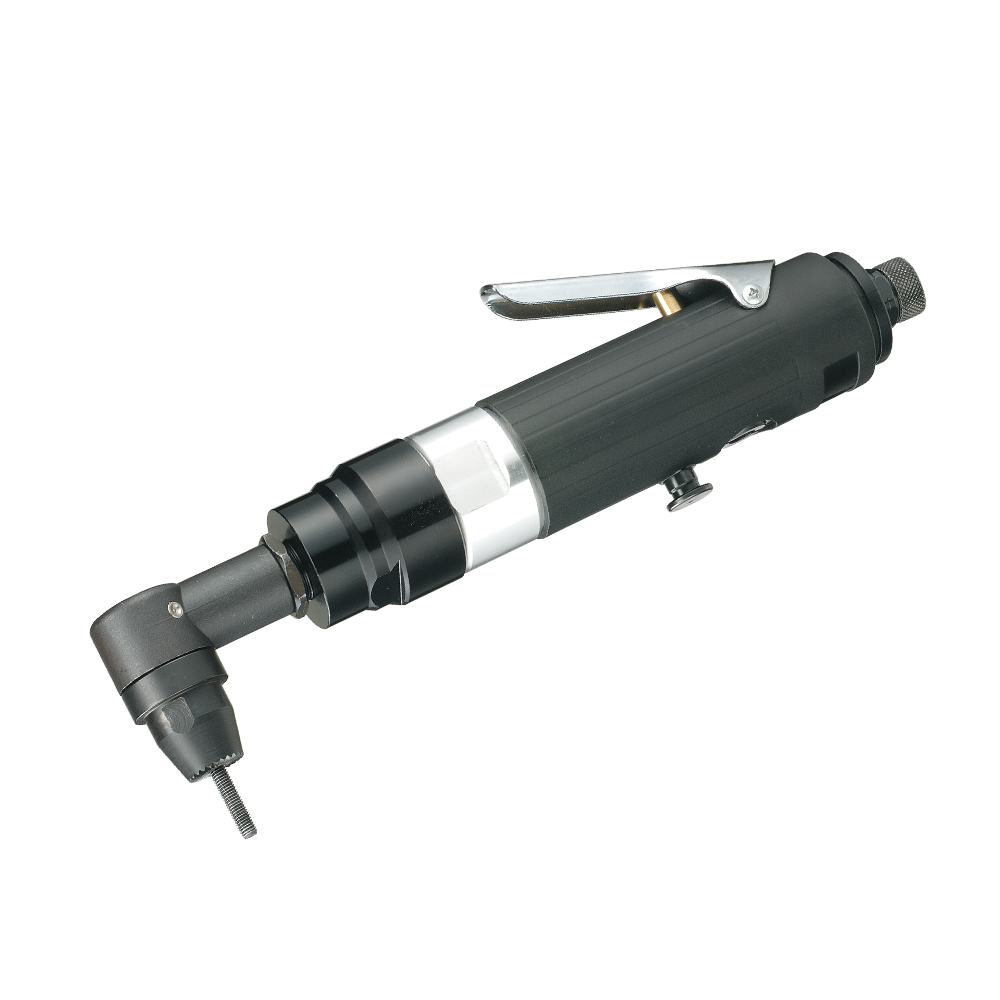

OP-PSLH16
● Gear Type
● Nut Size : 3,4,5,6 mm
● Angle design can be use in narrow spaces
● Applicable material : Alu. and Steel , can't be use stainless.
● Rear exhaust
● Nut Size : 3,4,5,6 mm
● Angle design can be use in narrow spaces
● Applicable material : Alu. and Steel , can't be use stainless.
● Rear exhaust
SPECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2)
| MODEL | Structure |  |
 |
Free Speed | Air Cousumption | Overall Length | Air Inlet | Net Weight | |||
| mm | mm | rpm | l/min | cfm | mm | inch | P.T | kg | lb | ||
| OP-PSLH16 | Gear | 3,4,5,6 | 3,4,5 | 2700 | 198 | 7 | 230 | 9.06 | 1/4 | 1.3 | 2.87 |
Nut Tools with order code number reference
| Model | OP-PSLH16 |
| Size | Order Code |
| M3 | OP-PSLH16-3 |
| M4 | OP-PSLH16-4 |
| M5 | OP-PSLH16-5 |
| M6 | OP-PSLH16-6 |
Packing List:
Carton : 10 Pcs / N.W. : 11.7 KGS / G.W. : 13.8 KGS / CUFT : 1.1"
