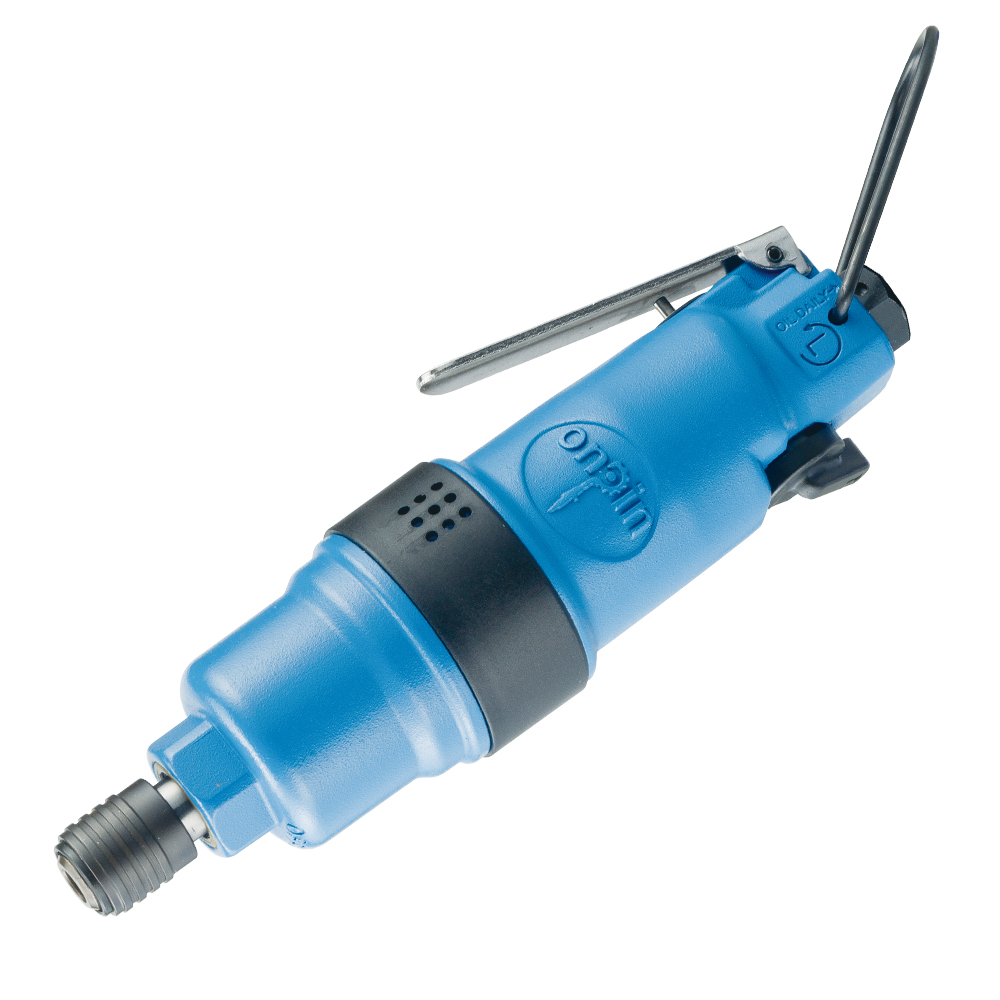

OP-328Q , OP-328F
● Rotate side exhaust
● High Torque , High Speed
● High impact frequency
● 360 degree exhaust bushing easy for user adjustable
● Oil-in-the-front cap design for extended long performance life.

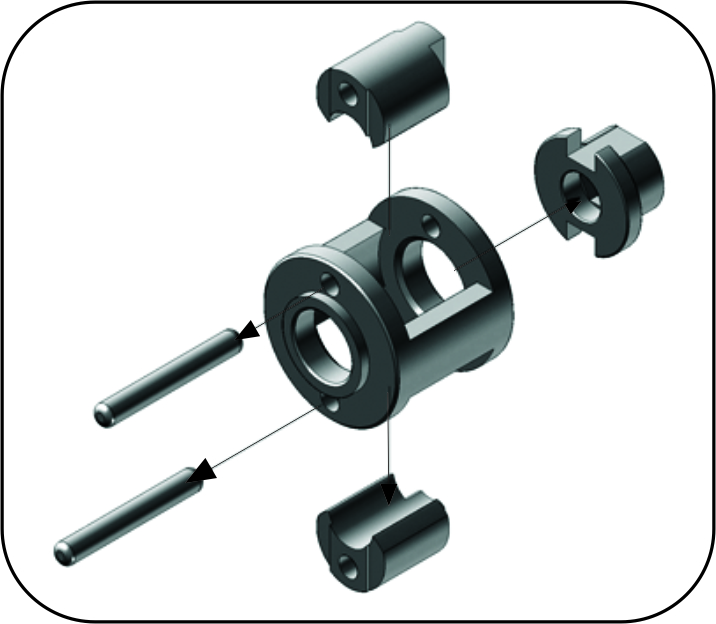

● Motor set is in alloy steel material.
● Hook design can be used for spring balancer. More efficiency and more safe for the workers.
Application:
Especially in heavy-productive industries
( rattan , carpentry , electric , motor , alu. and hardware)
● High Torque , High Speed
● High impact frequency
● 360 degree exhaust bushing easy for user adjustable
● Oil-in-the-front cap design for extended long performance life.
● Motor set is in alloy steel material.
● Hook design can be used for spring balancer. More efficiency and more safe for the workers.
Application:
Especially in heavy-productive industries
( rattan , carpentry , electric , motor , alu. and hardware)
SPECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2)
Packing :
Carton : 20 Pcs / N.W : 21.1 KGS / G.W. : 25.88 KGS / CUFT : 1.1"
| MODEL | Screw Size Capacity |
Working Torque |
MAX. Torque |
Free Speed | Air Consumption |
Overall Length |
Air Inlet |
Net Weight |
Sound Level |
Bit Type |
|||||
| mm | Nm | ft-lb | Nm | ft-lb | rpm | l/min | cfm | mm | inch | P.T | kg | lb | dB(A) | type | |
| OP-328Q | 6~8 | 65 | 48 | 240 | 177 | 8800 | 268 | 9.5 | 200 | 7.87 | 1/4 | 1.05 | 2.31 | 98 | Q |
| OP-328F | 6~8 | 65 | 48 | 240 | 177 | 8800 | 268 | 9.5 | 200 | 7.87 | 1/4 | 1.05 | 2.31 | 98 | F |
Packing :
Carton : 20 Pcs / N.W : 21.1 KGS / G.W. : 25.88 KGS / CUFT : 1.1"
