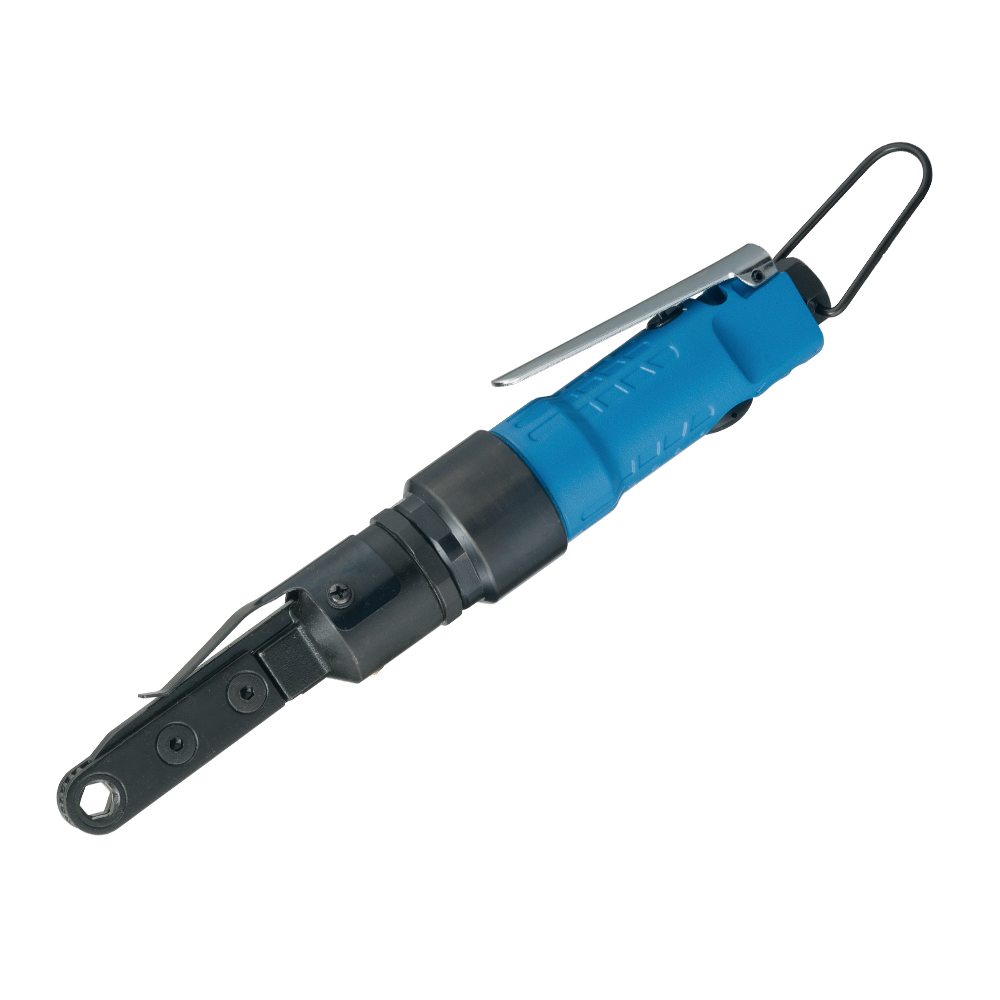

OP-812LS

●The ratchet wrench can be used in narrow working spaces and can fasten bolts and nuts easily. This special tool can be reached tight place that other air tools can not.

●Remove: First , loosen nut by wrench then take nut out with air ratchet.
●Fasten: Push trigger to polisher the nut then lock it with torque wrench

Application :
● Apply to heavy-productive assembly lines such as motor-vehicles, bike and motor.
Share to:
SPECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2 )
MODEL Hex
Size
Working
Torque
MAX.
Torque
Free
Speed
Air
Consumption
Overall
Length
Air
Inlet
Net
Weight
Sound
Level
mm Nm ft-lb Nm ft-lb rpm l/min cfm mm inch P.T  kg lb dB(A)
OP-812LS 6,7,8,9,10,11,12
(1/4",5/16",3/8",7/16")
10 7 10 7 180 127 4.5 285 11.22 1/4 1.28 2.81 86

Packing

Full Carton :10 PCS , N.W.: 13.1 KGS , G.W.: 16.2 KGS , CUFT : 1.4 "

Application
