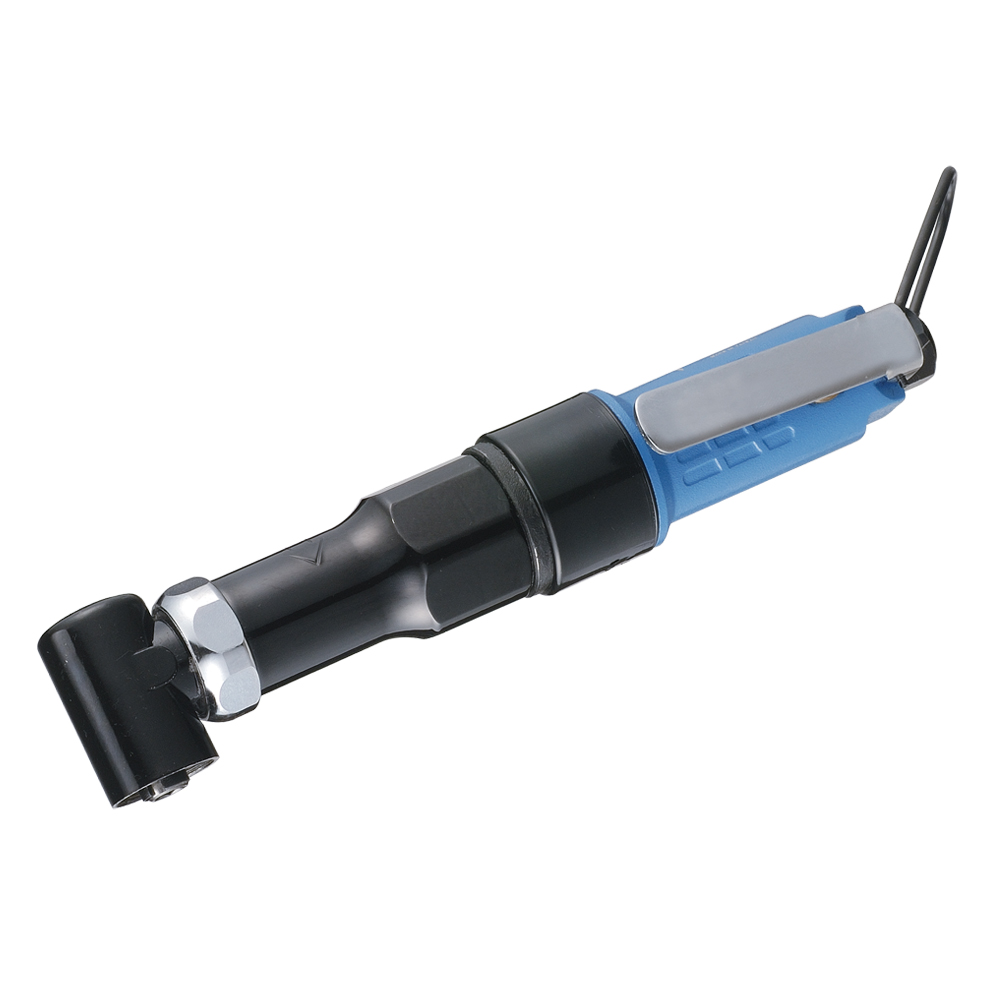

OP-302L90

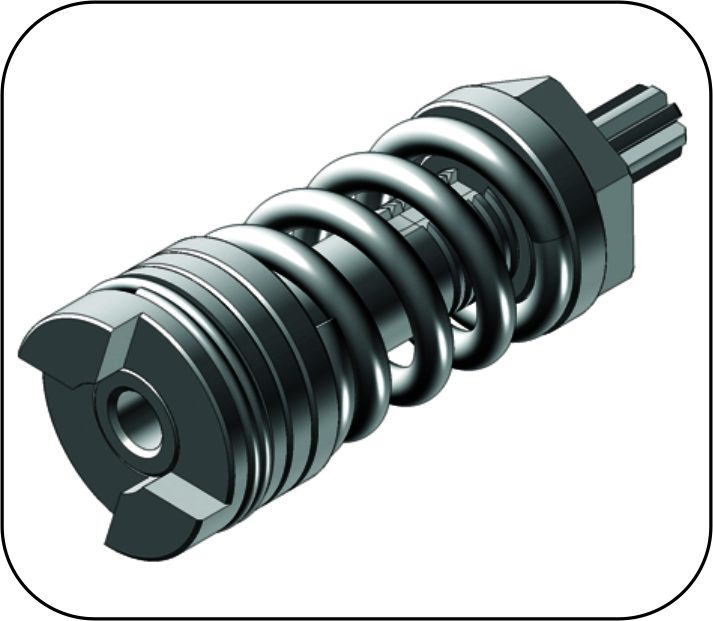

● While reaching the fixed torque, clutch will run automatically and Protect the workpiece from being damaged.

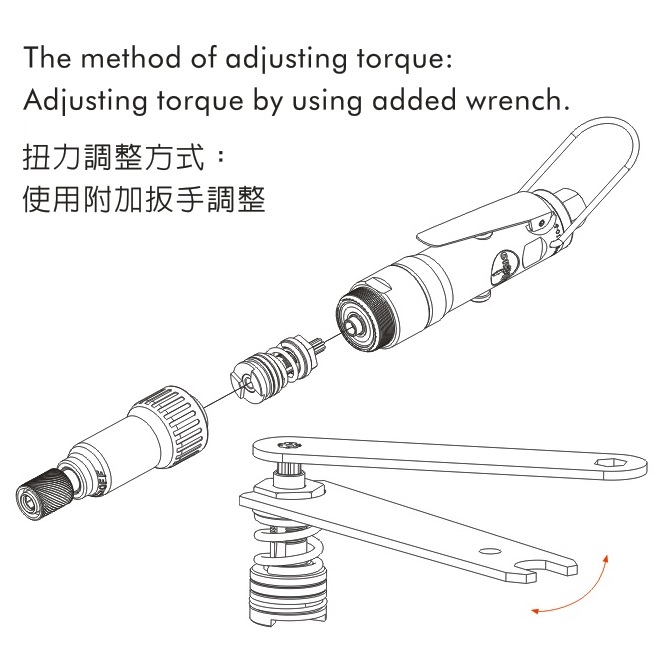

● With torque regulator.
● One hand operation forward and reverse
● Reverse button has self locking function
● 360 degree exhaust bushing easy for user adjustable
● Hook design can be used for spring balancer. More efficiency and more safe for the workers.
Application:
Apply to release or fasten the high-precise screw, especially for outside box setting in industries such as toy, electric, carpentry, and plastic.
● With torque regulator.
● One hand operation forward and reverse
● Reverse button has self locking function
● 360 degree exhaust bushing easy for user adjustable
● Hook design can be used for spring balancer. More efficiency and more safe for the workers.
Application:
Apply to release or fasten the high-precise screw, especially for outside box setting in industries such as toy, electric, carpentry, and plastic.
SPECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2)
| MODEL | Screw Size Capacity | MAX. Torque |
Free | Air Consumption |
Overall Length |
Air Inlet |
Net Weight |
Sound Level |
Bits Type |
||||
| Speed | |||||||||||||
| mm | Nm | ft-lb | rpm | l/min | cfm | mm | inch | P.T | kg | lb | dB(A) | ||
| OP-302L90 | 5 | 2.5 | 1.8 | 1650 | 127 | 4.5 | 235 | 9.25 | 1/4 | 0.76 | 1.68 | 86 | F |
Angle Head Size :
Packing list:
Carton : 20 pcs / N.W. : 15.4 KGS / G.W. : 21.5 KGS / CUFT : 1.1 "
