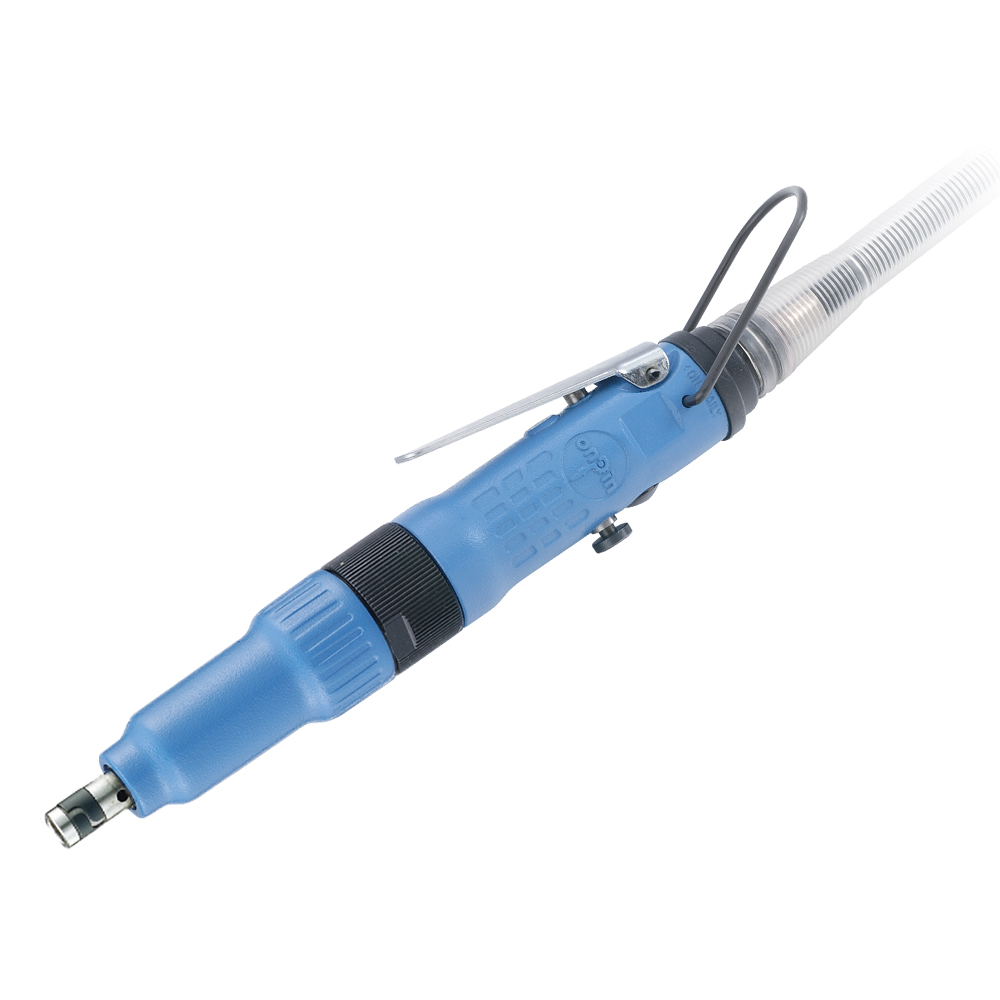

OP-314

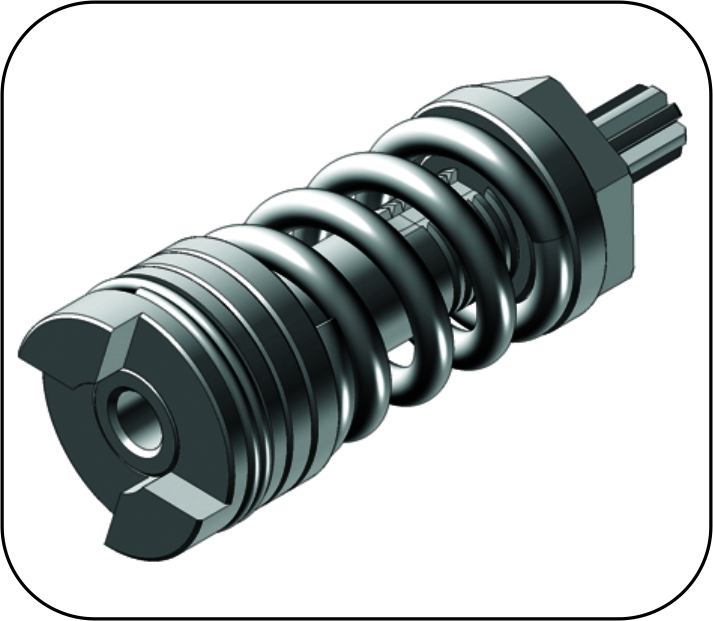

● While reaching the fixed torque, clutch will run automatically and Protect the workpiece from being damaged.

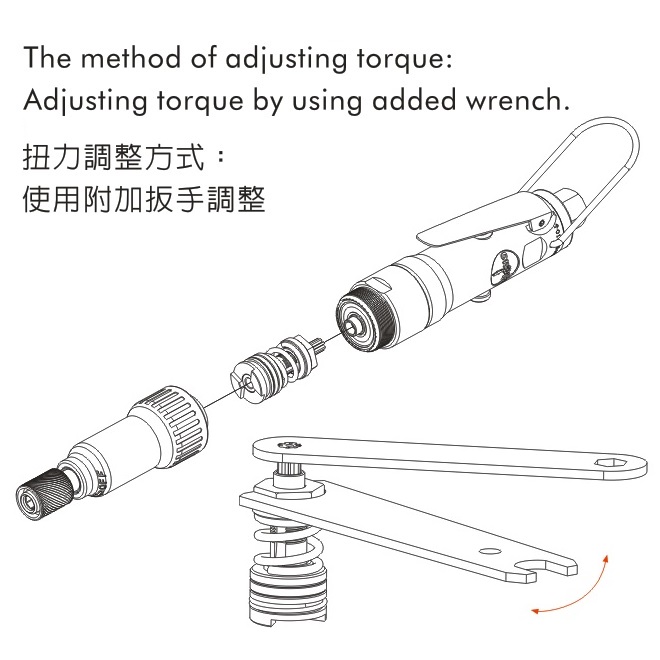

● With torque regulator.
● One hand operation forward and reverse
● Reverse button has self locking function
● Rear exhaust with muffler
● Hook design can be used for spring balancer. More efficiency and more safe for the workers.
Application:
Apply to release or fasten the high-precise screw, especially for outside box setting in industries such as toy, electric, carpentry, and plastic.
● With torque regulator.
● One hand operation forward and reverse
● Reverse button has self locking function
● Rear exhaust with muffler
● Hook design can be used for spring balancer. More efficiency and more safe for the workers.
Application:
Apply to release or fasten the high-precise screw, especially for outside box setting in industries such as toy, electric, carpentry, and plastic.
SPECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2)
| MODEL | Screw Size Capacity |
MAX. Torque |
Free Speed |
Air Consumption |
Overall Length |
Air Inlet |
Net Weight |
Sound Level |
Bits Type |
||||
| mm | Nm | ft-lb | rpm | l/min | cfm | mm | inch | P.T | kg | lb | dB(A) | ||
| OP-314 | 4 | 2 | 1.4 | 1700 | 127 | 4.5 | 240 | 9.45 | 1/4 | 0.7 | 1.54 | 70 | Q |
Packing list:
Carton : 20 pcs / N.W. : 14.1 KGS / G.W. : 20.9 KGS / CUFT : 2.3"
