OP-5S1508B
● Low air consumption , light weight and energy saving
● Accuracy : ± 3%
● One hand operation forward and reverse
● reverse button has self locking function

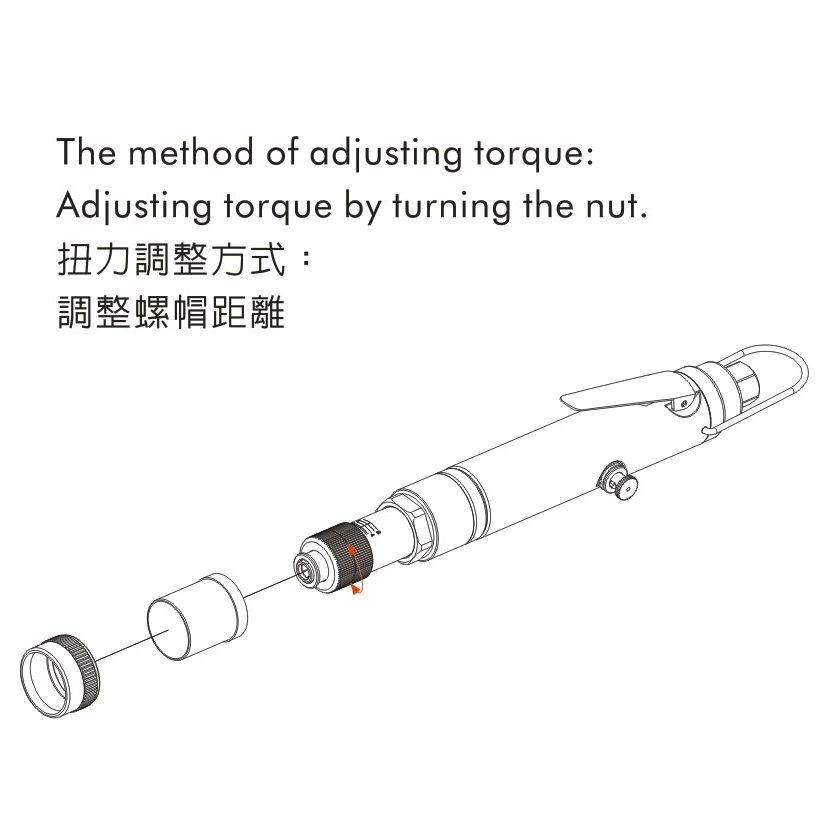

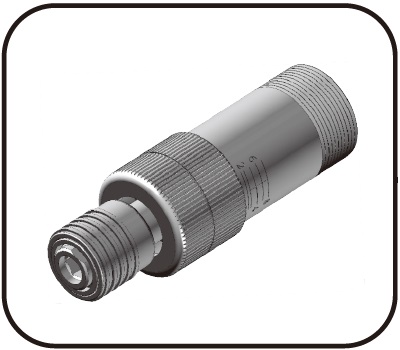

● Adjusting torque by turning the nut.
● With trigger to start device, all parts stop working automatically while reaching the torque.
Application :
● Apply to release or fasten heavy-precise screws.
● Apply especially to industry assembly lines such as computer, instrument, and electric
● Accuracy : ± 3%
● One hand operation forward and reverse
● reverse button has self locking function
● Adjusting torque by turning the nut.
● With trigger to start device, all parts stop working automatically while reaching the torque.
Application :
● Apply to release or fasten heavy-precise screws.
● Apply especially to industry assembly lines such as computer, instrument, and electric
SPECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2)
| MODEL | Screw Size Capacity |
MAX. Torque |
Free Speed |
Air Consumption |
Overall Length |
Air Inlet |
Net Weight |
Sound Level |
Bits Type |
|||
| mm | Nm | rpm | l/min | cfm | mm | inch | P.T | kg | lb | dB(A) | Type | |
| OP-5S1508B | 4 | 1.6~3.1 | 800 | 198 | 7 | 285 | 11.22 | 1/4 | 0.95 | 2.09 | 80 | F |
Packing List:
Carton : 20 Pcs / N.W.: 19.36 KGS / G.W.: 25.6 KGS / Cuft : 2"
Similar Products :
| MODEL | Screw Size Capacity |
MAX. Torque |
Free Speed |
Air Consumption |
Overall Length |
Air Inlet |
Net Weight |
Sound Level |
Bits Type |
|||
| mm | Nm | rpm | l/min | cfm | mm | inch | P.T | kg | lb | dB(A) | Type | |
| OP-5S1508A | 5 | 2.2~4.3 | 800 | 198 | 7 | 285 | 11.22 | 1/4 | 0.95 | 2.09 | 80 | F |
| OP-5S1508B | 4 | 1.6~3.1 | 800 | 198 | 7 | 285 | 11.22 | 1/4 | 0.95 | 2.09 | 80 | F |
| OP-5S1515B | 4 | 1.2~2.4 | 1450 | 198 | 7 | 285 | 11.22 | 1/4 | 0.95 | 2.09 | 80 | F |
| OP-5S1515C | 3.5 | 0.9~1.6 | 1450 | 198 | 7 | 285 | 11.22 | 1/4 | 0.95 | 2.09 | 80 | F |
