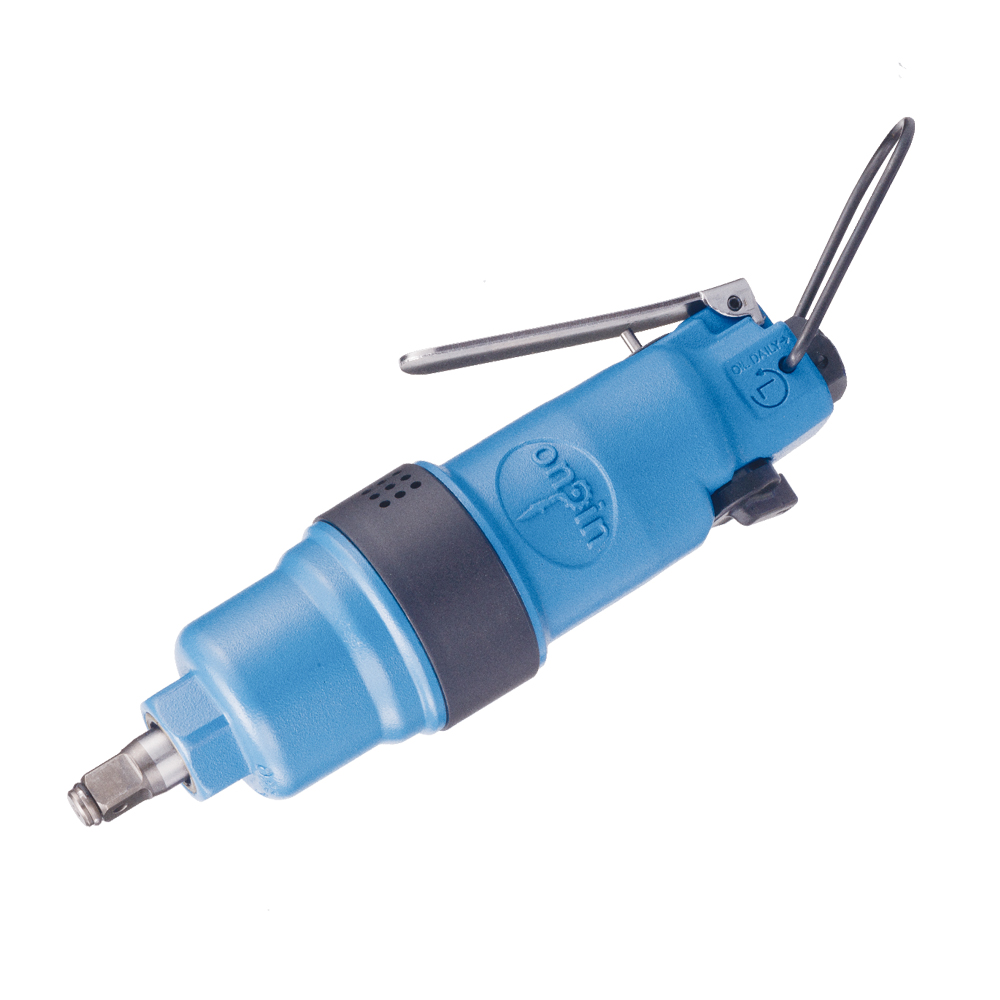

OP-328B3
● 360 degree Rotate side exhaust
● High Torque , High Speed
● High impact frequency
● Low counteraction
Application:
Apply to release or fasten small bolts especially in heavy-productive
assembly lines such as motor-vehicles, bicycles, and motor.
● High Torque , High Speed
● High impact frequency
● Low counteraction
Application:
Apply to release or fasten small bolts especially in heavy-productive
assembly lines such as motor-vehicles, bicycles, and motor.
SPECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2)
Packing List :
Carton : 20 Pcs / N.W : 21.1 KGS / G.W. : 25.88 KGS / CUFT : 1"
| MODEL | Bolt Size Capacity |
Working Torque |
MAX. Torque |
Free Speed | Air Consumption |
Overall Length |
Air Inlet |
Net Weight |
Sound Level |
|||||
| mm | Nm | ft-lb | Nm | ft-lb | rpm | l/min | cfm | mm | inch | P.T | kg | lb | dB(A) | |
| OP-328B3 | M10 ~ M12 | 100 | 73 | 240 | 177 | 8800 | 268 | 9.5 | 190 | 7.79 | 1/4 | 1.05 | 2.31 | 98 |
Packing List :
Carton : 20 Pcs / N.W : 21.1 KGS / G.W. : 25.88 KGS / CUFT : 1"
