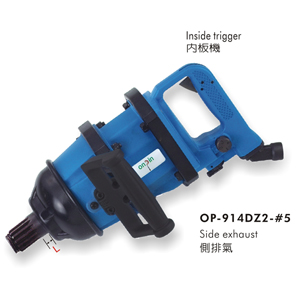

Specifications: OP-914DZ2-#5: Side exhaust
‧Inside trigger: OP-914DZ2-#5 with driver anvil length 1/2", OP-914DZ6-#5 with driver anvil length 6"
| MODEL | Bolt Size Capacity |
Working Torgue |
MAX. Torgue |
Free Speed |
Air Consumption |
Overall Length |
Air Inlet |
Net Weight |
Sound Level |
|||||
| mm |
Nm | ft-lb | Nm | ft-lb | rpm | l/min | cfm | mm |
inch | P.T |
kg | lb | dB(A) | |
| OP-914DZ2-#5 | M27 | 2000 | 1475 | 2500~2900 | 1840~2130 | 2800 | 452 | 16 | 393 | 15.47 | 3/8 | 11.54 | 25.44 | 100 |
| OP-914DZ6-#5 | M27 | 2000 | 1475 | 2500~2800 | 1840~2060 | 2800 | 452 | 16 | 543 | 21.38 | 3/8 | 12.74 | 28.08 | 100 |
