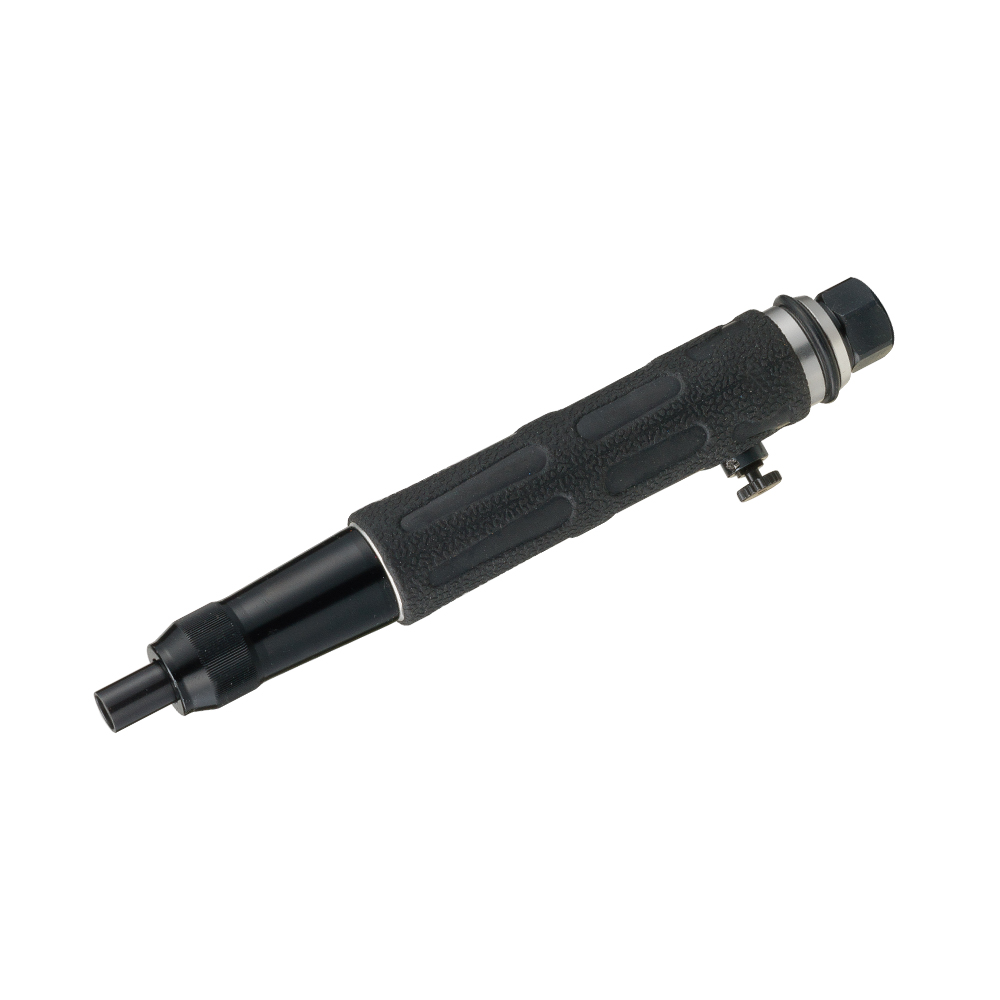

OP-1S0625
● Accuracy : ± 3%
● One hand operation forward and reverse
● reverse button has self locking function
● Low air consumption , light weight and energy saving
● Magnet type
● Hex size of bit : 6.35 mm ( 1/4")
● With Push to start device, all parts stop working automatically while reaching the torque.
Application :
● Apply to release or fasten heavy-precise screws.
● Apply especially to industry assembly lines such as computer, instrument, and electric
● One hand operation forward and reverse
● reverse button has self locking function
● Low air consumption , light weight and energy saving
● Magnet type
● Hex size of bit : 6.35 mm ( 1/4")
● With Push to start device, all parts stop working automatically while reaching the torque.
Application :
● Apply to release or fasten heavy-precise screws.
● Apply especially to industry assembly lines such as computer, instrument, and electric
SPECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2)
※ Hex size of bit : 6.35 mm
| MODEL | Screw Size Capacity |
MAX. Torque |
Free Speed |
Air Consumption |
Overall Length |
Air Inlet |
Net Weight |
Sound Level |
|||
| mm | Nm | rpm | l/min | cfm | mm | inch | P.T | kg | lb | dB(A) | |
| OP-1S0625 | 2 | 0.2~0.35 | 2550 | 71 | 2.5 | 186 | 7.32 | 1/4 | 0.25 | 0.55 | 82 |
Packing :
Carton : 20 pcs / N.W. : 5.4 kg / G.W : 10.5 kg / Cuft : 1.1 "
