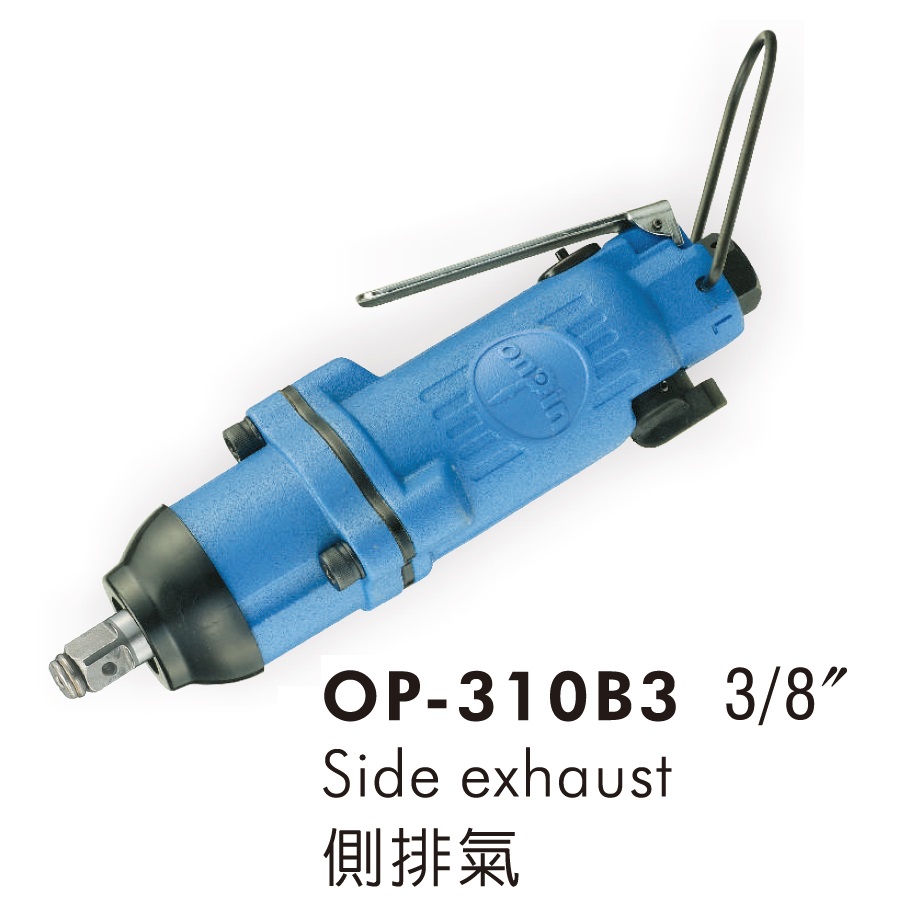

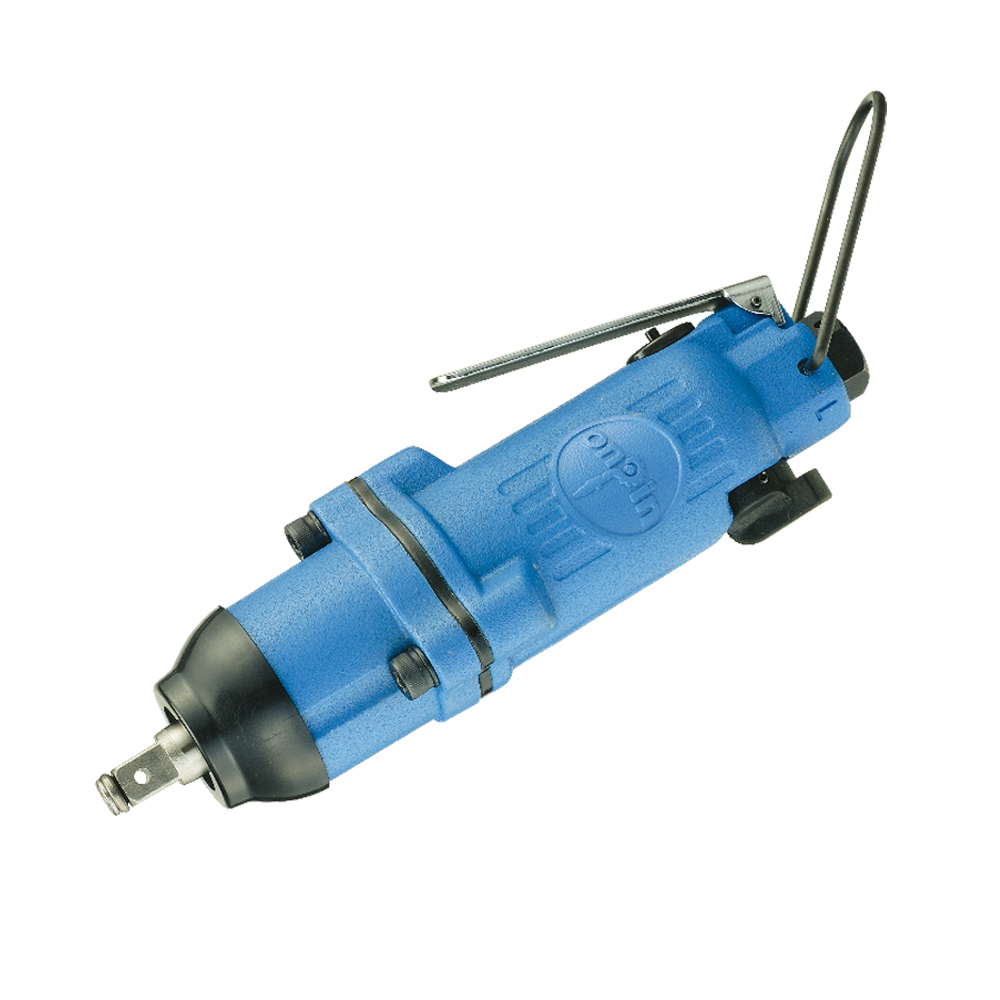

OP-310B3
● High attack frequency.
● Low counteraction.
Application:
Especially in heavy-productive industries
(rattan, carpentry, motor, aluminum, and hardware).
● Low counteraction.
Application:
Especially in heavy-productive industries
(rattan, carpentry, motor, aluminum, and hardware).
SPECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2)
Packing :
Full Carton : 20 PCS / N.W : 20.12 KGS / G.W : 26.26 KGS / CUFT : 1.1"
| MODEL | Bolt Size Capacity |
Working Torque |
MAX. Torque |
Free Speed |
Air Consumption |
Overall Length |
Air Inlet |
Net Weight |
Sound Level |
|||||
| mm | Nm | ft-lb | Nm | ft-lb | rpm | l/min | cfm | mm | inch | P.T | Kg | lb | dB(A) | |
| OP-310B3 | M10~M12 | 90 | 66 | 240 | 177 | 8000 | 254 | 9 | 190 | 7.48 | 1/4 | 1.06 | 2.34 | 97 |
Packing :
Full Carton : 20 PCS / N.W : 20.12 KGS / G.W : 26.26 KGS / CUFT : 1.1"
