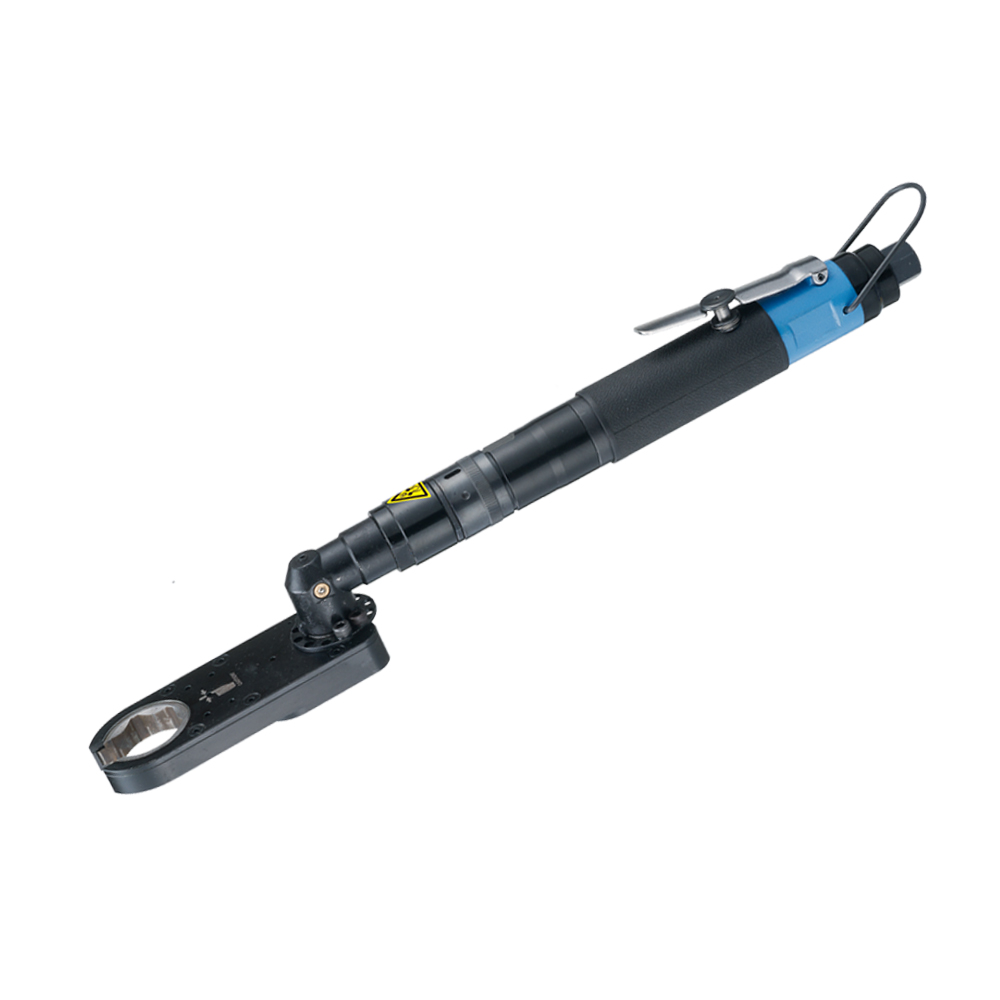

OP-EW32
● Lightweight, ergonomic, and easy to service

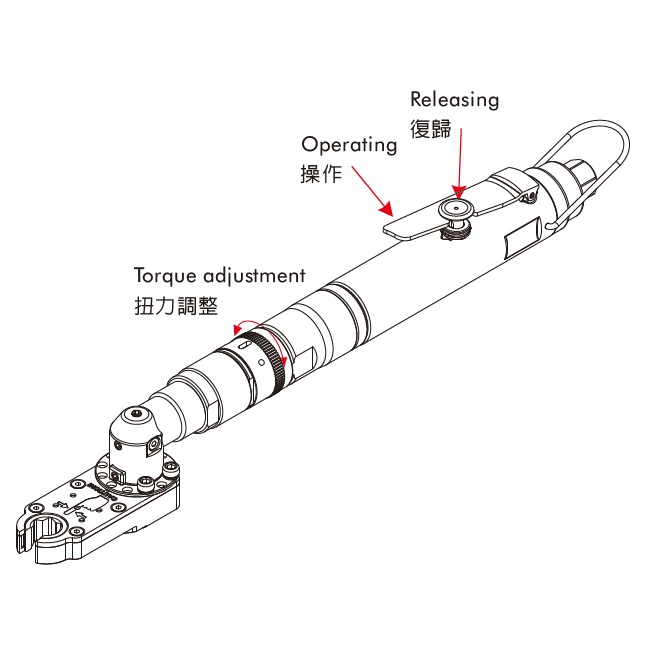

● External torque adjustment :
Turn right to increase and left to decrease.
● One button for easily releasing

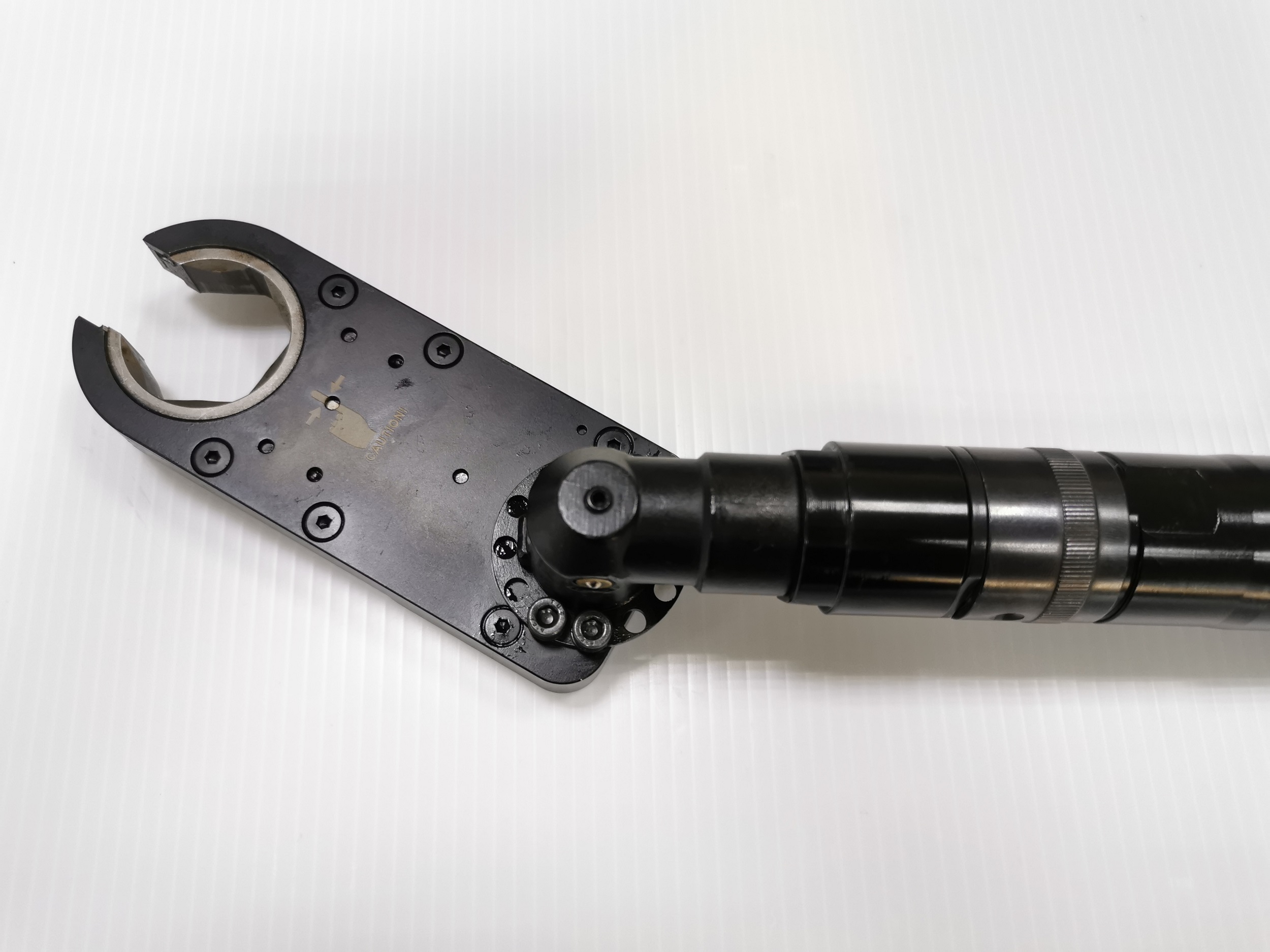

● Open ratchet style can be customized

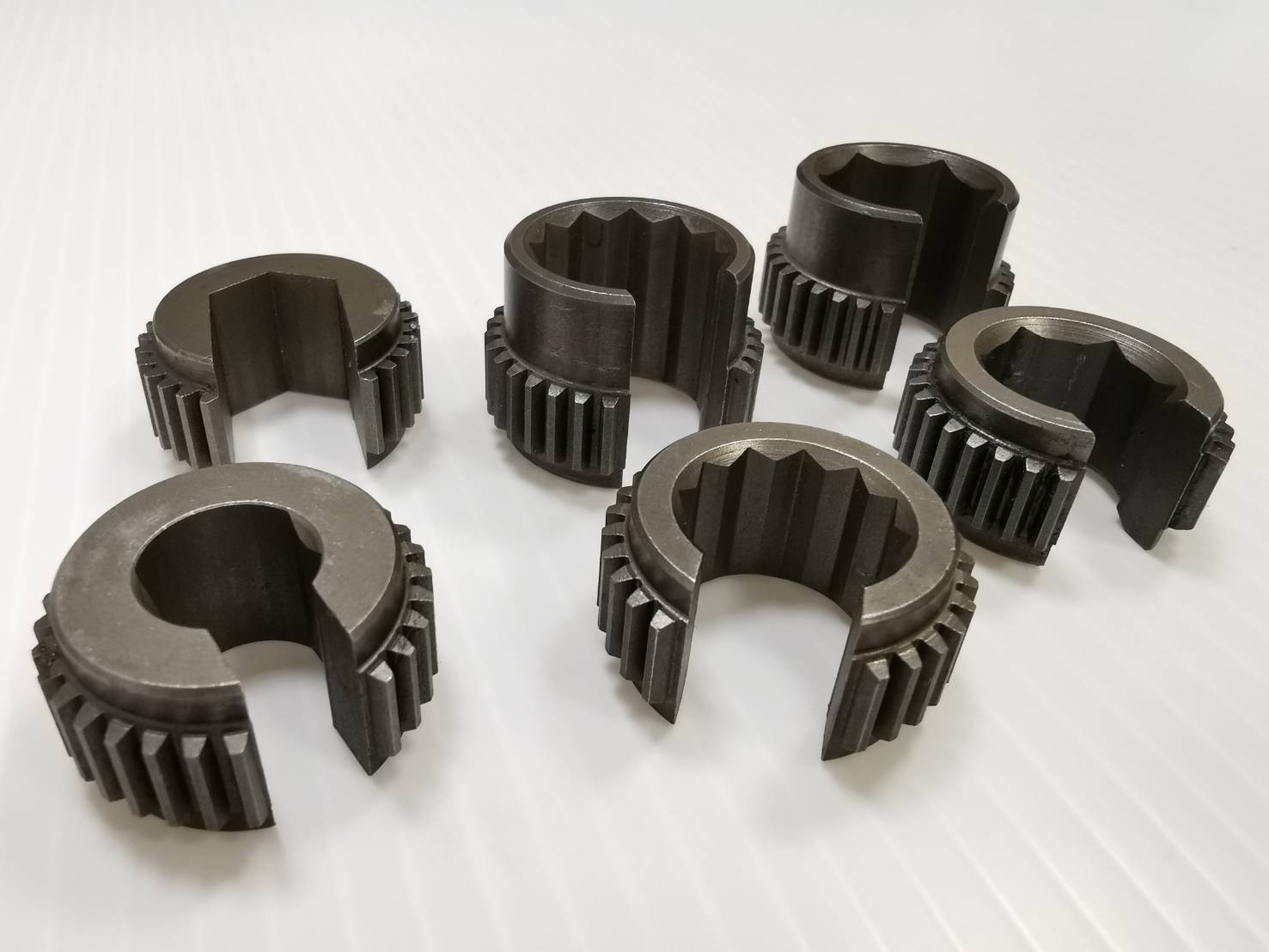

● Adjust wrench gear set angle
Application :
● Gas ramps in hobs, Boiler pipes, Bicycle brake cable,
Automobile industry, Pump power cord, Coffee machine pipes.
● External torque adjustment :
Turn right to increase and left to decrease.
● One button for easily releasing
● Open ratchet style can be customized
● Adjust wrench gear set angle
Application :
● Gas ramps in hobs, Boiler pipes, Bicycle brake cable,
Automobile industry, Pump power cord, Coffee machine pipes.
SPECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2 )
Packing List:
Carton : 6 PCS , N.W .: 12.54 KGS , G.W. : 15.6 KGS , CUFT : 1.1 "![](/web/upload/ckfinder/images/%E6%B0%A3%E5%8B%95%E9%96%8B%E5%8F%A3%E6%89%B3%E6%89%8B%E5%B0%BA%E5%AF%B8%E8%A1%A8-1.jpg)
![](/web/upload/ckfinder/images/%E6%B0%A3%E5%8B%95%E9%96%8B%E5%8F%A3%E6%89%B3%E6%89%8B%E5%B0%BA%E5%AF%B8%E8%A1%A8-2.jpg)
![](/web/upload/ckfinder/images/%E5%AE%8F%E6%96%8C%E5%AE%98%E7%B6%B2%E8%B7%91%E9%A6%AC%E7%87%88(%E9%9B%BB%E8%85%A6%E7%89%88)-5.jpg)
Applications
![](/web/upload/ckfinder/images/%E5%AF%A6%E9%9A%9B%E6%93%8D%E4%BD%9C.jpg)
Video
MODEL | Hex Szie | MAX. Torque |
Free Spped |
Air Consumption |
Overall Length |
Air Inlet |
Net Weight |
Sound Level |
||||
mm | Nm | rpm | l/min | cfm | mm | inch | P.T | kg | lb | dB(A) | ||
OP-EW32 | 24,26,27,29,30,32 | 12 ~ 24 | 115 | 198 | 7 | 461 | 18.14 | 1/4 | 2.09 | 4.6 | 87 |
Packing List:
Carton : 6 PCS , N.W .: 12.54 KGS , G.W. : 15.6 KGS , CUFT : 1.1 "
![](/web/upload/ckfinder/images/%E6%B0%A3%E5%8B%95%E9%96%8B%E5%8F%A3%E6%89%B3%E6%89%8B%E5%B0%BA%E5%AF%B8%E8%A1%A8-1.jpg)
![](/web/upload/ckfinder/images/%E6%B0%A3%E5%8B%95%E9%96%8B%E5%8F%A3%E6%89%B3%E6%89%8B%E5%B0%BA%E5%AF%B8%E8%A1%A8-2.jpg)
![](/web/upload/ckfinder/images/%E5%AE%8F%E6%96%8C%E5%AE%98%E7%B6%B2%E8%B7%91%E9%A6%AC%E7%87%88(%E9%9B%BB%E8%85%A6%E7%89%88)-5.jpg)
Applications
![](/web/upload/ckfinder/images/%E5%AF%A6%E9%9A%9B%E6%93%8D%E4%BD%9C.jpg)
Video
