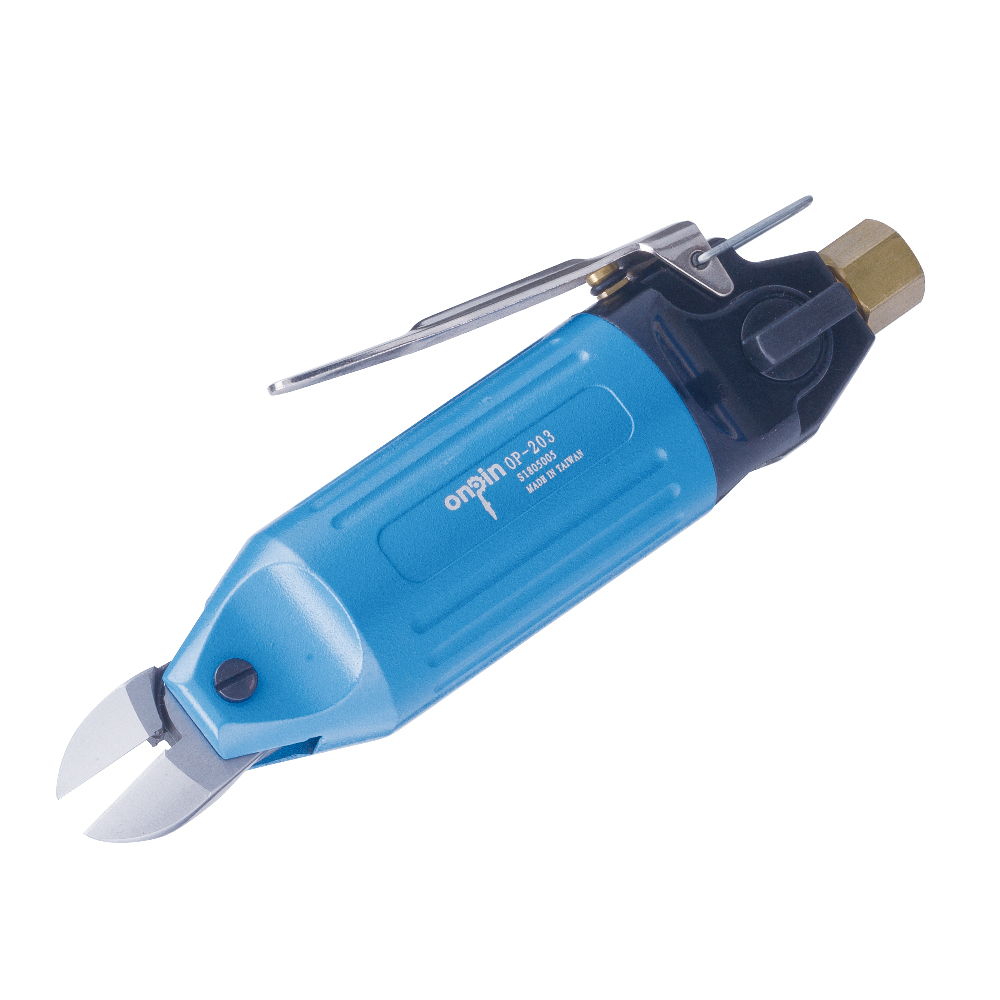

OP-203

●Air cutting nipper：
copper, iron, plastic, leather, mats, refrigerant, electric tube, glass fiber 、injection molding foot, parts angle, IC / copper feet, transformers / copper, communications / capacitors, motherboards, refrigerant, chips

●Air Terminal Crimper :
for the terminal crimping special tools (bare terminals, insulated terminals, closed terminals, etc.), for computers, refrigerators, air conditioners, electrical appliances, electronics industry ... for crimping terminals, wiring, connectors
Manual download
Add to inquiry
Share to：
SPECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2)
MODEL Cutting Capacity Diameter Housing
Diameter		 Air
Consumption		 Overall
Length		 Air Inlet Net
Weight		 Blade
Copper(mm) Iron(mm) Φmm l/min cfm mm inch P.T kg lb
OP-203 2.6 2.0 46 112 4 200 7.87 1/4 0.49 1.08 S5

Packing :

Carton : 20 PCS / N.W. : 7 KGS / G.W. : 11 KGS / CUFT : 1.1"

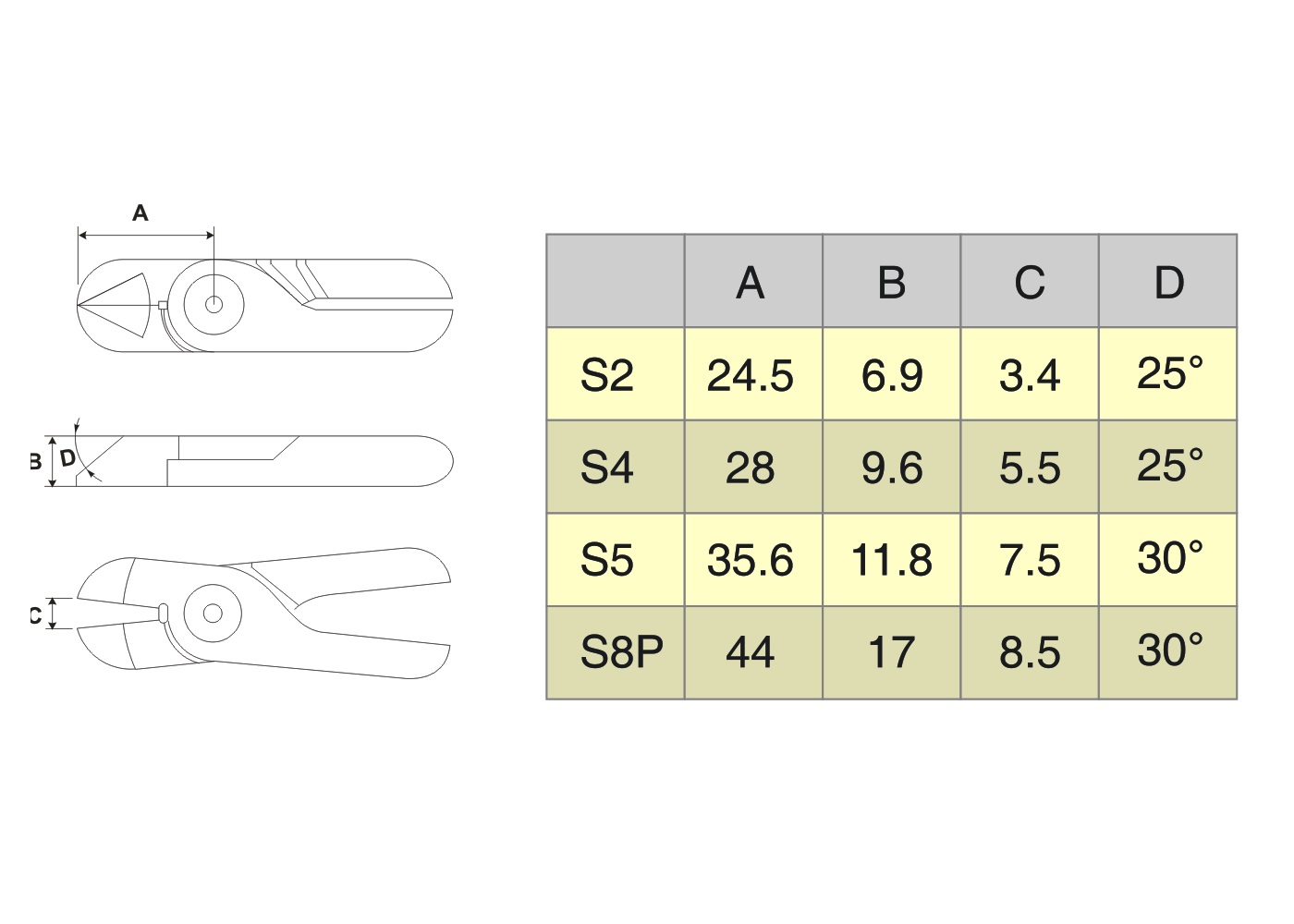

Blade Series

Blade Model Capacity (mm) Body Model Order Code
Copper Wire Iron Wire
S2 1.0 0.5 OP-201 OP-201
S4 1.6 1.0 OP-202 OP-202
S5 2.6 2.0 OP-203 OP-203
3.0 2.4 OP-204 OP-204
S8P 3.3 2.8 OP-205 OP-205
4.8 4.0 OP-206 OP-206

Plastic Cutting Blade
Blade Model Capacity (mm) Body Model Order Code
Soft Plastics Hard Plastics
FD-2 2.0 - OP-201 OP-201FD
FD-4 4.0 2.6 OP-202 OP-202FD
FD-6 5.0 4.0 OP-203 OP-203FD
7.0 4.0 OP-204 OP-204FD
FD-8 10.0 6.5 OP-205 OP-205FD
OP-206 OP-206FD

Non-insulated Terminal
Blade Model Capacity (sq) Body Model Order Code
A5P 1.25sq OP-203 OP-203A5P
OP-204 OP-204A5P
A7WP-3 1.25~2.0~5.5sq OP-205
OP-206		 OP-205A7WP3
OP-206A7WP3
A7P 8.0sq OP-206 OP-206A7P

Insulated Terminal
Blade Model Capacity (sq) Body Model Order Code
AR5P 1.25sq OP-203
OP-204		 OP-203AR5P
OP-204AR5P
AR7WP 1.25~2.0sq、2.0~5.5sq OP-205
OP-206		 OP-205AR7WP
OP-206AR7WP
AR7P 8.0sq OP-206 OP-206AR7P
