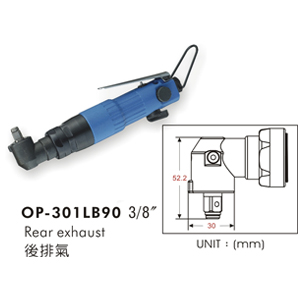

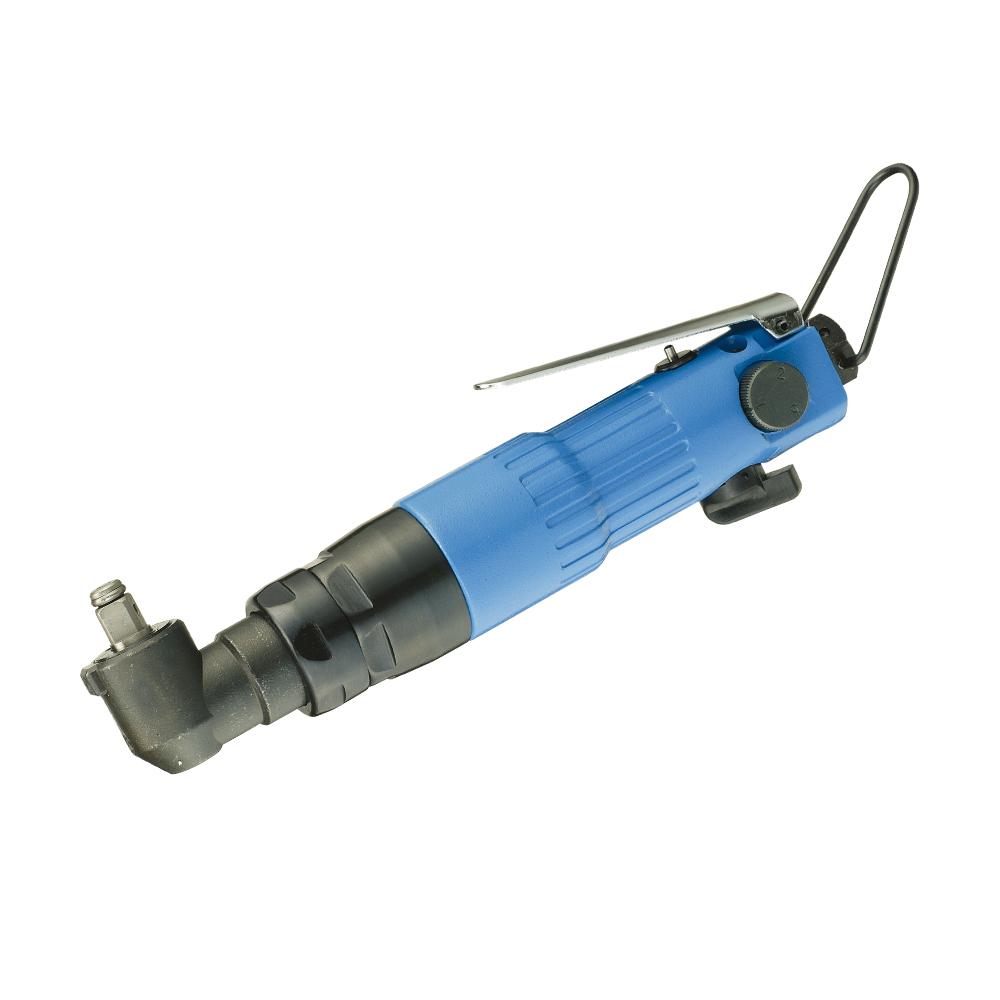

Specifications: OP-301LB90: Rear exhaust
(1) High attack frequency.
(2) Low counteraction.
Application: Apply to release or fasten the small-size especially in heavy-productive assembly lines of motor-vehicle, bicycle, and motor.
| MODEL | Bolt Size Capacity |
Working Torque |
MAX. Torque |
Free Speed |
Air Consumption |
Overall Length |
Air Inlet |
Net Weight |
Sound Level |
|||||
| mm |
Nm | ft-lb | Nm | ft-lb | rpm | l/min | cfm | mm |
inch | P.T |
kg | lb | dB(A) | |
| OP-301LB90 | M6 | 17 | 13 | 40 | 30 | 9000 | 141 | 5 | 240 | 9.45 | 1/4 | 1.22 | 2.69 | 83 |
