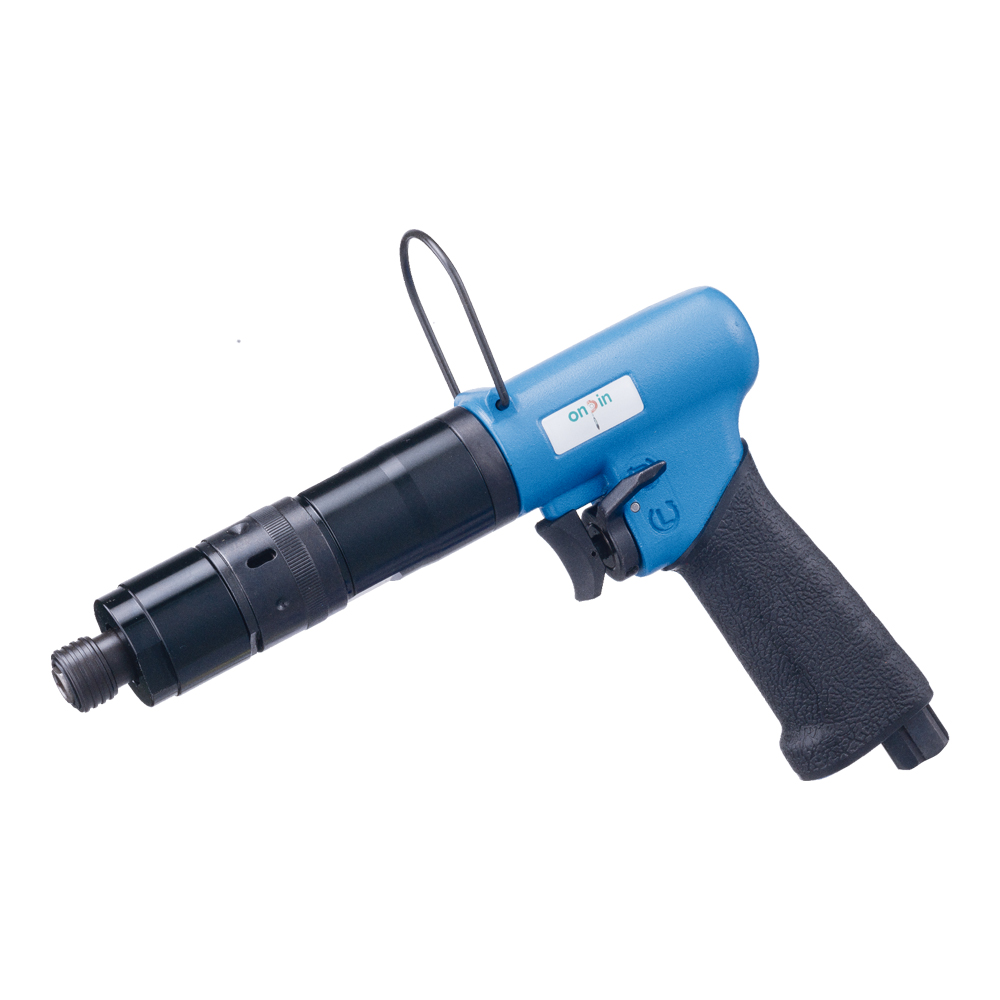

OP-5S5103
● Accuracy ±3%
● One hand operation forward and reverse
● low noise, low vibration and high accuracy.
● Lever Start
● External torque adjustment
Turn right to increase and left to decrease
Application:
This air screwdrivers normally apply to release or fasten heavy-precise screws and especially to industry assembly lines such as computer, instrument, electronics, plastics and small, light parts.
● One hand operation forward and reverse
● low noise, low vibration and high accuracy.
● Lever Start
● External torque adjustment
Turn right to increase and left to decrease
Application:
This air screwdrivers normally apply to release or fasten heavy-precise screws and especially to industry assembly lines such as computer, instrument, electronics, plastics and small, light parts.
SPECIFICATION(air pressure at 90 psi、6.2bar、6.3kg/cm2)
| MODEL | Screw Size Capacity |
MAX. Torque |
Free Speed |
Air Consumption |
Overall Length |
Air Inlet |
Net Weight |
Sound Level |
Bits Type |
|||
| mm | Nm | rpm | l/min | cfm | mm | inch | P.T | kg | lb | dB(A) | Type | |
| OP-5S5103 | 5 ~ 6 | 4.5 ~ 10 | 390 | 198 | 7 | 224 | 8.01 | 1/4 | 1.15 | 2.53 | 80 | F |
Packing List :
Full Carton : 10 Pcs / N.W : 11.5 KGS / G.W : 14.2 KGS / CUFT : 1.1 "
